Lexicon Lambda User Manual

Recording Using the Microphone/Line Input

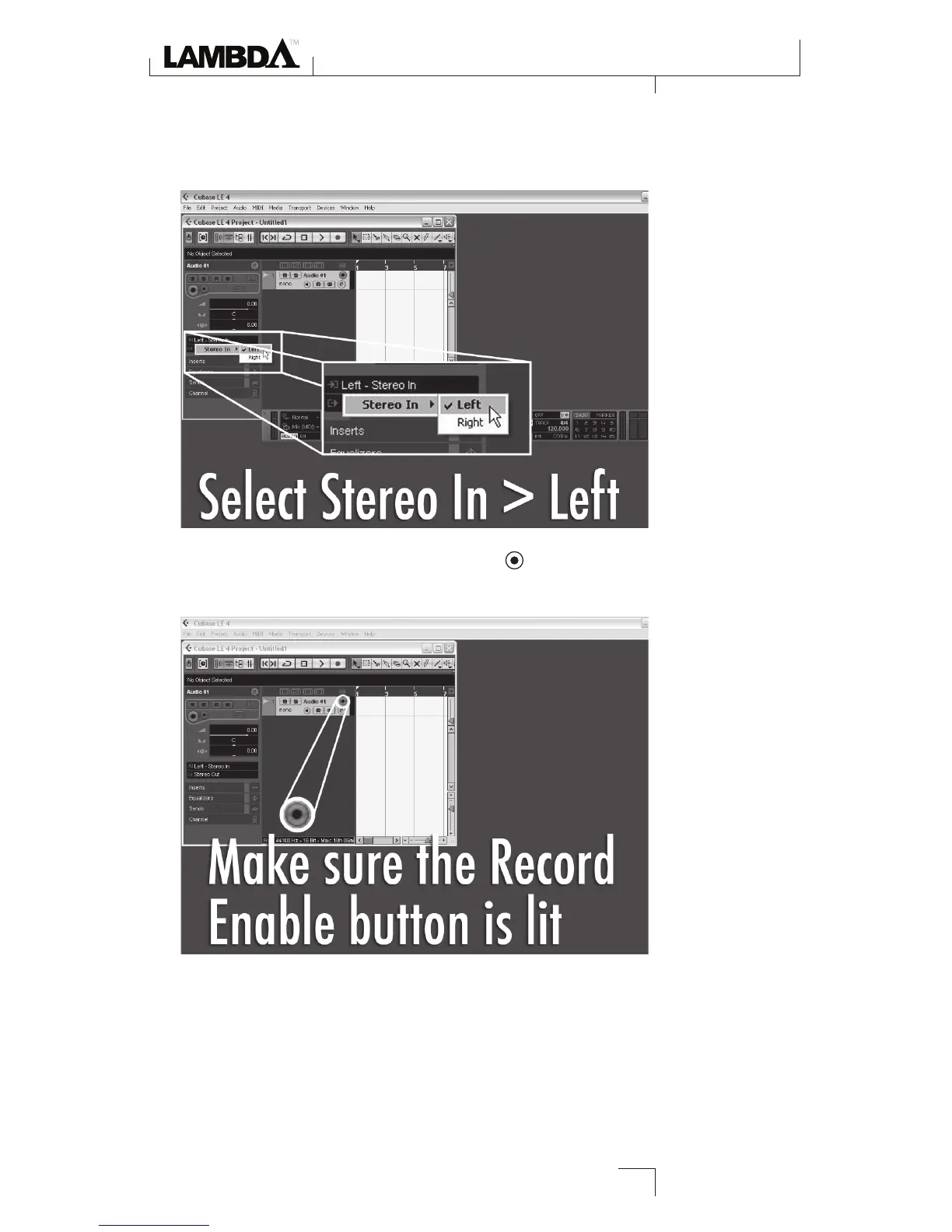

3. In the Inspector, click the Left - Stereo In box and select Stereo In - Left for
the track input source. (Stereo In - Left relates to Line 1/Inst/Mic 1, Stereo In
- Right relates to Line 2/Mic 2 inputs.)
4. In the Audio 01 window, the Record Enable button should already be red.
If it isn't, click it so that it turns red.
21

Lexicon Lambda Specifications

General

Type	USB Audio Interface
Phantom Power	Yes
Sample Rate	44.1kHz, 48kHz
Bit Depth	24-bit
Mic Preamps	2
USB	USB 1.1
Inputs	4 (2 XLR/TRS combo, 2 line)
MIDI I/O	Yes (1 in, 1 out)
Outputs	2 x TRS
