Getting Started
Lexicon
1-4
1. Clip and Level LEDs
Indicate incoming signal levels. The Level LEDs do
not light when the incoming signal is more than
30dB below overload. The Clip LEDs light red when
the signal approaches overload (-2.5dB). When a
signal level is acceptable, the Level LEDs light green
almost continuously and the Clip LEDs flash red on
the loudest passages. See page 1-10 for more
information about setting audio levels.
2. Input
Sets the level of the incoming signal. The Clip and
Level LEDs indicate acceptable signal levels.
3. Mix
Controls the ratio of processed (Wet) to unprocessed
(Dry) audio signals.

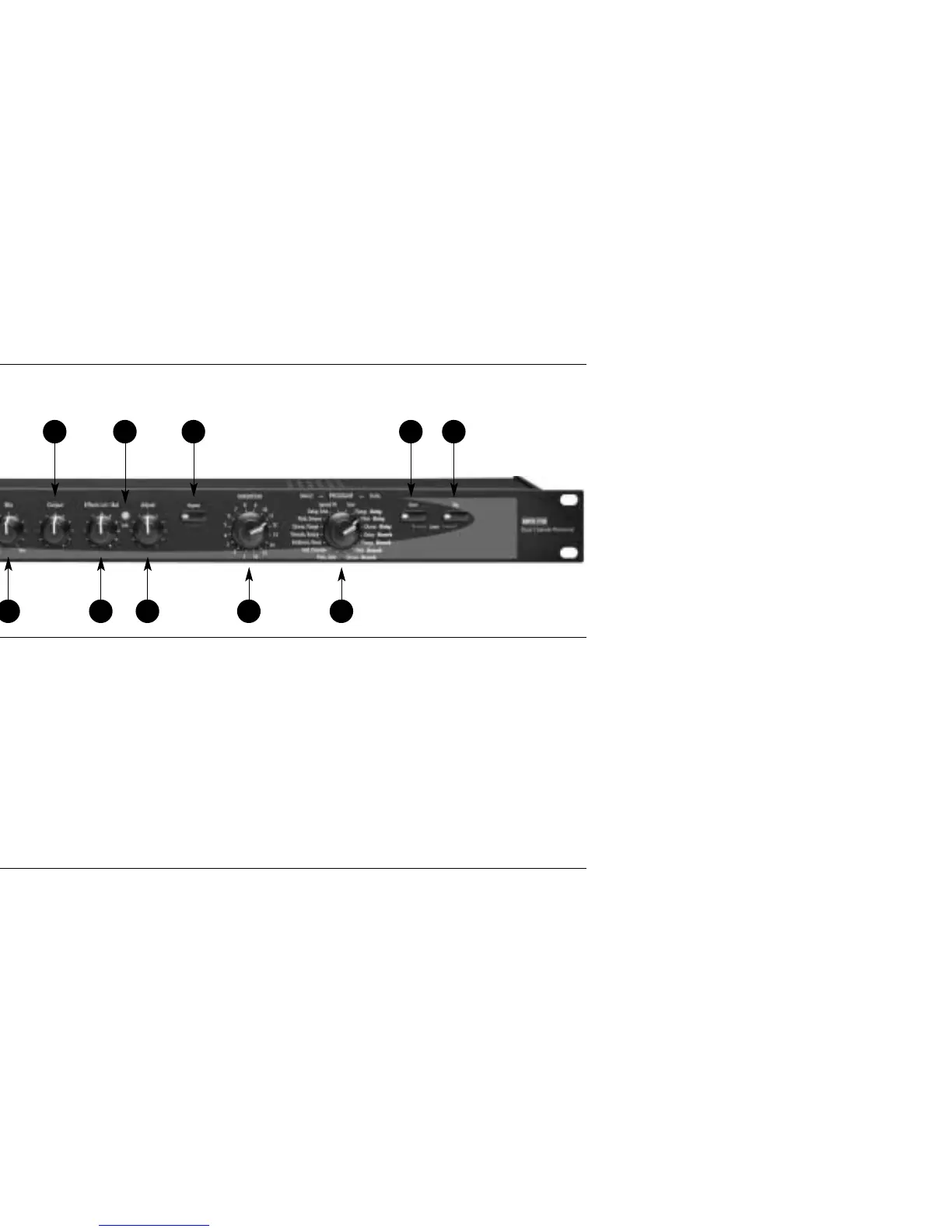

FRONT PANEL OVERVIEW
1 2
3 5 7 9 10
4 6 8 11 12
