5 Remove the toner cartridge.
6 Remove the imaging unit.
7 Remove the MPF feeder lift plate. See “MPF feeder lift plate removal” on page 397.
8 Remove the media turn guide. See “Media turn guide removal” on page 394.
9 Remove the media vertical guide. See “Media vertical guide removal” on page 395.
10 Remove the duplex exit diverter. See “Duplex exit diverter removal” on page 381.
11 Remove the inner guide deflector. See “Inner guide deflector removal” on page 384.
12 Remove the media aligner roller. See “Media aligner roller removal” on page 392.

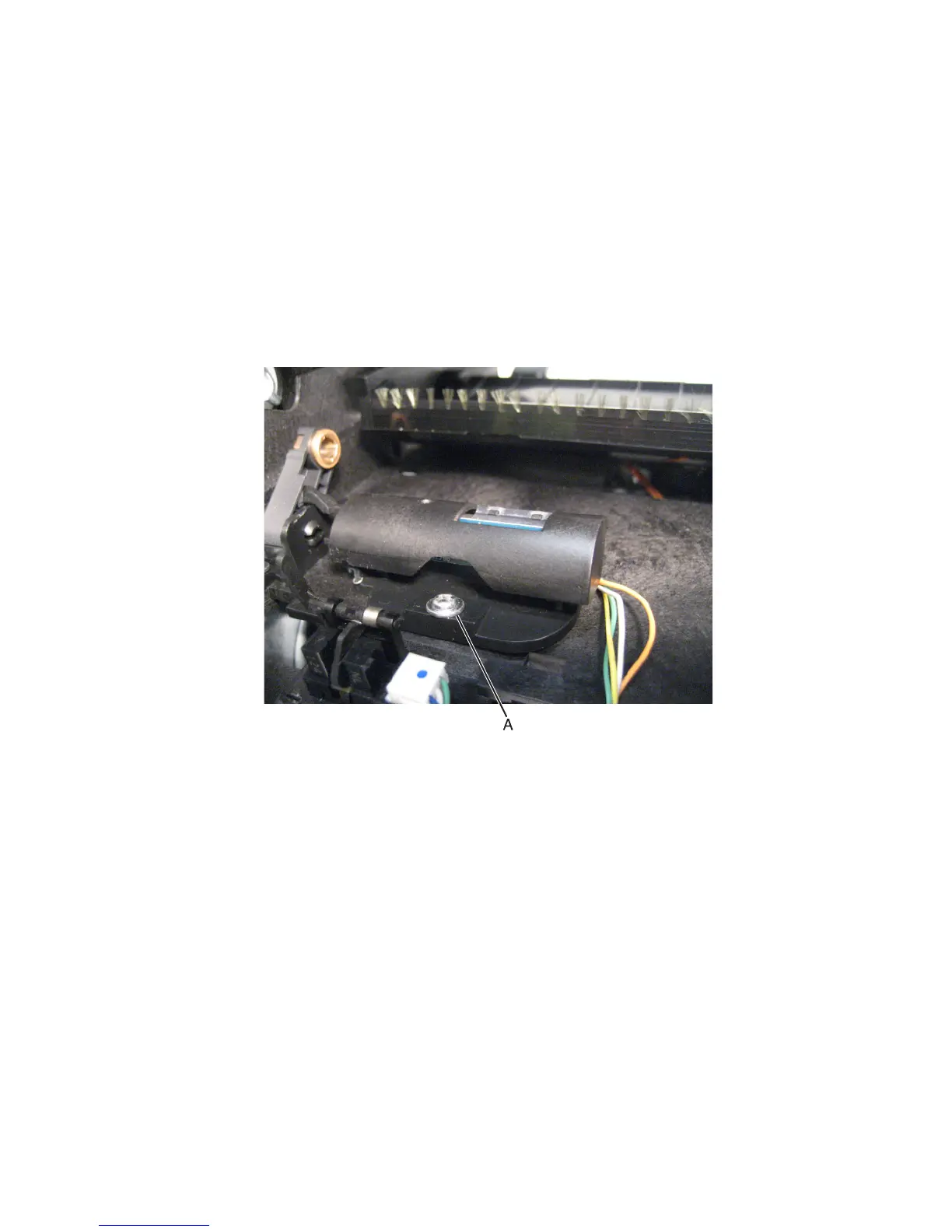

13 Remove the screw (A) securing the sensor (toner density) to the machine.
14 Gently lift and remove the sensor (toner density).
4063
Repair information
409
