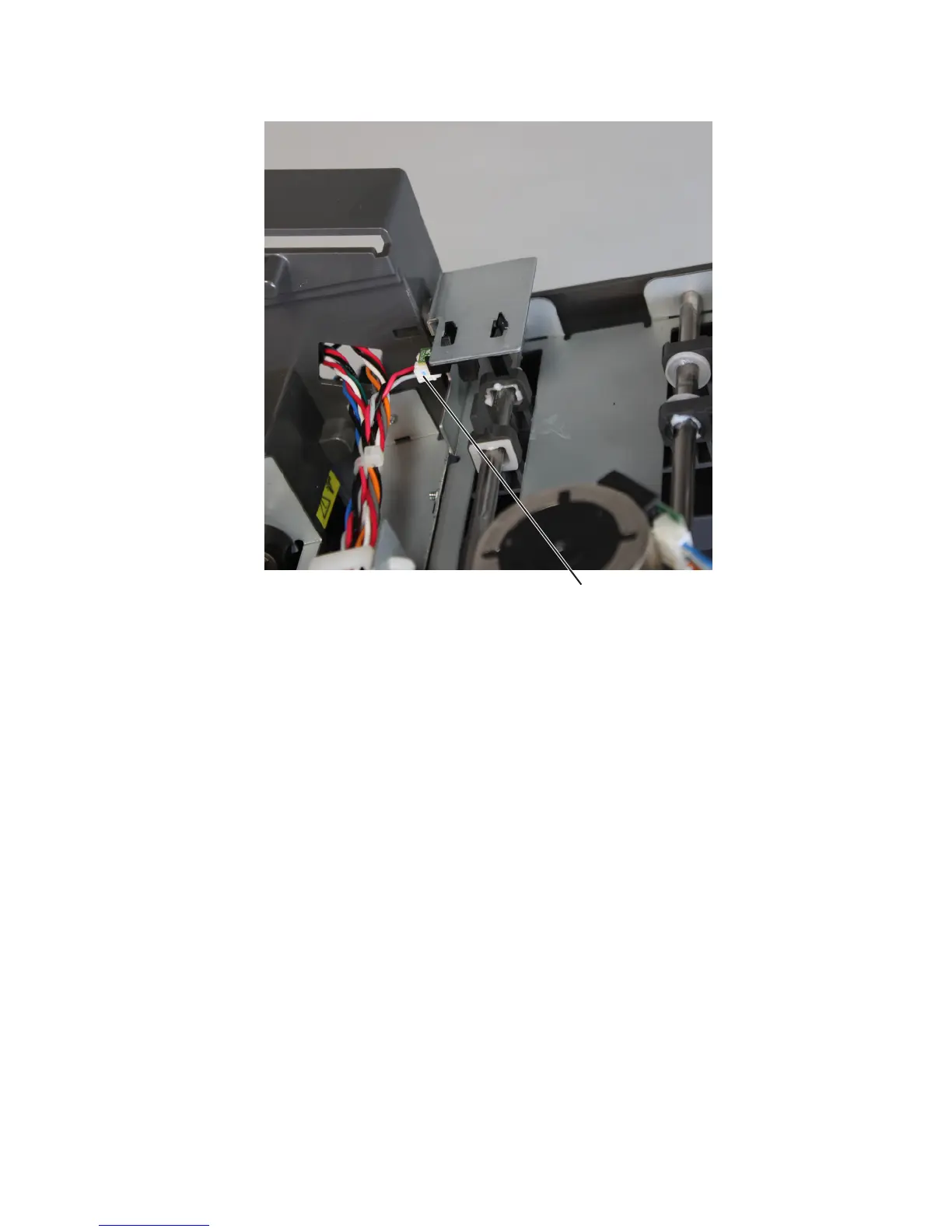

5 Disconnect the cable (B) from the sensor, and then release the latches securing the sensor to the frame.
B
6 Pull the sensor off the frame and remove.
Sensor (left tamper motor HP) removal
1 Remove the stapler left cover. See “Stapler left cover removal” on page 630.
2 Remove the stapler right cover. See “Stapler right cover removal” on page 624.
3 Remove the stapler top cover. See “Stapler top cover removal” on page 635.
4063
Repair information
649
