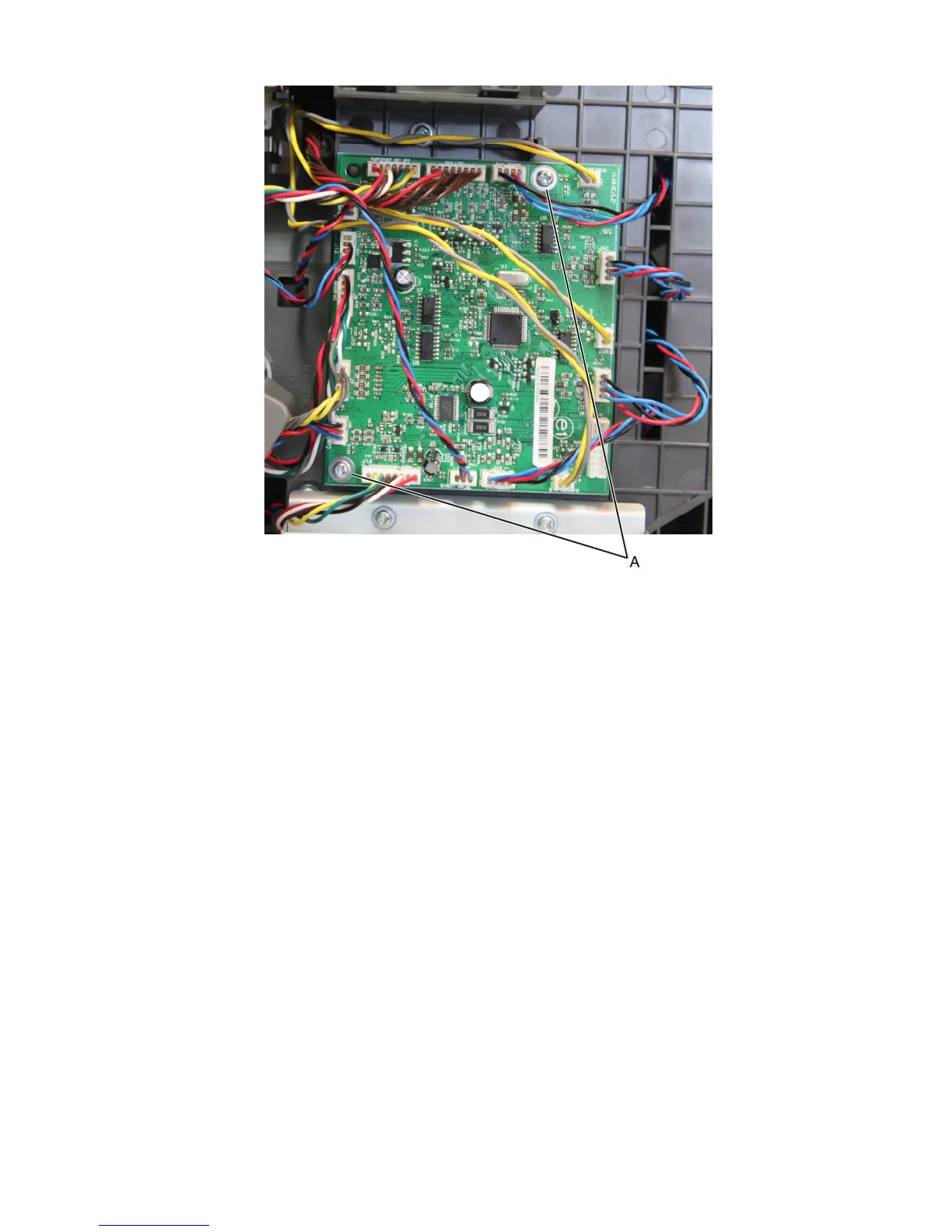

4 Remove the controller PCBA.
Sensor (mailbox diverter plunger HP) removal
1 Remove the mailbox top cover. See “Mailbox top cover removal” on page 688.
2 Remove the mailbox left cover. See “Mailbox left cover removal” on page 696.
4063
Repair information
708
