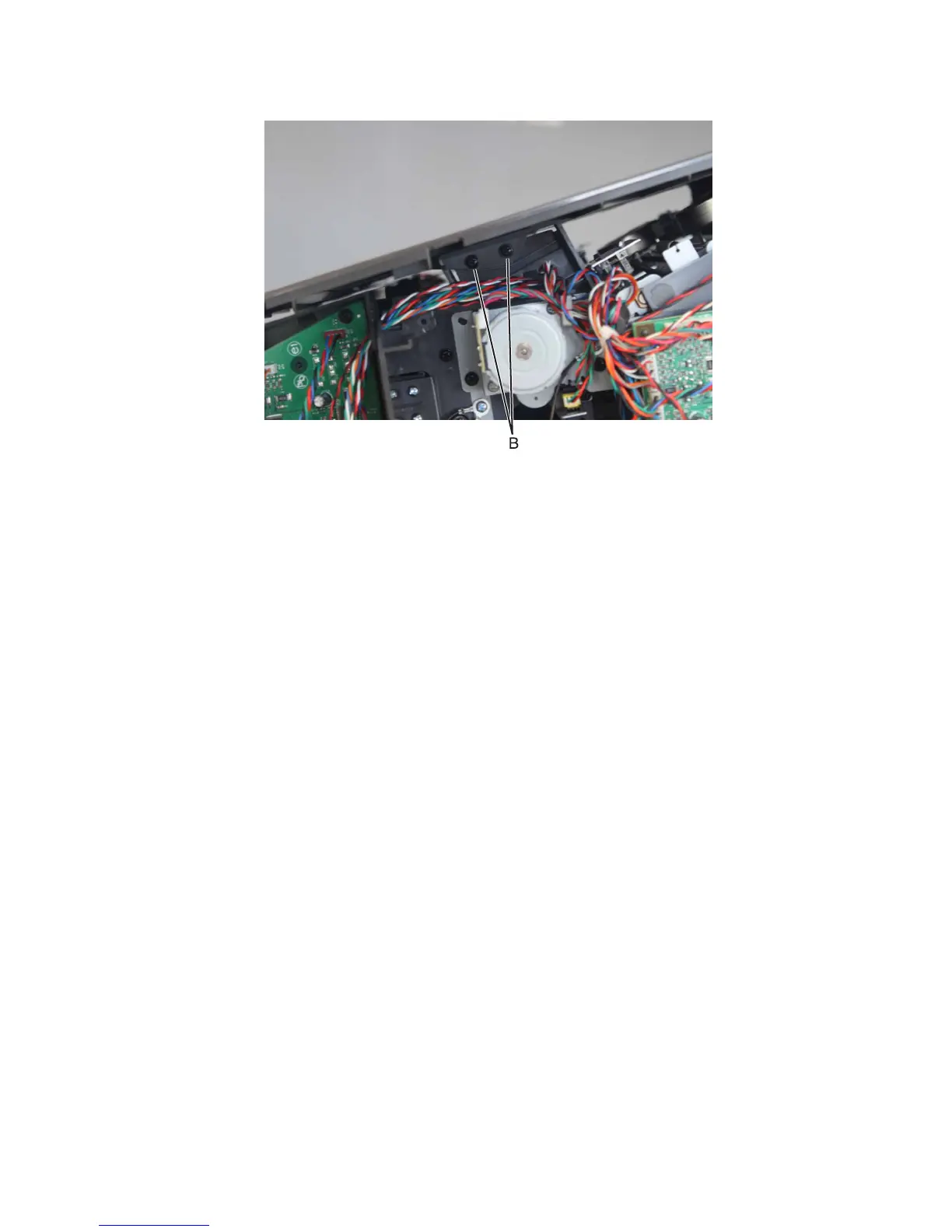

4 Remove the two screws (B) from the left side of the finisher.
5 Pull the top cover off the finisher, and remove.
Sensor (right tamper motor HP) removal
1 Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 739.
2 Remove the finisher right cover. See “Staple, hole punch right cover removal” on page 741.
3 Remove the finisher top cover. See “Staple, hole punch top cover removal” on page 762.
4063
Repair information
763
