Note: Pay attention to the original position of the belts.
Warning—Potential Damage: Do not lose any dislodged washers.
HCOE diverter plunger assembly removal
1 Remove the HCOE rear door. See “HCOE rear door removal” on page 585.
2 Remove the HCOE left cover.See “HCOE left cover removal” on page 589.

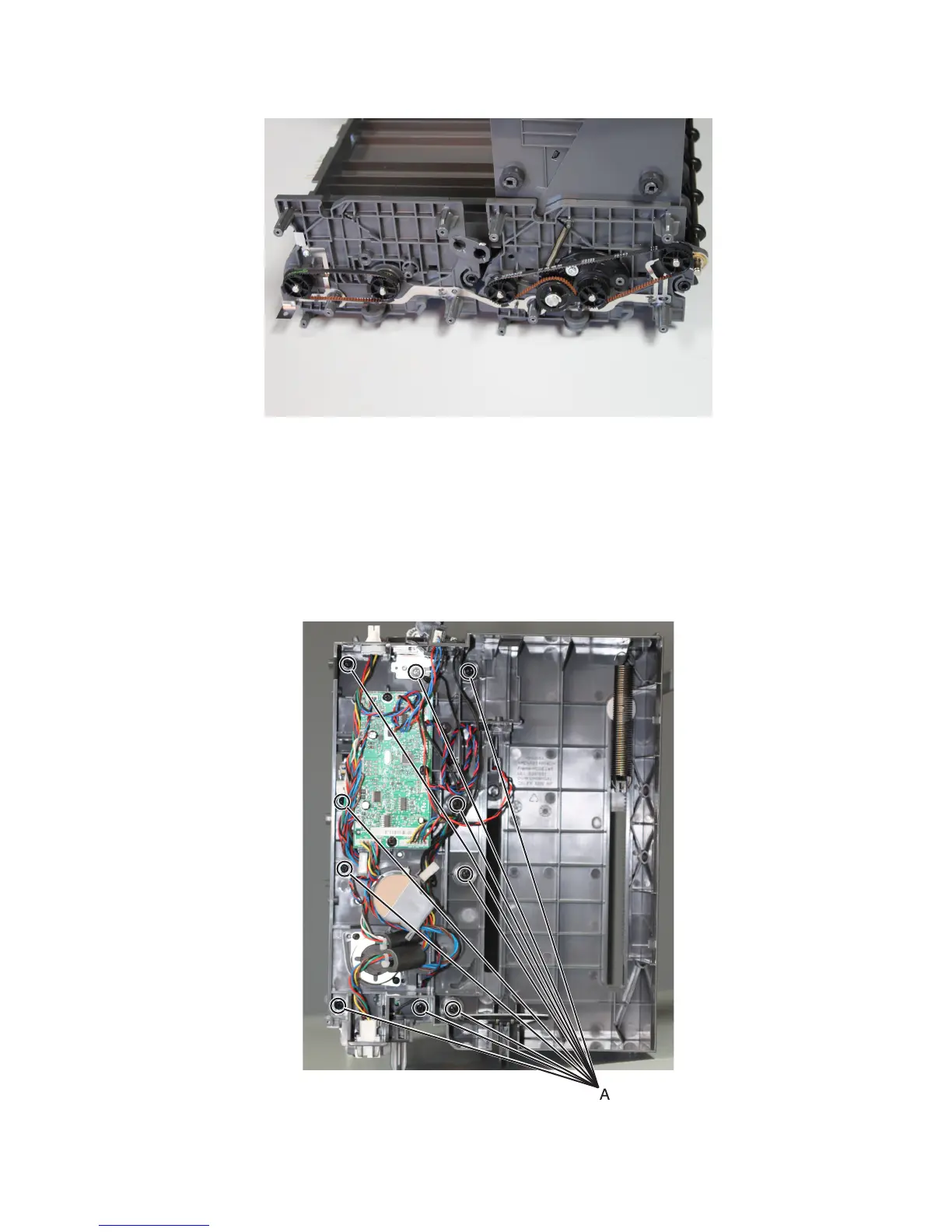

3 Remove the 10 screws (A) from the inner left frame.
4063
Repair information
604
