Lexmark M5150 - HCOE Main Motor Removal

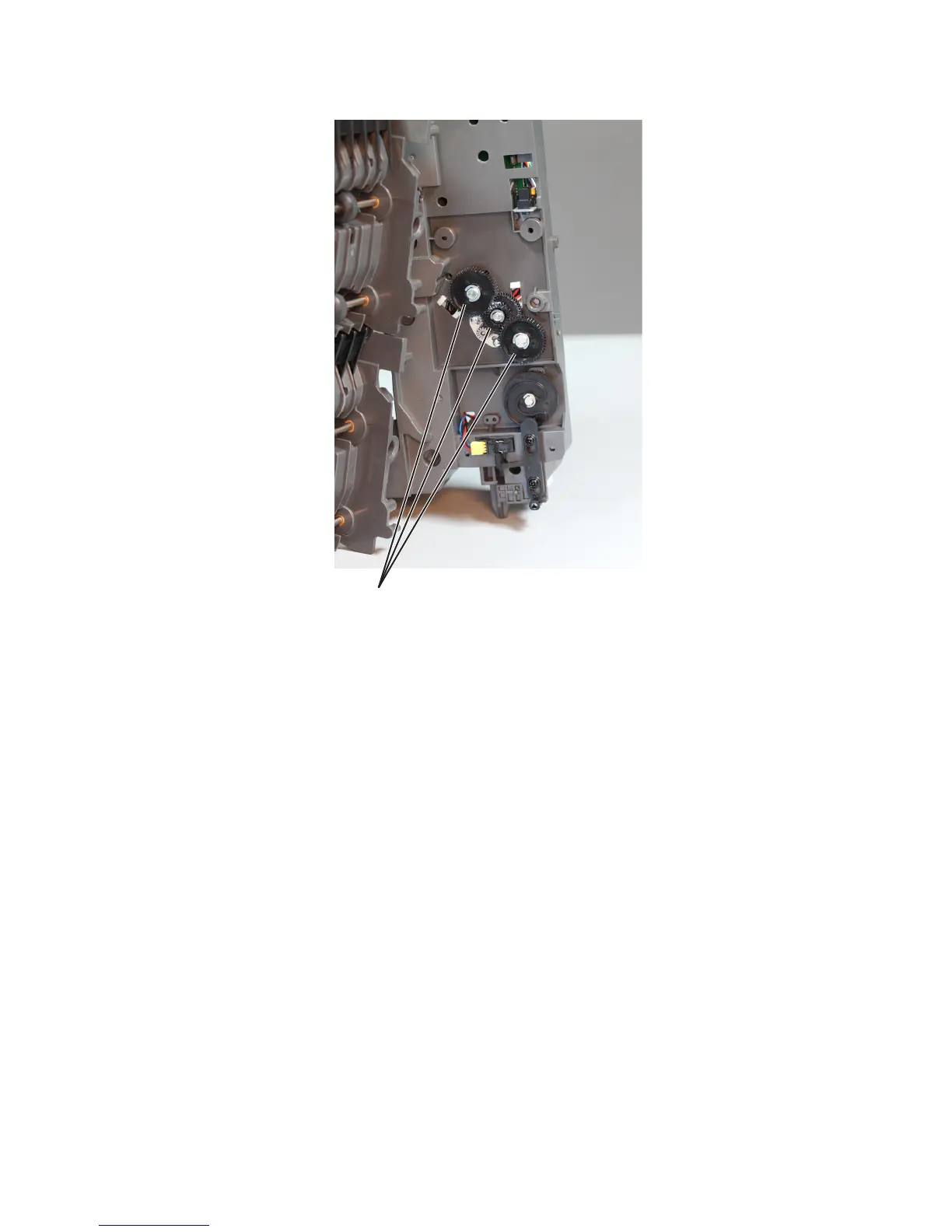

5 Remove the three E-clips securing the gears (B).
B
6 Pull off the gears, and remove.
HCOE main motor removal
1 Remove the HCOE rear door. See “HCOE rear door removal” on page 585.
2 Remove the HCOE left cover. See “HCOE left cover removal” on page 589.
3 Disconnect the main motor cable from the controller board.
4063
Repair information
607
