Staple, hole punch lower interface cable removal
1 Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 739.
2 Unplug the connector (J15) from the stapler controller PCBA.

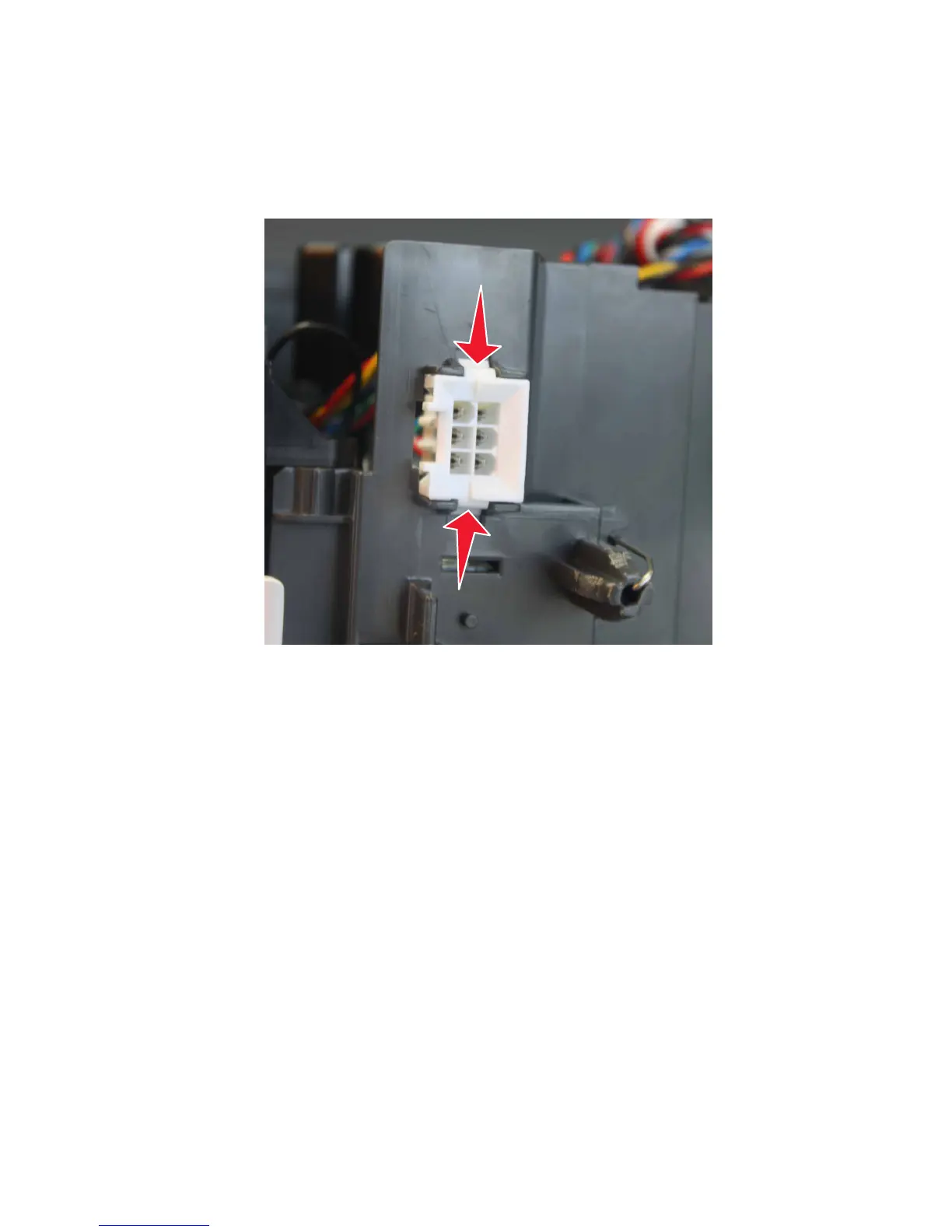

3 From the bottom of the finisher, release the latches, and then push connector off its slot.
4 Remove the interface cable.
Media pusher assembly removal
1 Remove the finisher left cover. See “Staple, hole punch left cover removal” on page 739.
2 Disconnect the cable J17 from the stapler controller PCBA.
