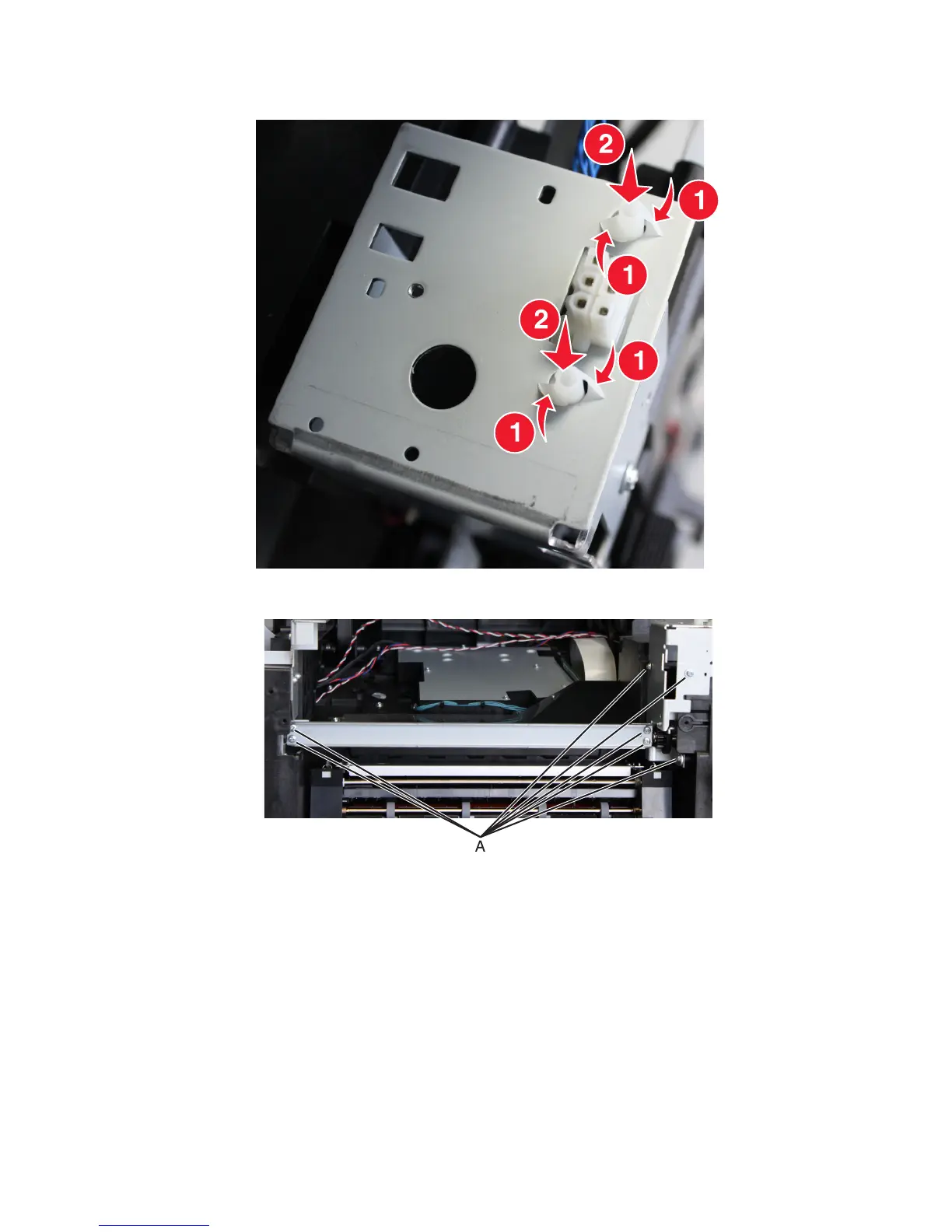

7 Remove the auto connector cable from the upper redrive motor bracket.
8 Remove the seven screws (A) securing the upper redrive motor bracket.
9 Disconnect the REDRIVE J104 cable from the controller board.
4063
Repair information
470
