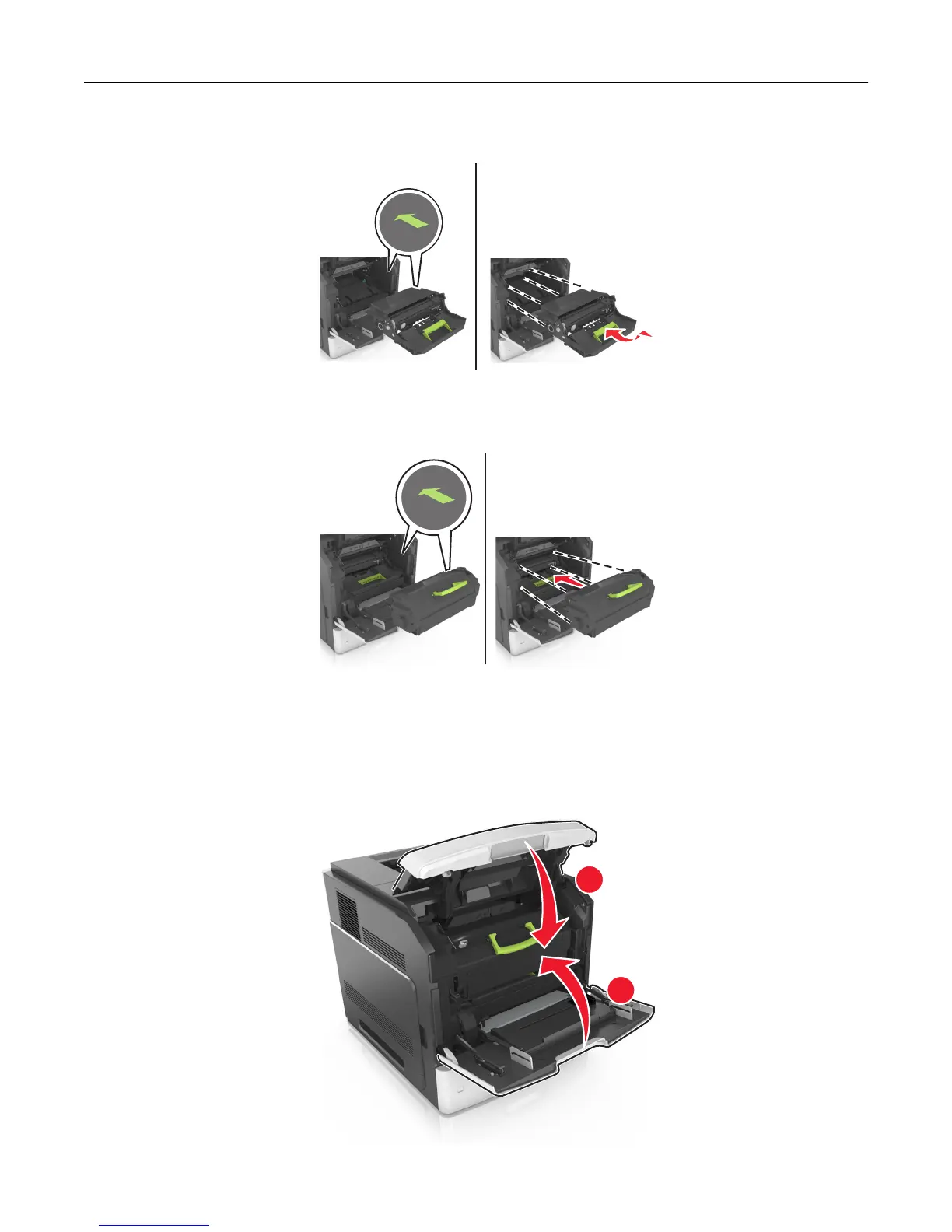

7 Install the imaging unit.
Note: Use the arrows on the side of the printer as a guide.
8 Insert the cartridge into the printer, and then push the green handle back into place.
Notes:
• Align the arrows on the guides of the toner cartridge with the arrows in the printer.
• Make sure the cartridge is fully pushed in.
9 Close the multipurpose feeder door and the front cover.
2
1
Clearing jams 267
