1-1. For safe use
For safety and security
■

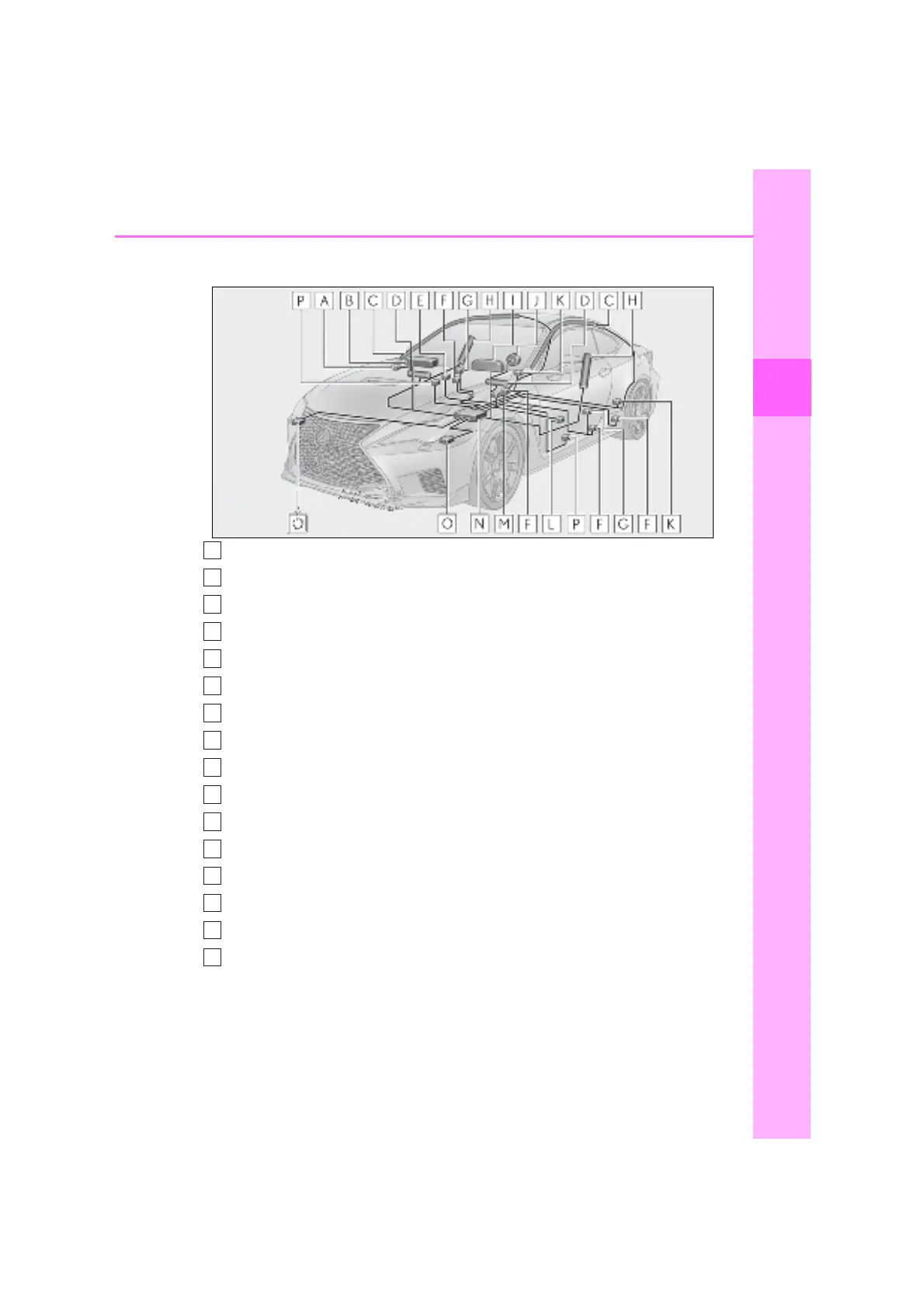

SRS airbag system components
Airbag manual on-off switch (if equipped)
Front passenger airbag
Curtain shield airbags
Knee airbags
“PASSENGER AIR BAG” indicator lights (if equipped)
Seat belt pretensioners and force limiters
Side impact sensors (front)
Front side airbags
SRS warning light
Driver airbag
Side impact sensors (rear)
Driver’s seat position sensor
Driver’s seat belt buckle switch
Airbag sensor assembly
Front impact sensors
Side impact sensors (front door)
The main SRS airbag system components are shown above. The SRS airbag sys-
tem is controlled by the airbag sensor assembly. As the airbags deploy, a chemical
reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain
the motion of the occupants.
