7-2. Panoramic view monitor
7
Peripheral monitoring system
Parts of objects which extend above a certain height cannot be displayed on
the screen.
● As the images obtained from four cameras are processed and displayed on the standard
of a flat road surface; the panoramic view/moving view/see-through view/Side Clearance
View/Cornering View may be displayed as follows.
• Objects may look collapsed; thinner or bigger than usual.
• An object with a higher position than the road surface may look farther away than it actu-
ally is or may not appear at all.
• Tall objects may appear protruding from the non-displayed areas of the image.
● Variations in the brightness of the image may appear for every camera.
● The displayed image may be shifted by inclination of the vehicle body, change in vehicle
height, etc., depending on the number of passengers, amount of luggage, fuel quantity,
etc.
● If the front doors or back door are not completely closed; neither the image nor the guide
lines are displayed.
● The position relations of the vehicle icon and the road surface or obstacle may differ from
the actual positions.
● The black areas of the vicinity of the vehicle icon are areas that are not captured by the
camera.

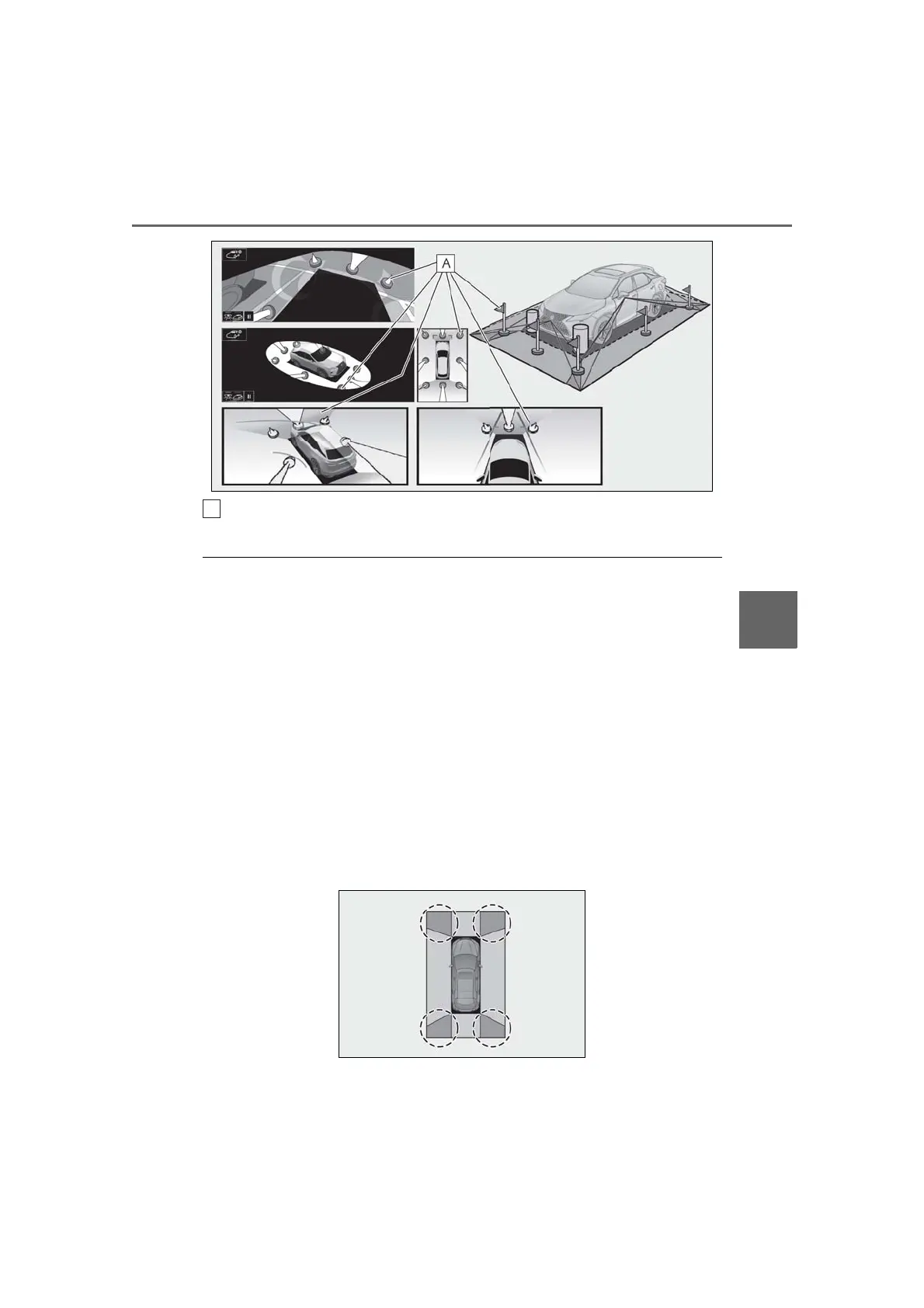

● Images like the following are combined, thus some areas may be difficult to view.
