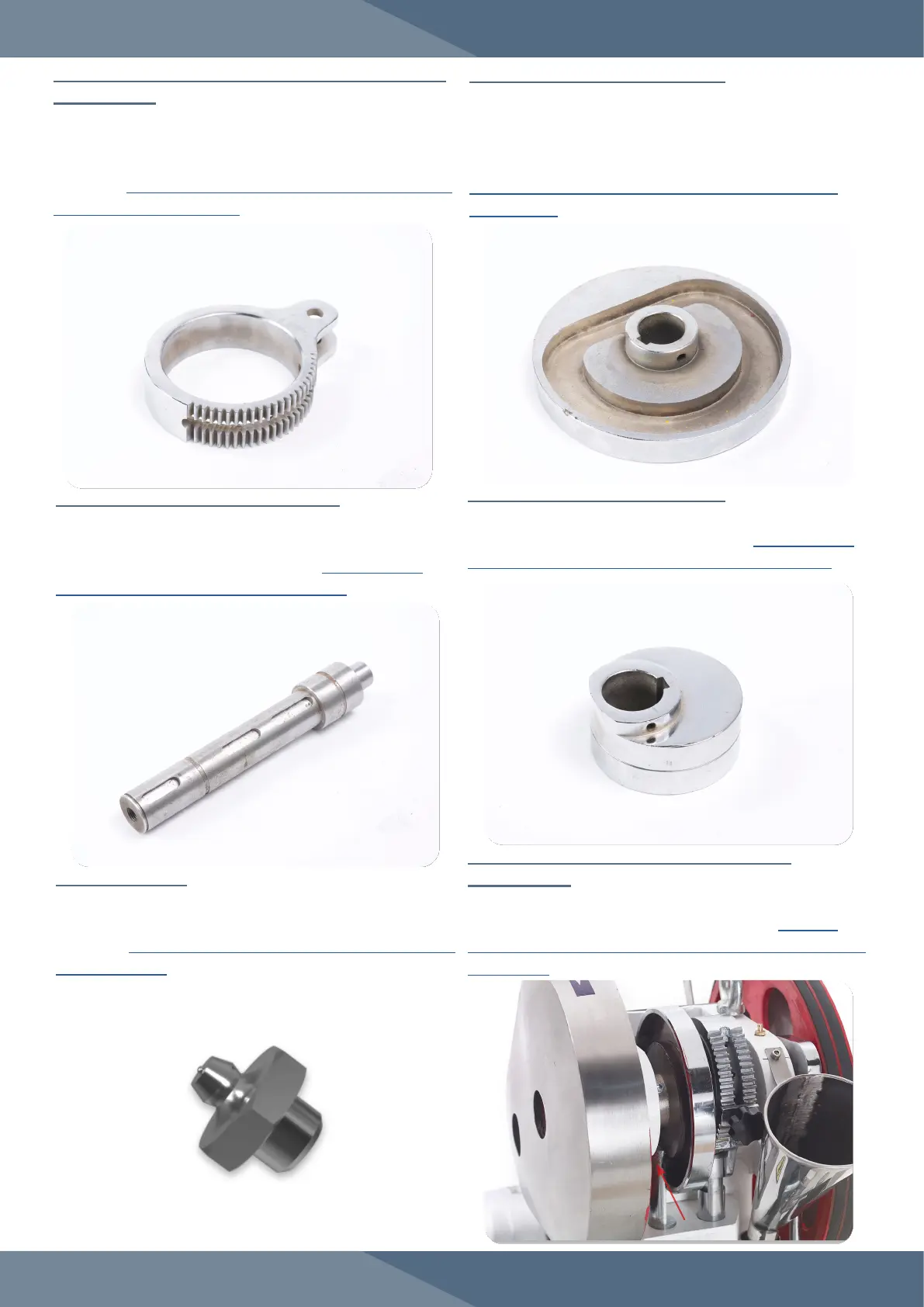

Boot Timing Cam (#AFC0038)
The Boot Timing Cam is responsible for the
movement of the Boot Timing Bar, which allows
the Boot to fill the Die bore with the dry granular
materials needed to form the tablet. Order at
https://www.lfatabletpresses.com/tdp6s-boot-
timing-cam
Top Cam Drive Shaft (#AFC0037)
All other TDP 6s
®
parts are connected to the
Top Cam Drive Shaft. As it is turned, all the
parts of TDP 6s
®
move. Order at https://www.
lfatabletpresses.com/tdp6s-top-cam
Eccentric Sheave Strap/Pressure Adjustment
(#AFC0004)
The Eccentric Sheave Strap/Pressure Adjustment
allows the Upper Drift Pin Assembly to be moved
up and down to adjust the punch pressure.
Order at https://www.lfatabletpresses.com/tdp6s-
eccentric-sheave-strap
Eccentric Sheave (#AFC0033)
The Eccentric Sheave controls the timing of the
Upper Drift Pin Assembly. Order at https://www.
lfatabletpresses.com/tdp6s-eccentric-sheave
Grease Nipples
Grease Nipples are grease cap points that
grease the TDP 6s
®
’s gaps with high pressure.
Order at https://www.lfatabletpresses.com/tdp6s-
grease-nipple
Lower Drift Pin Assembly Timing Rod
(#AFC0014)
The Lower Assembly Timing Rod raises the
finished tablet out of the Die. Order at https://
www.lfatabletpresses.com/tdp6s-lower-assembly-
timing-rod
