CONTROLLING THE MULTIPLE PRODUCT
Use this method to connect several products to a single PC. You can control several products at one time by
connecting them to a single PC.
In the Option menu, Set ID must be between 1 and 255 (or from 1 to 1000) without being duplicated.
Connecting the cable

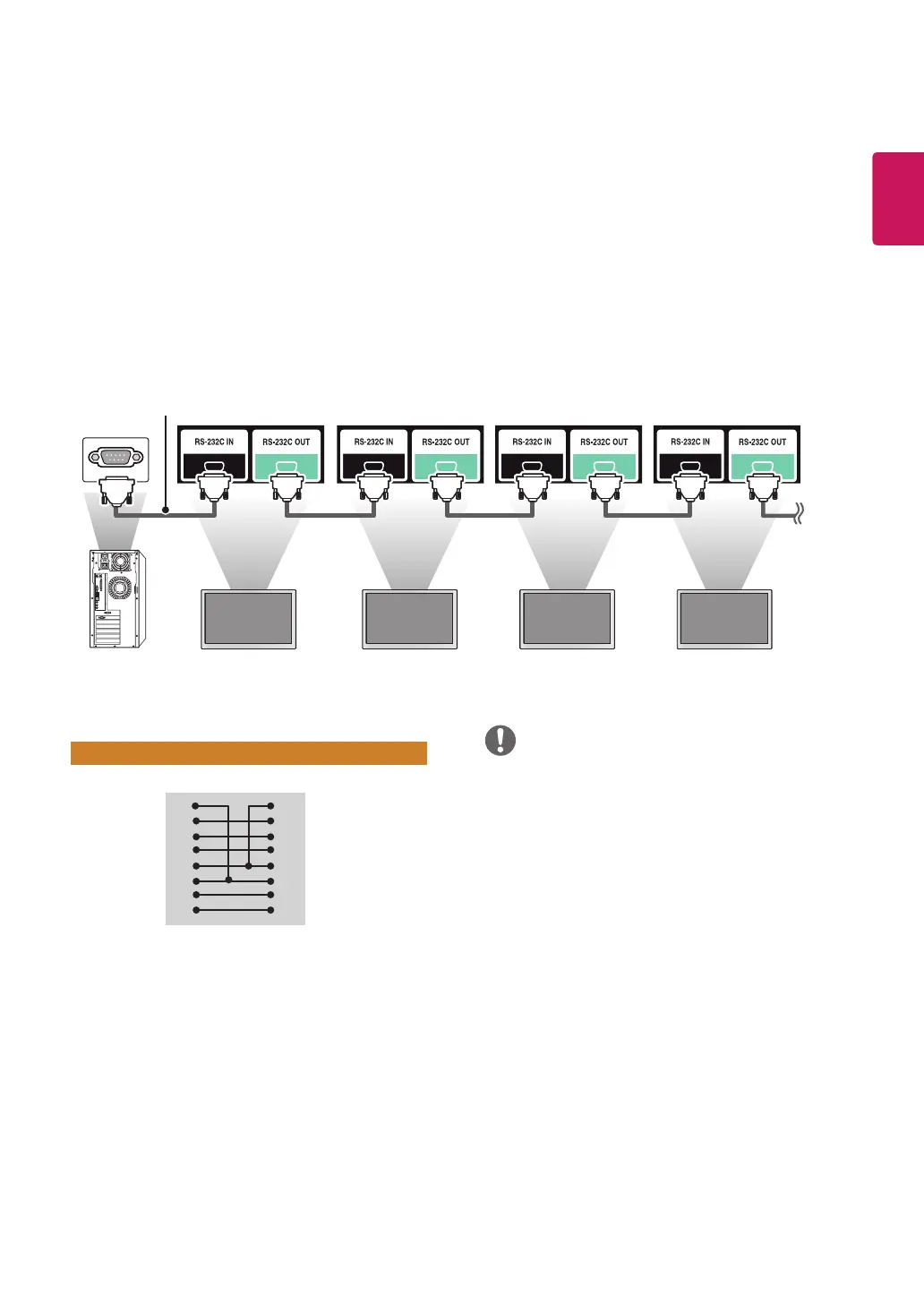

Connect the RS-232C cable as shown in the picture.
The RS-232C protocol is used for communication between the PC and product. You can turn the product on/
off, select an input source or adjust the OSD menu from your PC.
Monitor 1 Monitor 2 Monitor 3 Monitor 4
PC
Communication Parameter
Baud Rate : 9600 BPS
Data Length : 8 bit
Parity Bit : None
Stop Bit : 1 bit
Flow Control : None
Communication Code : ASCII code
Use a crossed (reverse) cable
When using 3-wire connections (non-standard),
an IR daisy chain cannot be used.
NOTE
RS-232C Configurations
8-Wire Configurations (Cross-over RS-232C cable)
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
RS-232C Cable
