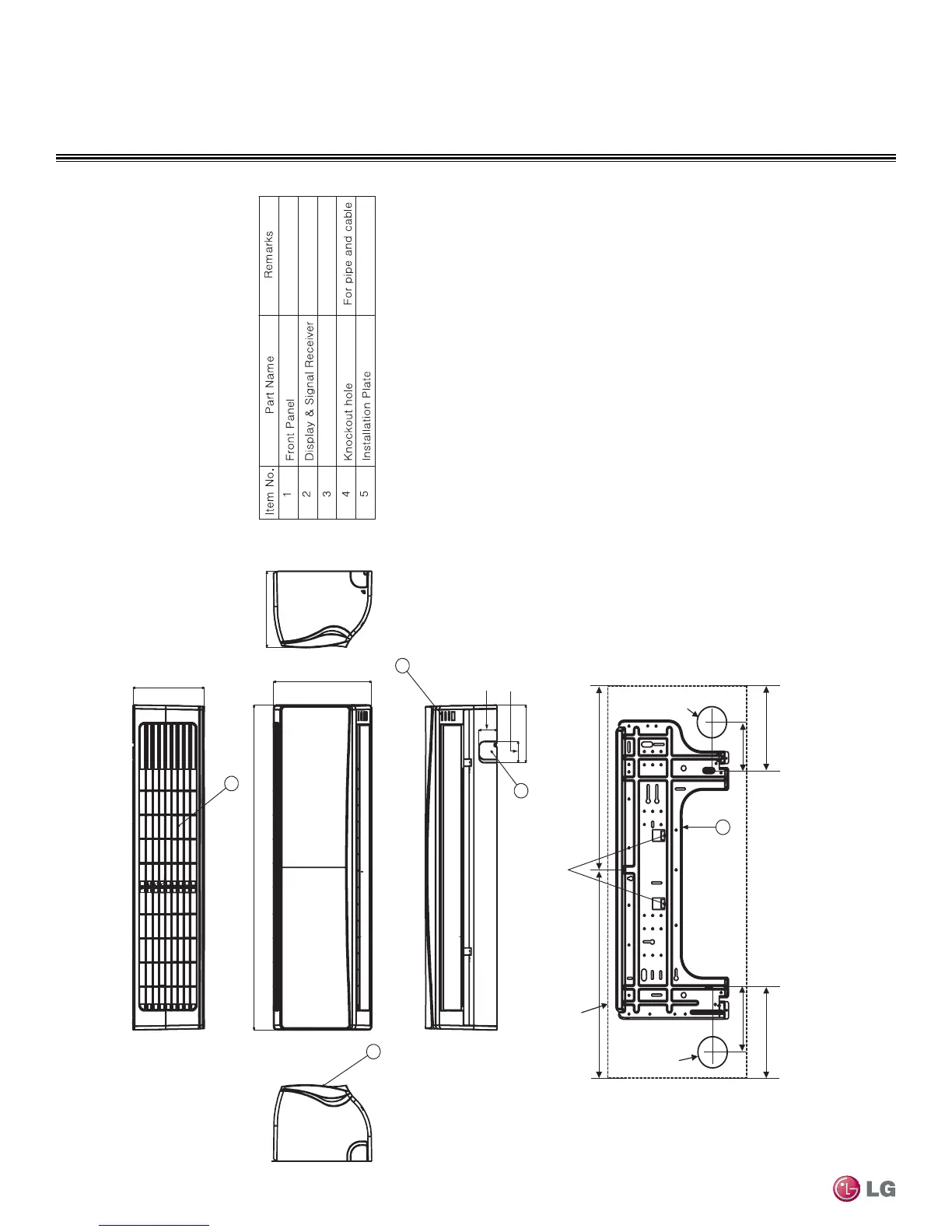

INDOOR UNIT DIMENSIONS
LSN091HSV3, LSN121HSV3
Ø2-3/4
5-3/16
3-11/16
Right rear piping
Left rear piping
Installation Plate
Place a level on raised tab
Unit Outline
8-1/2
6-29/32
7-13/321
8-1/4
3
34-13/16
8-1/4
11-1/4
2
1
4
2-5/16
6-5/16
5
29/32
Unit: inch
Ø2-3/4
7-13/321
Return Air Grille
