LG LS091HSV3 Engineering Manual

PRODUCT DATA | 31
Product Data
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
LSU/LSN240HSV3, LSU/LSN307HV3, LSU/LSN360HV3

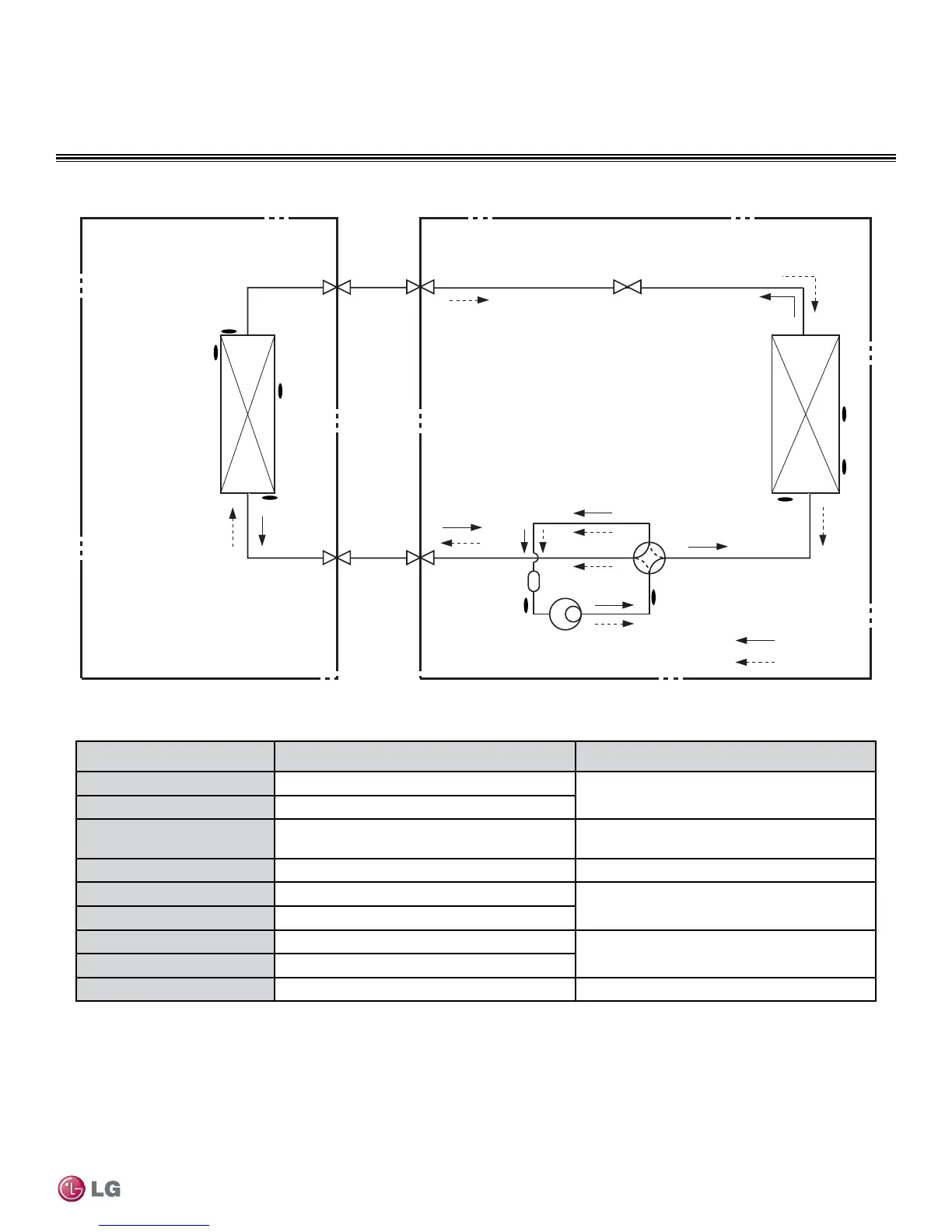

REFRIGERANT FLOW DIAGRAMS
tinU roodtuOtinU roodnI
Heat
Exchanger
(Evaporator)
Heat
Exchanger
(Condenser)
Compressor
Accumulator
Gas Side
3-Way Valve
2-Way Valve
Liquid Side
Cooling
Heating
Reversing Valve
EEV
Th1
Th2
Th7
Th3
Th8
Th9
Th6
Th4
Th5
LOC. Description PCB Connector
Th1 Suction air temperature thermistor
CN-TH1 (Indoor)
Th2 Water level sensor (optional)
Th3
Evaporating outlet temperature thermistor + water
level sensor
CN-TH2 (Indoor)
Th4 Evaporating middle temperature thermistor CN-TH3 (Indoor)
Th5 Discharge pipe temperature thermistor
CN-TH3 (Outdoor)
Th6 Suction pipe temperature thermistor
Th7 Condensing temperature thermistor
CN-TH2 (Outdoor)
Th8 Outdoor air temperature thermistor
Th9 Condensing middle temperature thermistor CN-TH4 (Outdoor)
