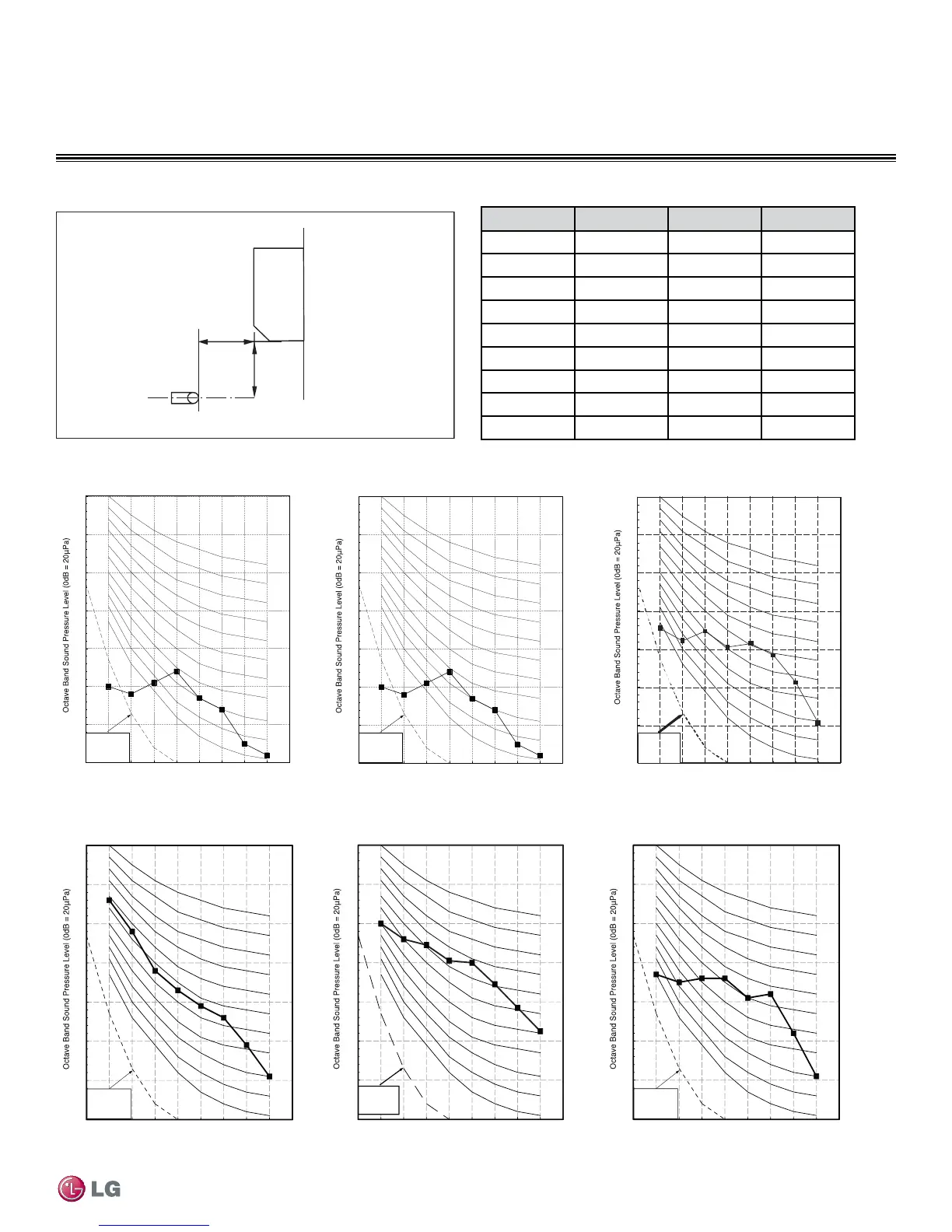

INDOOR UNIT ACOUSTIC DATA
Figure 7: Indoor Unit Sound Levels
2.62 ft
3.28 ft
Microphone
Model H M L
LSN091HSV3 38 33 24
LSN121HSV3 39 33 24
LSN181HSV3 45 40 35
LSN240HSV3 46 43 39
LSN307HV3 49 44 39
LSN360HV3 49 44 39
LSN240HLV 49 44 40
LSN300HLV 49 44 40
LSN360HLV 49 44 40
Table 13: Indoor Unit Acoustic Data
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Center Frequency (Hz)
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Center Frequency (Hz)
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
Octave Band Center Frequency (Hz)
10
20
30
40
50
60
70
80
63 125250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Octave Band Center Frequency (Hz)
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
NC-15
NC-20
NC-25
NC-30
NC-35
NC-40
NC-45
NC-50
NC-55
NC-60
NC-65
Approximate
Hearing
Threshold
10
20
30
40
50
60
70
80
63 125 250 500 1000 2000 4000 8000
Approximate
Hearing
Threshold
NC-65
NC-60
NC-55
NC-50
NC-45
NC-40
NC-35
NC-30
NC-25
NC-20
NC-15
Octave Band Center Frequency (Hz) Octave Band Center Frequency (Hz)
Figure 8: LSN091HSV3 Figure 9: LSN121HSV3 Figure 10: LSN181HSV3
Figure 11: LSN240HSV3 Figure 12: LSN307HSV3 Figure 13: LSN360HSV3
