Cooling / Heating Correction Factors
For the Single Zone High Efficiency, Single Zone Standard and Single Zone Extended Pipe systems, calculate the equivalent length of the
liquid line from the outdoor unit to the indoor unit. Also, determine the elevation difference of the indoor unit above or below the outdoor unit.
Find corresponding cooling or heating capacity correction factors as shown in Figures 17-22. Multiply the correction factors by the cooling or
heating capacity obtained from the capacity tables using design conditions. The resultant is the NET cooling or heating capacity.
EQUIPMENT SELECTION PROCEDURE

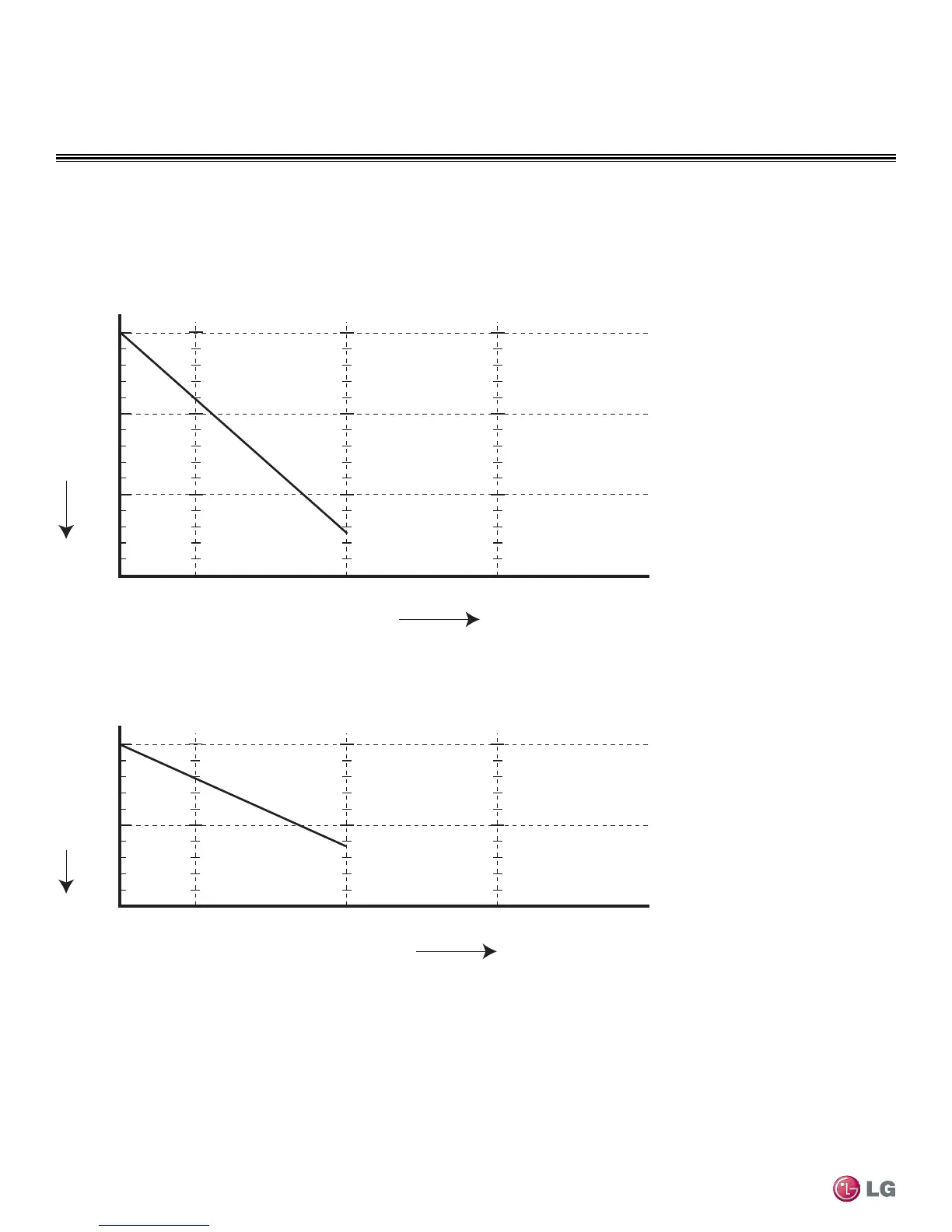

Figure 17: LS091HSV3, LS121HSV3 Cooling Coefcient Factor
9k,12k
65.6 98.4
Total Pipe Length (ft)
Capacity(%)Capacity(%)
100
90
95
24.6
100
95
9k,12k
65.6 98.4
24.6
Total Pipe Length (ft)
Figure 18: LS091HSV3, LS121HSV3 Heating Coefcient Factor
