LG LS091HSV3 Engineering Manual

72 | REFRIGERANT DESIGN
Single Zone High Efciency and Standard Wall Mount Engineering Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©
LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG ” is a registered trademark of LG Corp.
ELECTRICAL CONNECTIONS

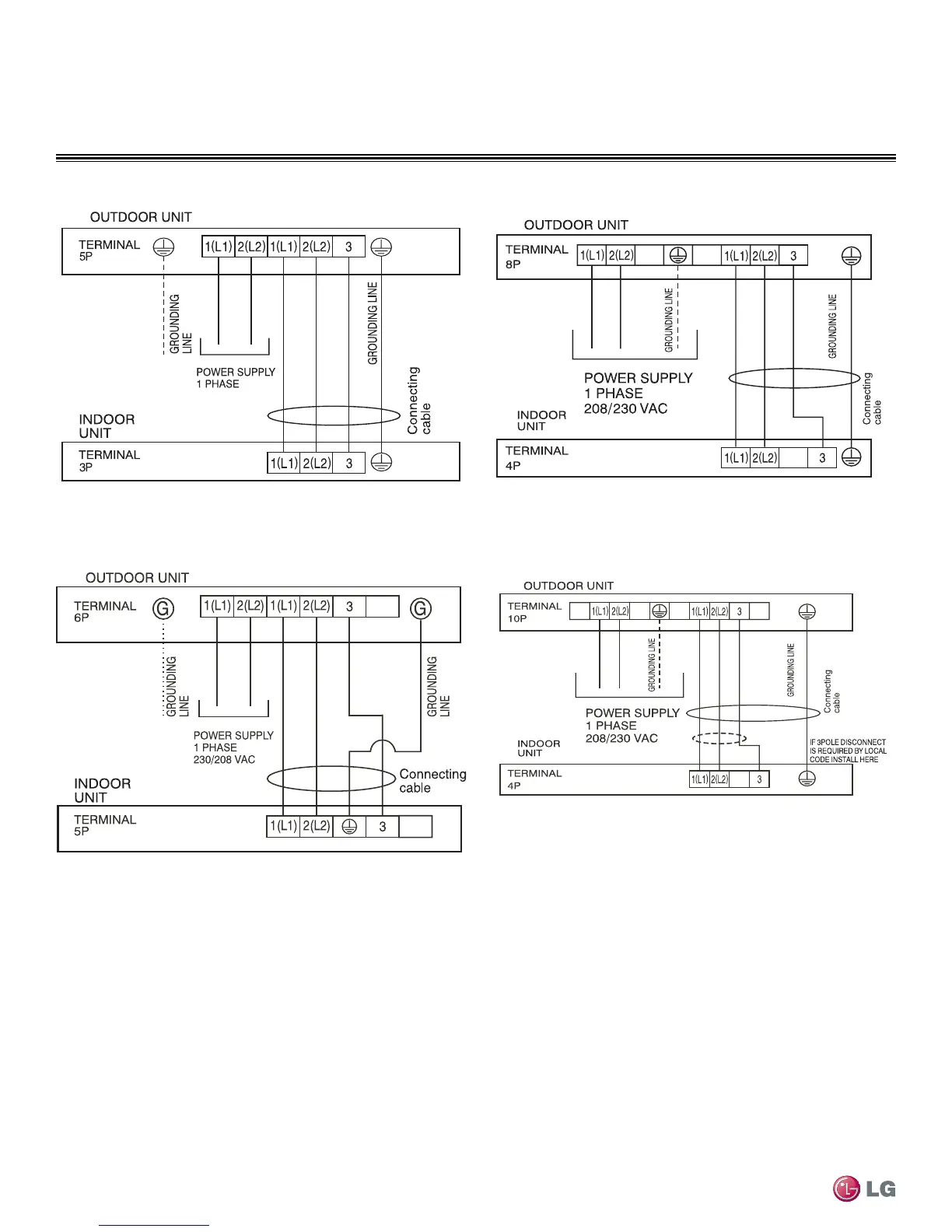

Figure 43: Terminal Block Wiring Diagram - LSU091HSV3, LSU121HSV3 Figure 44: Terminal Block Wiring Diagram - LSU181HSV3, LSU240HSV3
208/230 VAC
Figure 45: Terminal Block Wiring Diagram - LSU307HV3, LSU360HV3 Figure 46: Terminal Block Wiring Diagram - LSU240HLV, LSU300HLV,
LSU360HLV
