CONFIGURATION SCREENS
More Screens – continued

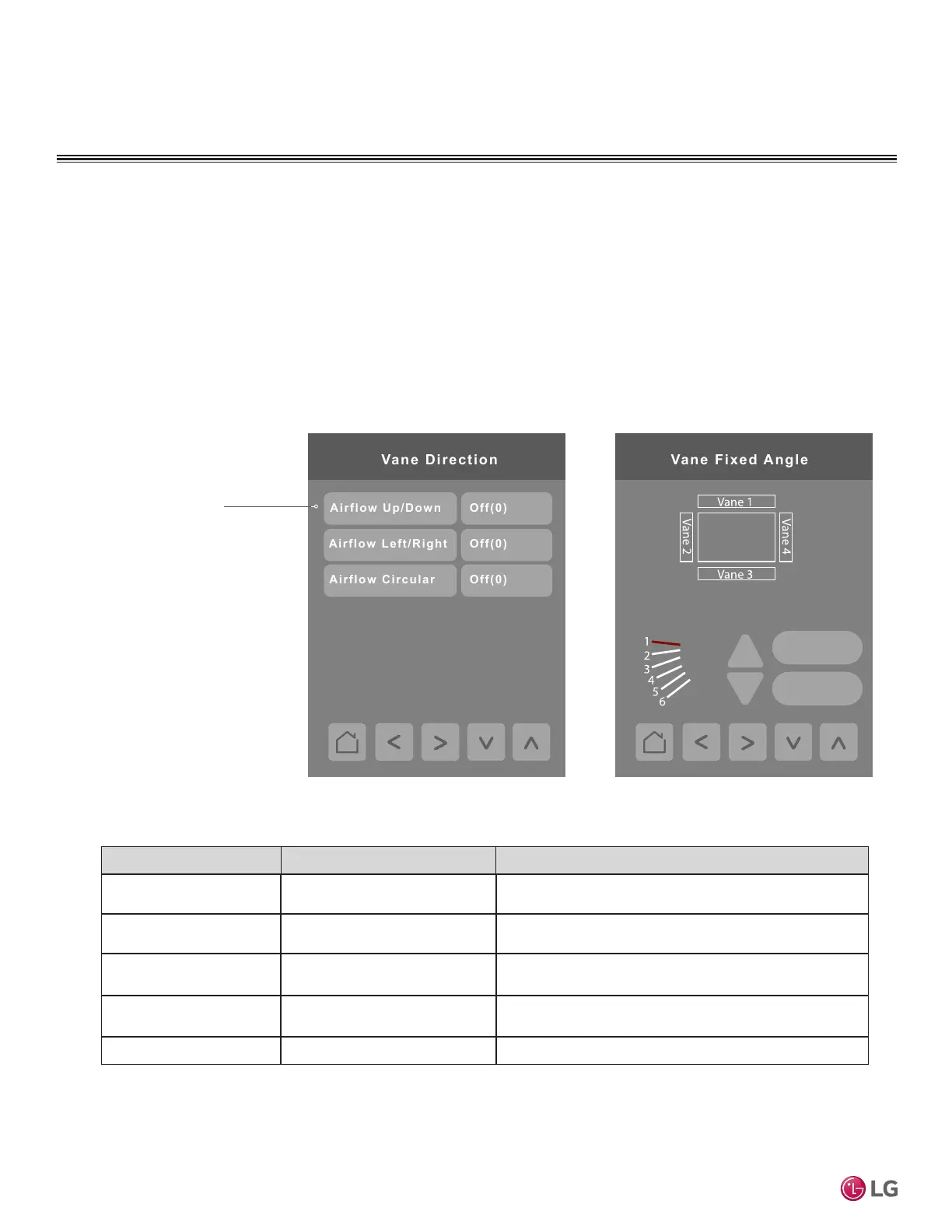

Press the right arrow button to display these screens. To adjust vane angle, user selects vane(s) by tapping
vane icon at the top of the screen, adjusts vane angle by using up/down arrows and then selects Apply button.
Note:
Vane xed angle control for multi-vane systems occurs in pairs. Refer to the Vane Fixed Angle screen. If a 4-louver
device is identied, when the user chooses Vane 1 or Vane 3 control, the opposite vane (Vane 3 or Vane 1) will be
controlled at the same time. If Vane 2 or Vane 4 is selected, Vane 4 or Vane 2 will be controlled in lockstep with its
matching pair as well. The same control behavior holds for a 2-louver device.
Off(0)
Vane Direction
Airflow Up/Down
Off(0)
Airflow Left/Right
Off(0)
Airflow Circular
Apply
Reset
ALL
Vane Fixed A ngle
Airflow Up / Down and
Airflow Left / Right con-
trols can both be “On” at
the same time. However,
when Airflow Circular
control is “On,” both of
the other two controls will
be set to “Off.”
Parameter Parameter Settings Denition
Airow Up / Down Choices: 0 = “O󰀨”, 1 = “On”
Default value: O󰀨
Selects the vane direction of the airow, up and down
Airow Left / Right Choices: 0 = “O󰀨”, 1 = “On”
Default value: O󰀨
Selects the vane direction of the airow, left and right
Airow Circular Choices: 0 = “O󰀨”, 1 = “On”
Default value: O󰀨
For 4-way cassette IDUs only. Selects circular vane
direction
Apply Sends the vane angle selected with the up and down
arrow keys to the IDU
Reset Sets all vane angles to the default position of “3”
