MT86 Operation and Maintenance Manual
6
Fig.1-11
Fig.1-12
Fig.1-13
Fig.1-14

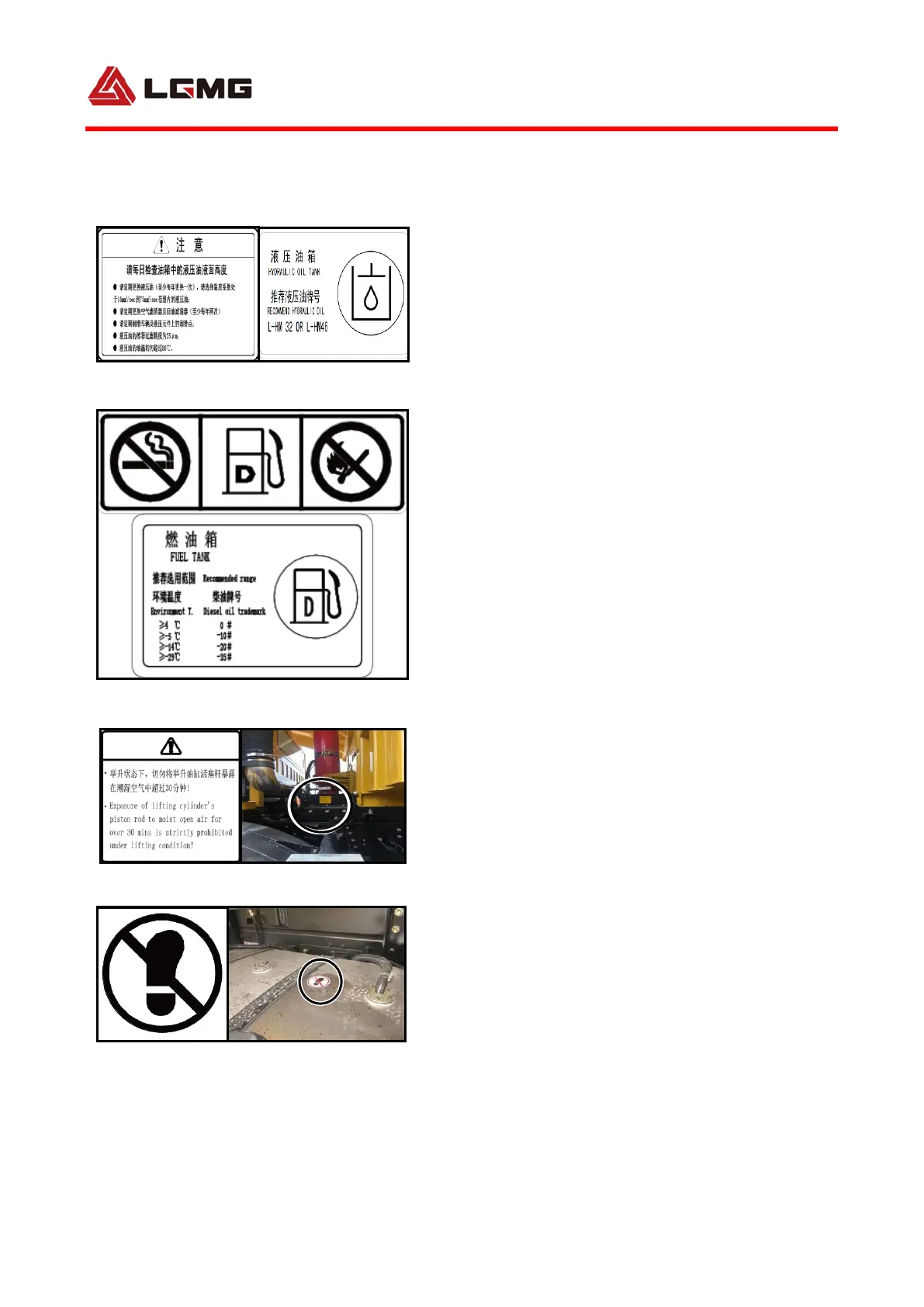

2) Hydraulic oil mark: at hydraulic oil tank.
3) Fuel tank filling notice and sign: at fuel tank.
4) Lifting notice & sign: at the underpart of the
hydro-cylinder support.
5) ―No treading‖ sign: on battery box and fuel tank.
6) ―High temperature‖ sign: near the muffler.
