MT86 Operation and Maintenance Manual
8

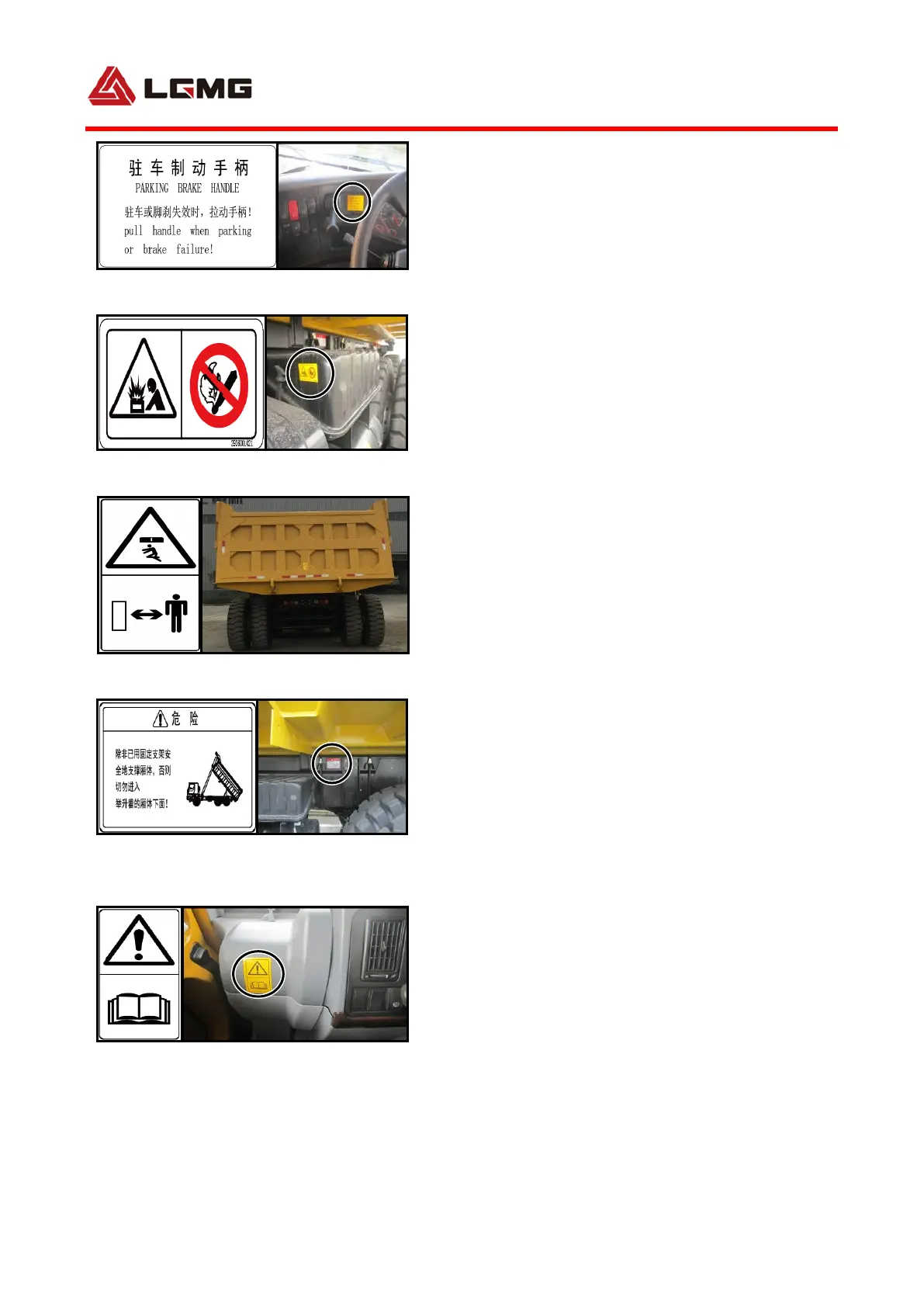

Fig.1-21
Fig.1-22
Fig.1-23
Fig.1-24
Fig.1-25
14) Parking brake handle valve notice：at the left
front part of the Parking brake handle valve.
15) storage battery burst-no fireworks notice：at the
left part of the battery case.
16）pay attention to the work device logo: the rear
door of the container.
17）the supporting logo of the box body is located at
the rear end of the accessory frame.
18) reading instructions: located on the left side of
the cab dashboard.
