MT86 Operation and Maintenance Manual
90

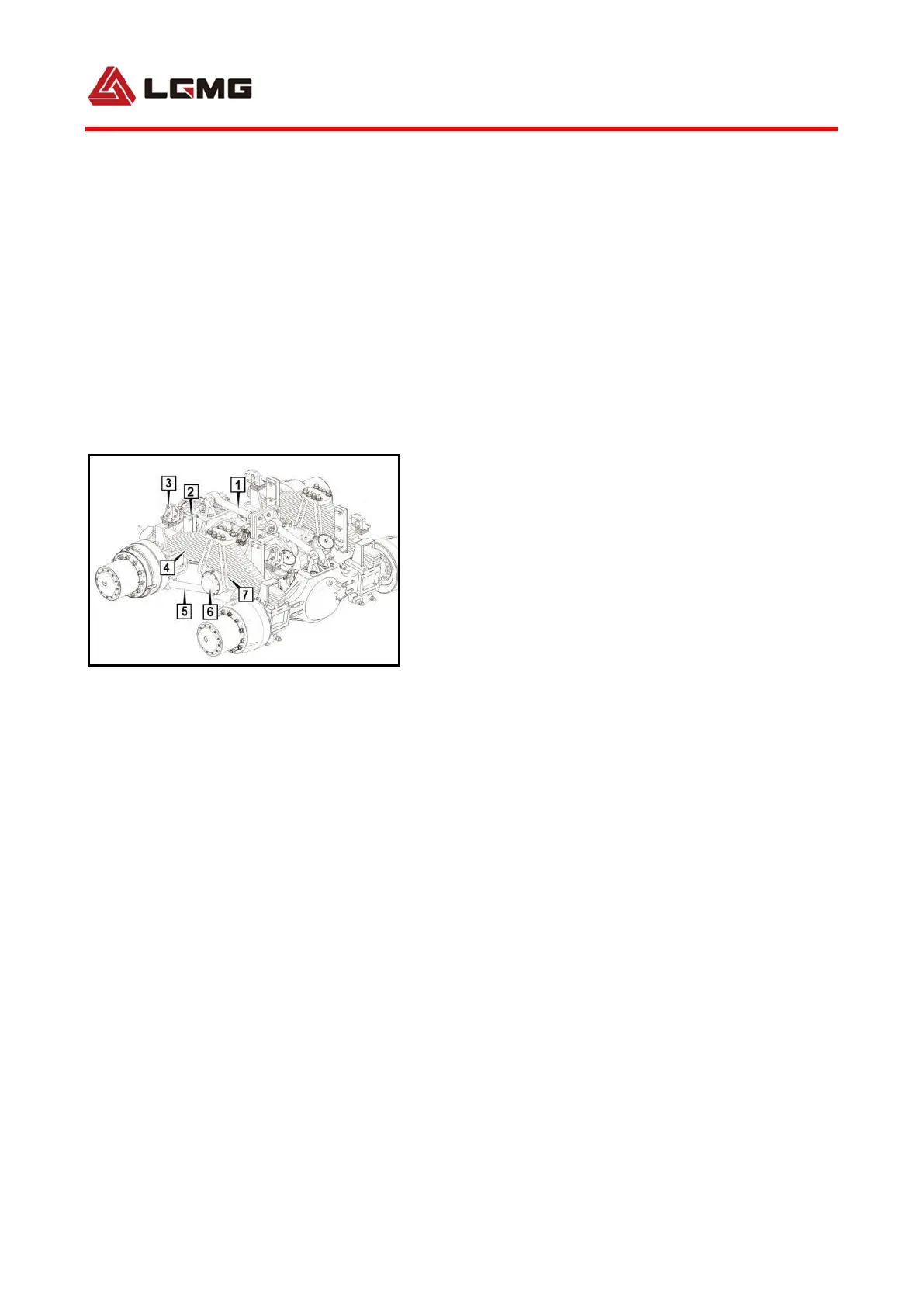

Fig 4-30 Rear suspension system
1. upperr push rod 2. Guide plate 3. Rear
suspension limit block 4. parallel semiellipse leaf
spring 5. lower push rod 6. reinforced integral
balance shaft 7. Bolt
accelerate break of leaf spring plate.
e.If the wear extent of the wear block exceeds
50% total thickness or it fall off, replace
it immediately; otherwise, the leaf spring
seat will be damaged, thus influencing the
service life of the seat;
f. If resistance is insufficient or any sound
occurs due to insufficient oil or leakage of
telescopic shock absorber, immediately
repair or replace it; otherwise, comfort of
the truck will be greatly degraded and even
serious accidents may occur;
4.6.2 Rear suspension system
The rear suspension system mainly consists of
reinforced integral balance shaft, parallel
semiellipse leaf spring, unilateral 4-M30
Bolt, and upper/lower push rod.
