Liebert HPS User Manual

pag. 19

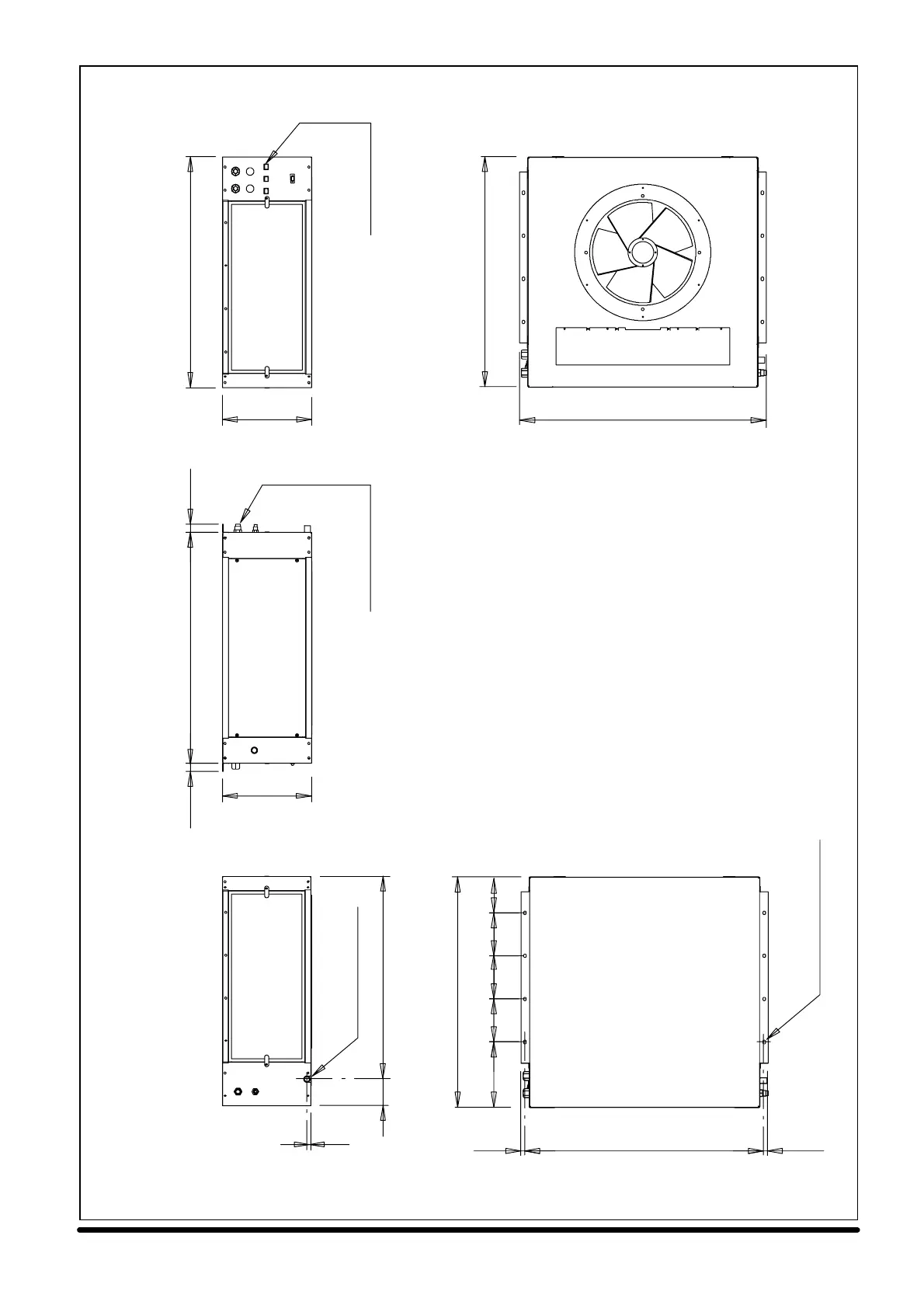

F i g . 1 c --- E v a p o r a t i n g u n i t H P S E 0 6 --- 0 8 --- 1 0 (version without freecooling)
28,5 803 28,5
310
228 150 150 150 125
13,583313,5
803
803
FRONT VIEW
TOP VIEW
BOTTOM VIEW
310
803
860
LEFT SIDE VIEW
RIGHT SIDE VIEW
Condensate drain
70994
14.5
Electrical
connection
N. 8 slots 9x12---
unit fixing
Refrigerant connection
