Page 76 of 192

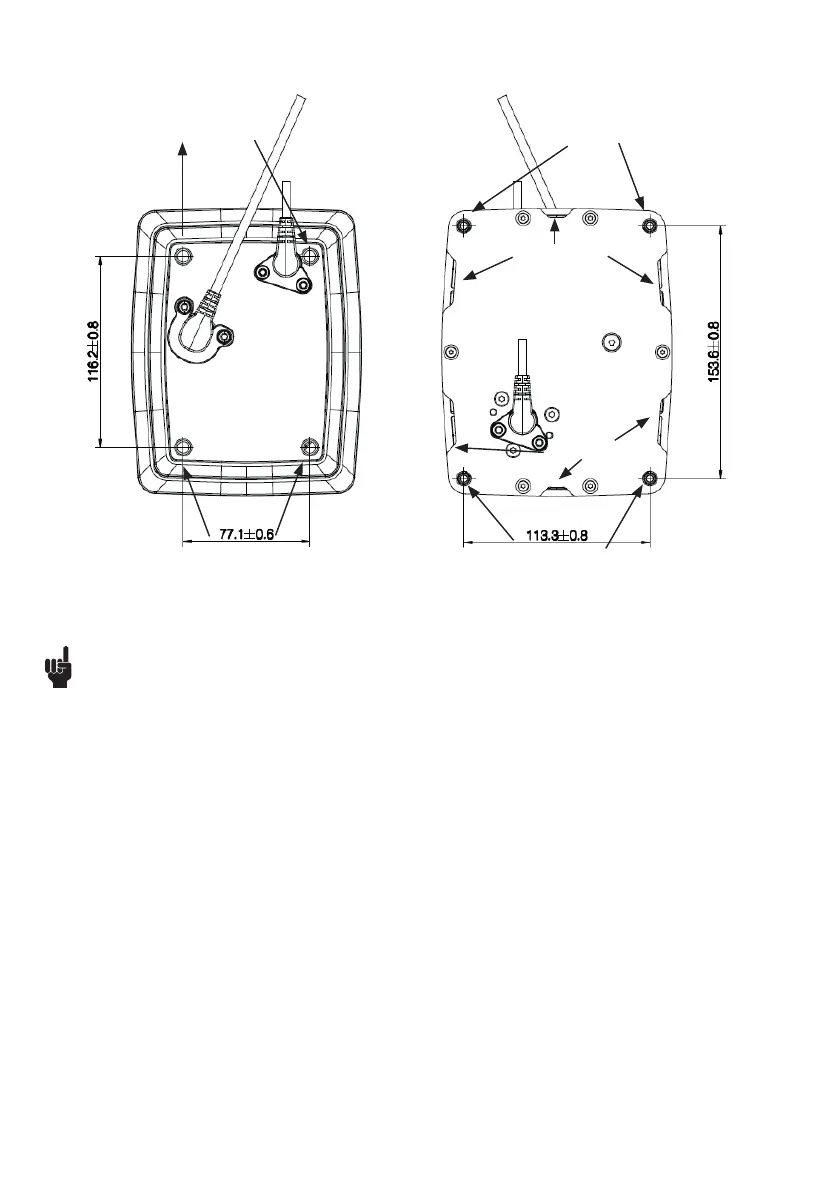

Mounting of BL1 with cable through:
Mounting holes
Mounting holes
Mounting holes
Mounting holes
Drain hole
Drain hole
Drawing no.: 0807001-1
Recommendations
• The mounting plate in the application must cover the entire top plate of the BL1 and be strong enough to carry the load.
• Remember to secure the cable mounted in the top of the column to the application, so that it cannot be pulled out of the column.
We recommend to use LINAK Cable:
- Lock kit for BL1 with motor cable: 0808040
- Lock kit for BL1 with hand control cable through: 0808046
Use only the screws included in the kit.
• For motor cable mounted at the top, use the long screw with the coarse thread.
Screw torque 1.7 Nm.
• For motor cable mounted at the bottom and for cable through, use the short screw with the fine thread. Screw torque 2.7 Nm.
• Electro Static Discharges!
There is no electrical connection through the length of the BL1 column. Therefore, to avoid ESD issues, consider external potential alignment
between the top and bottom of the bed frame.
To connect for further earth wiring in the application, use an appropriate ø8 mm cable shoe under one of the 8 mm screws at both the top plate
and the bottom plate.
• Remember to mount the blind plugs in the top plate if the motor cable is connected from the bottom plate to ensure the IPX6 protection.
