Page 255 of 295
With the Modular Data Interface, it is possible to connect to third party devices. The
MDI establishes the access to the LINAK
®
Communication Interface
TM
and prepares the
system for the use of future features.
Usage
• Operation temperature: +5 °C to + 40 °C
• Storage temperature: -10 °C to + 50 °C
• Relative humidity: 20% to 80% - non-condensing
• Atmospheric pressure
(operation and storage): 800 to 1060 hPa
• Meters above sea level: Max. 3000 meters
• Approvals: IEC 60601-1

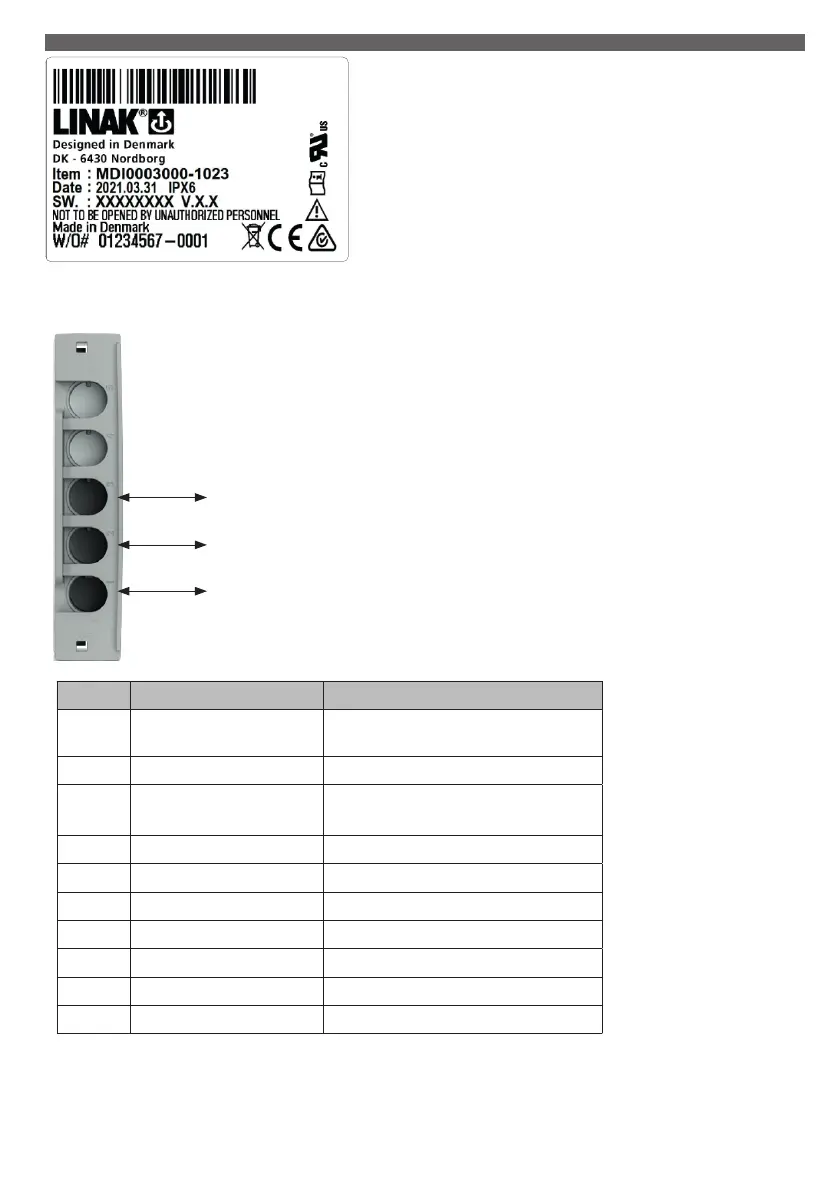

15. Modular Data Interface - MDI (MEDLINE
®
CARELINE
®
)
MDI connection
Port 3
Port 2
Port 1
UART (to LCi
™
client) - use cable CAB90092
Control box connection - use cable CAB0965394
OpenBus/programming
Pin Name Description
Pin 1 Vperm (+22-50V) Always powered on battery.
Powered when sustem is active on mains.
Pin 2 GND
Pin 3 Wake up GND for minimum 100 ms and maximum 500 ms
to wake up the system or else disconnected.
Pin 4 N/A
Pin 5 N/A
Pin 6 Vbus (+8V) Powered when system is active.
Pin 7 RXD (TXD from LCi Client)
Pin 8 TXD (RXD from LCi Client)
Pin 9 N/A
Pin 10 N/A
