Page 192 of 295
The HB30 hand control is designed for better user experience and ergonomic fit for the hands
of caregivers. The compact size ensures one hand operation. The HB30 is especially suitable for
patient lifts and other MEDLINE
®
and CARELINE
®
applications like couches, tables and chairs for
treatment and examination. The HB30 is available in an analogue version and an OpenBus™
version.
Usage
• Usage temperature: 5 °C to 40 °C
• Storage temperature: -10 °C to +50 °C
• Compatibility: Analogue JUMBO Systems
Analogue JUMBO systems with diode and OpenBus
JUMBO versions
All OpenBus control boxes
CAL40, CAL40+ and COL50
• Approvals: IEC60601-1
ANSI/AAMI ES60601-1
CAN/CSA-22.2 No 60601-1
The HB30 has a compact design and therefore it cannot be approved according to EN IEC60601-2-52
(Application Environment 4 for care beds used in Domestic areas (or EN1970)).
11. HB30 (MEDLINE
®
CARELINE
®
)

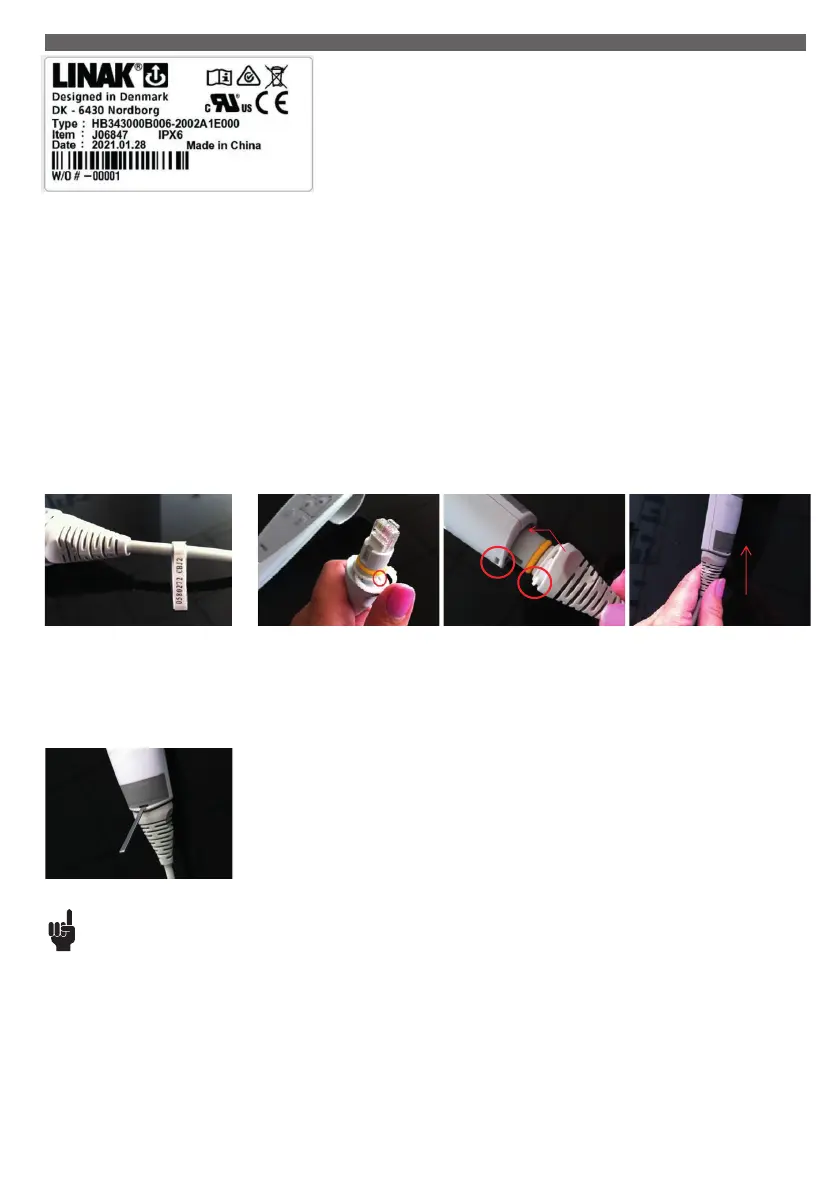

How to identify the cables:
How to mount a cable:
Step 1:
Mount the cable lock and fix it to the
slot marked in the picture.
Step 2:
Fix the cable tab on the hand con-
trol’s front side first.
Push in and twist a bit to fix the
tab (see picture fit A into B).
Step 3:
Fix the tab on the back as well by
pushing.
Step 1:
Release the cable by pushing e.g. a screw-
driver into the hole on the back of the
hand control. Twist and release.
How to remove a cable:
Each cable has a label for easy identi-
fication of item number and for which
control box it is intended.
Recommendations
• Please ensure that you use the right cable type to ensure the wished functionality. In case of lack of functionality of your hand control, check that
the hand control cable is the right one for the intended control box or contact your local LINAK representative.
• Please note that HB3X0L0 version (analogue with diode) is not supported by the CBJC. The diode will light up at all times if used with the CBJC.
• Do not submerge the hand control under water.
• Unless otherwise specified or agreed with LINAK, the hand control is only intended to be used on LINAK systems.
• Do not sit or lie down on the hand control. It can cause unintended movement of the application.
• When changing hand controls for OpenBus
TM
systems, the power must be switched off.
• The force of the magnet depends on the thickness and the type of the lacquering, stickers, steel thickness etc. It is the responsibility of the customer
to verify that the holding force on the application is acceptable.
• For hand controls with magnets it is the responsibility of the user/operator to evaluate any possible risk caused by use of permanent magnets.
• For hand controls with magnets it is recommended to have a parking place for the hand control on the application, where the customer ensures that
the hand control does not fall off.
