3
1
Open up
2
Grab handle
Lift off
The BAL40 lead acid
battery pack is part of
the LIFT40 product series
specially developed for
patient lifts.
2. BAL40 (MEDLINE
®
CARELINE
®
)
Usage
• Compatibility: CAL40/CAL40+/CHL40
• Duty cycle: Max. 10% or 2 minutes continuous use followed by 18 minutes without use at a max. discharge current of 10 A
• Charging: Via external wall charger CHL40 and CH01 or via CAL40 or CAL40+ with internal charger.
• Recharging during storage: First battery recharge must be no later than 6 months after the production date stated on the label.
Hereafter, the battery must be recharged at least every 6 months.
• Operating temperature: +5 °C to +40 °C
• Charging temperature: +5 °C to +40 °C
Charging at high ambient temperatures can impact the charging time.
• Storage temperature: -15 °C to +40 °C (+10 °C to +25 °C - recommended)
The batteries must be stored in an applicable storage room without direct sunlight.
• Relative humidity: 20% - 80% – non-condensing
• Atmospheric pressure 700 to 1060 hPa
• Meters above sea level: Max. 3000 meters
• Approvals: IEC 60601-1
ANSI/AAMI ES60601-1
CSA CAN/CSA-C22.2 NO. 60601-1
IEC 60601-2
General functionality – LIFT40

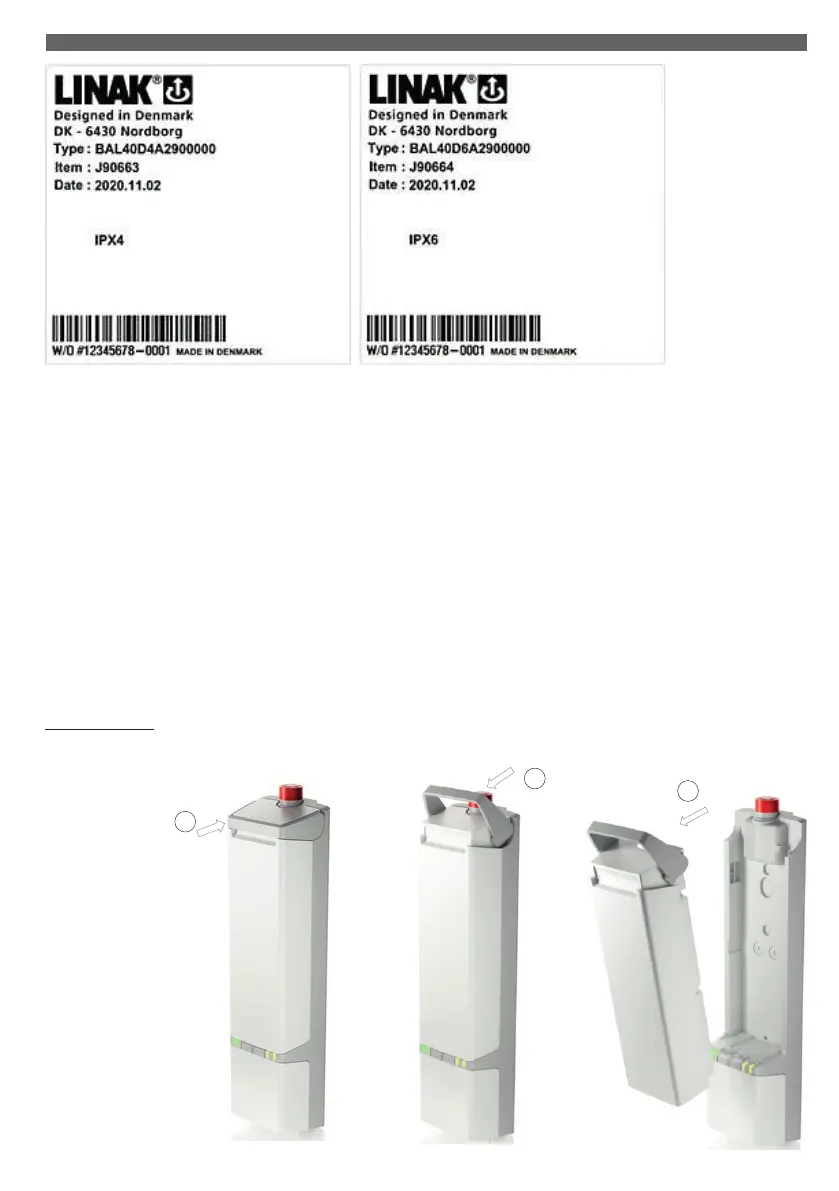

Taking off battery:
1) Lift handle upwards to release lock
2) Grab handle, pull out and slightly to the right
3) Lift off the battery - carry in handle
