The HB190 is an advanced hand control designed for high-end medical
equipment. It contains 9.5 rows, giving the care staff 19 buttons for
activation. It is equipped with 21 LEDs, providing user-friendliness due
to the clear overview of the battery status, locking status and service
indication.
Furthermore, the HB190 comes with an exchangeable cable and is IPX6
Washable DURA™, ensuring a long product lifetime.
Usage
• Operation temperature: +5 °C to + 40 °C
• Storage temperature: -10 °C to + 50 °C
• Relative humidity: 20% to 80% - non-condensing
• Operational atmospheric pressure: 800 to 1060 hPa
• Storage atmospheric pressure: 700 to 1060 hPa
• Operational meters above sea level: Max. 2000 meters
• Approvals: IEC60601-1
IEC60601-1-2
• Compatibility: All OpenBus
TM
control boxes
• Flammability rating: UL94 V2
• Latex free: Yes

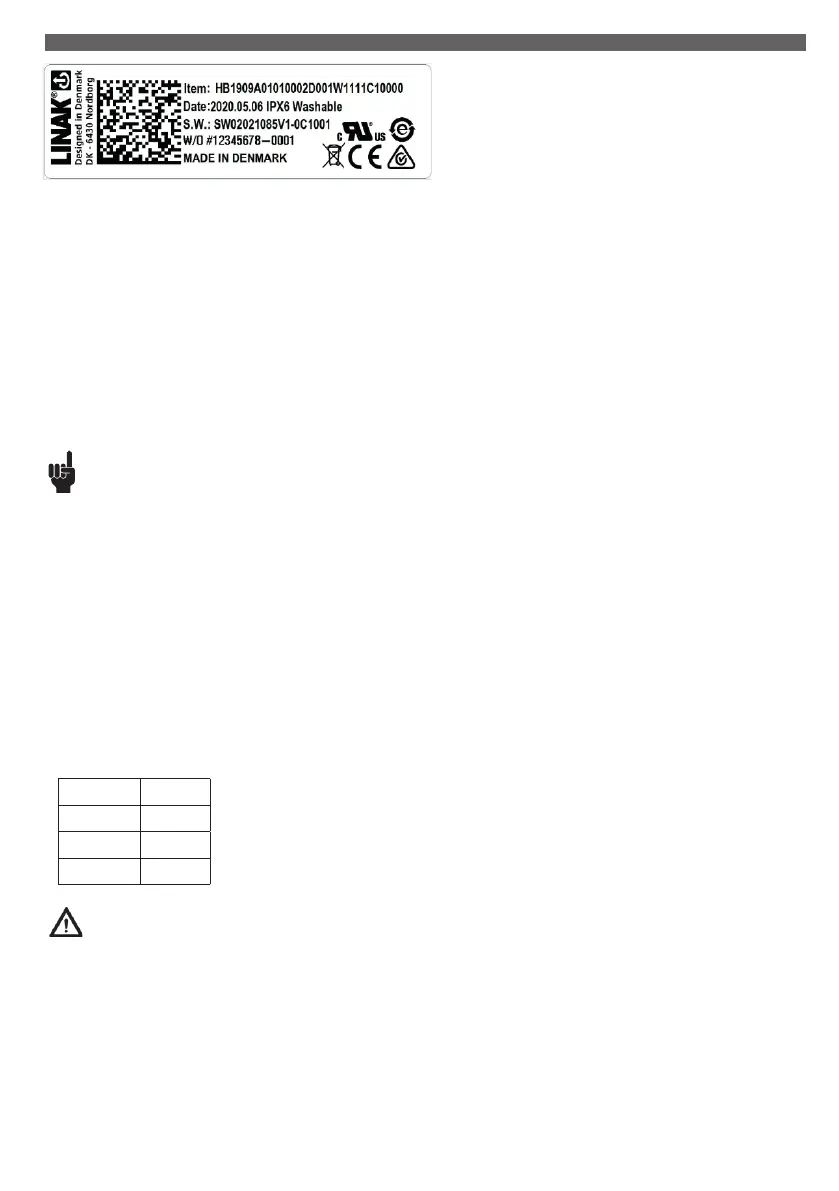

15. HB190 (MEDLINE
®
CARELINE
®
)
Recommendations
• Unless otherwise specified or agreed with LINAK, the hand control is only intended to be used for LINAK systems.
• Inform the customer only to use the magnet key supplied by LINAK.
• It is recommended to make a functional test of the application before setting it into operation.
• Inspect the cable lock before use. If the red indicator is visible, the cable is unsecured. The detachable cables must also be locked.
• In order to maintain the cable flexibility, it is important to place a coiled cable in such a way that its own weight does not strain the coil during the
washing process.
• When changing hand controls for OpenBus™ systems, the power must be switched off.
• Clean the hand control regularly to ensure good hygiene standards.
• It is recommended to check the hand control and cable for damage and holes caused by violent handling before washing the application or at least
once a year.
• Do not submerge the hand control into water.
• Keep the hand control in upright position with the cable downward when washing.
• Does not comply with the 10/15 rule (IEC 60601-2-52:2009 Annex BB. 3.3.3)
• Be aware of the current consumption which is 28 mA. With all LEDs lit it will be 65 mA.
LED current consumption:
Warnings
• Do not sit or lie on the hand control. It can cause unintended movement of the bed.
• If the hand control shows signs of damage, is dropped or otherwise damaged, the LEDs and backlight might be unfit to use and might show incorrect
information.
• Inform the customer that after loss of mains power, the lock state is reset to the default setting. Be aware of a special setup for a magnet lock of low
power system in case of power down on mains. Also be aware that the lock is reset when running on battery or when powered down.
• Inform the customer that using the magnet key cannot wake up a low-power system or a system running on battery. The system will wake up when
a key is activated.
• Inform the customer that a powerful magnetic field may change the lock state.
• Always use O-ring on connectors and cable locks.
Red LED 1.2 mA
Yellow LED 1.7 mA
Green LED 3.9 mA
White LED 1.3 mA
