Cable management is possible on the control box backside. The wire grooves can be used for many different purposes, for instance:
1. Guide cable for sling adjustment actuator upwards
2. Guide hand control cable up and out in low or high position to right or left side of patient lift

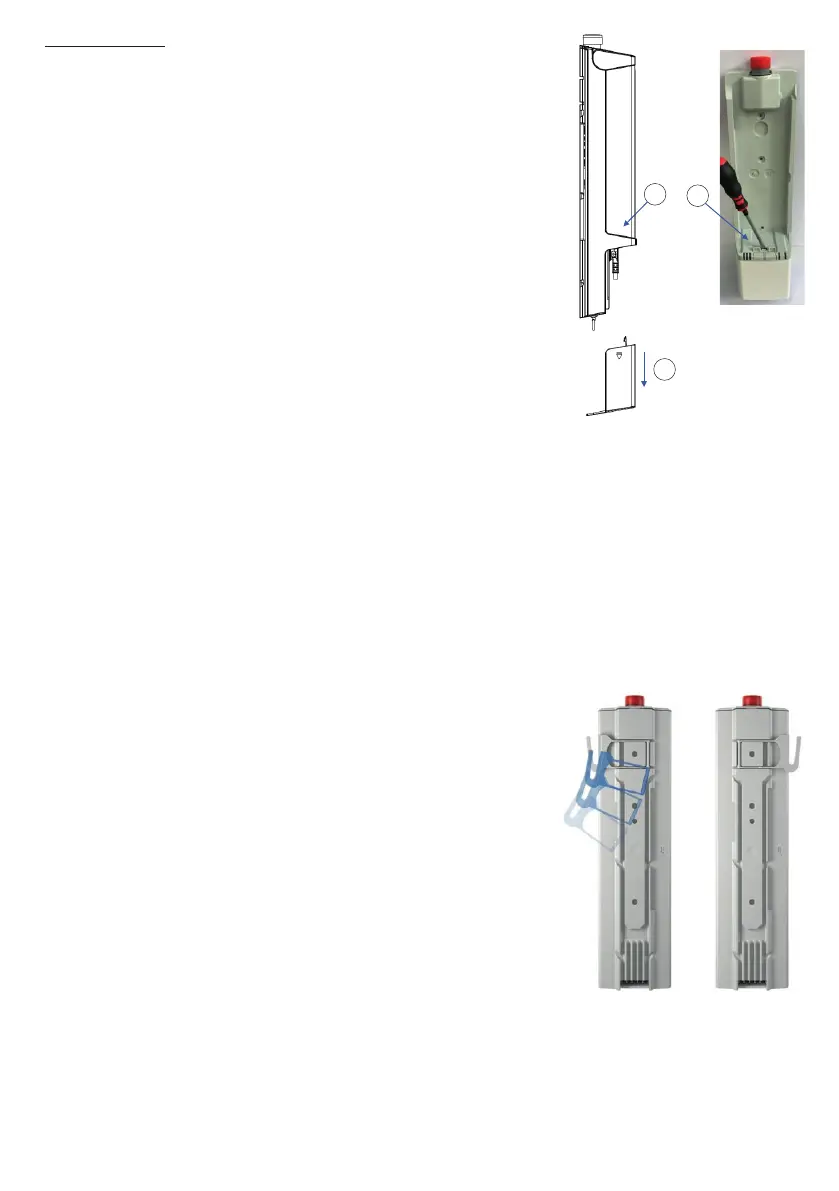

Cable routing and management:
To open cable cover:
- below battery (3)
- insert flat head screwdriver in groove.
Twist carefully and release cable cover lock (4)
- pull cable cover downwards and release from grooves (5)
To open cable cover
- Below battery (3)
- Insert flat head screwdriver in groove. Twist
carefully and release cable lid lock (4)
- Pull cable cover down and out of grooves (5)
3
4
5
Cable hanger:
CAL40 comes with a cable hanger for parking mains cable or hand control when not in use.
The cable hanger can be located on either the left or right side of the control box.
Place hanger in designated grooves on the back before mounting the control box on the
patient lift. When mounted, the hanger is locked in place.
