Warning
• In order to avoid injury, the emergency-stop should be activated in (all) transport and cleaning situations.
• BAJ Li-Ion batteries differ from BAJ1 lead acid as they have built-in discharge protection.
If the user continues to use the battery despite warning signals, loss of power might happen due to the battery deep discharge protection.
In this event, there may be no warning and the application may not be ableto move when expected.
• The combination of CBJ1 or CBJ2 with BAJL might not be able to complete a full cycle after low battery warning.
Recommendations
• The mains cable must always be ordered separately when ordering a CBJ1, CBJ2 with an internal charger.
• Use only original LINAK mains cables to ensure proper connection to internal charger.
• When charging, the CBJ1, CBJ2 will not be able to operate any actuators.
• By use of charger CH01 it is possible to activate the actuators when charging. However, this is not recommended as it can damage the control box
or the charger CH01.
• When the CBJ1, CBJ2 with LCD display option is combined with the battery BAJ Li-Ion, the LCD display can indicate empty battery even if the
battery capacity is not low.
The acoustic alarm will always be activated at low battery capacity independent of display indication.

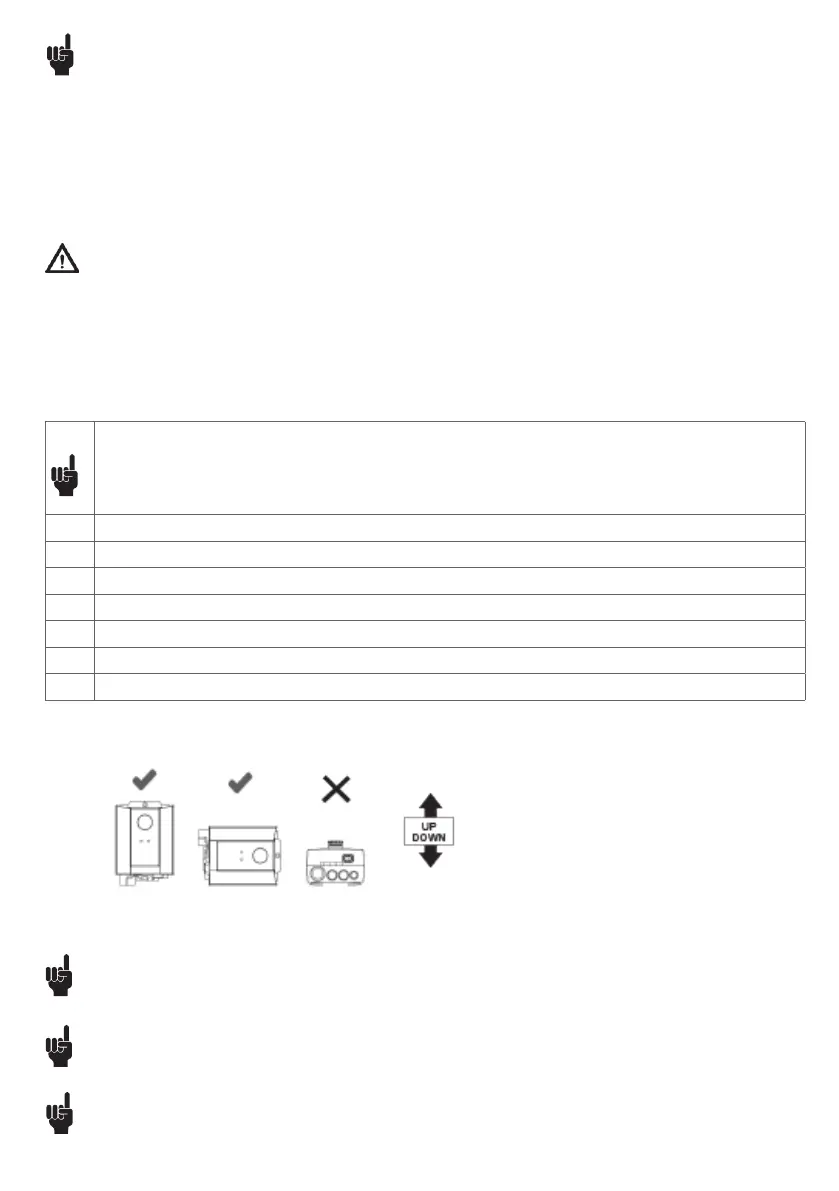

Special care should be taken when mounting the CBJ1, CBJ2.
As long as the CBJ1, CBJ2 is mounted correctly then the CBJ1, CBJ2 complies to IPX5.
If the CBJ1, CBJ2 is mounted incorrectly, then water will gather around the screw holes resulting in non-compliance with IPX5!
CBJ1, CBJ2 with variable current cut-off: the protection plugs must always be inserted to ensure IP protection after adjustment.
When using the control box with emergency stop, the stop button must be activated in cleaning situations in order to comply with IPX5.
The battery pack BAJ1 must not be removed in cleaning situations, doing so could result in non-compliance with IPX5.
If the CBJ1, CBJ2 is fitted with option B, D and F (DC power connector), the protection plug ex. 00918174 must always be inserted
to ensure IP protection, if the port is not used. IP rating only applies when the battery is connected to the control box.
Mounting the CBJ1, CBJ2
Adjustment instructions for the JUMBO application.
Tool For the adjustment you must use a trimming screwdriver, which can be purchased from LINAK A/S. It is also possible to use other types
of trimming screwdrivers for the adjustment.
Ordinary screwdrivers cannot be used, as they will damage the potentiometer slot.
When you receive the JUMBO from LINAK A/S it is adjusted to min. current cut-off.
1. Connect the JUMBO control box to the actuator.
2. Load the actuator with the required load.
3. Turn the potentiometer completely clockwise.
4. Run the actuator in the loaded direction at the same time turn the potentiometer anticlockwise until the actuator stops.
5. Turn the potentiometer 3 times clockwise.
6. Check JUMBO can lift the loaded actuator.
7. Insert the plugs article no. 0009020 (Light grey (RAL7035) or 0009019 (Dark grey (RAL7016) to ensure IP protection
