Page 169 of 192

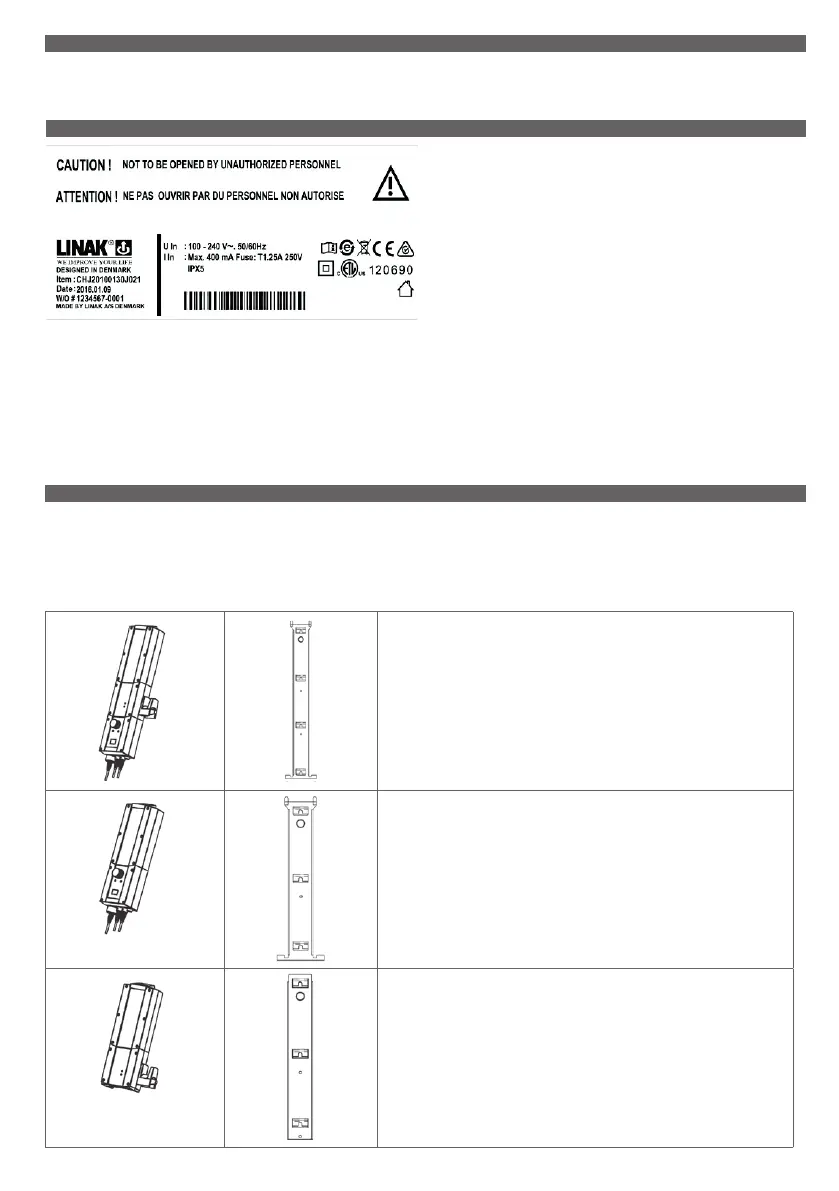

MBJ1
For use together with CBJ1 or CBJ2 or CBJC, CHJ2 and BAJ1 or BAJ2. I. e.
when combining control box, charger and battery pack MBJ1 has to be used.
MBJ2
For use together with CBJ1 or CBJ2 or CBJC, and BAJ1 or BAJ2. I. e. when
combining control box and battery pack MBJ2 has to be used.
MBJ3
For use together with CHJ2 and BAJ1 or BAJ2. I. e. when combining charger
and battery pack MBJ3 has to be used.
Depending on of what your JUMBO system consists you need to use one of the following three mounting brackets. IP protection is only valid when
the JUMBO system is mounted vertically.
All three brackets include matching screws (IPX1, IPXX and IPX5 are delivered with stainless screws). The mounting screws for the control box,
charger must be tightened with a maximum torque of 1 Nm.
10. MBJ1/2/3 (MEDLINE
®
CARELINE
®
)
8. CH01 (MEDLINE
®
CARELINE
®
)
For charging the batteries of CB08-XA and all JUMBO control boxes, directly connected to the control box or via the hand control HB40A.
For charging of the batteries in battery box BAJ2 (JUMBO system) and CBJH.
9. CHJ2 (MEDLINE
®
CARELINE
®
)
The charger CHJ2 has been specially designed for use as a wall-charger for
the JUMBO system.
The CHJ2 charger is a Switch Mode Power Supply (SMPS) version which
makes charging of the batteries more efficient.
BAJ1 and BAJL (standard) battery pack have a reduced charging time.
Mains voltage from 100 V AC - 240 V AC (50/60 Hz) is possible on same
charger.
The charger indicates whether the charger is connected to the mains (green
LED) or whether the battery is being charged (yellow LED).
Medically approved.
Usage:
• Nominal current draw: Max. 400 mA
• Power consumption (standby): Max. 2.5 W
• Power consumption (charging): Max. 19 W
• Ambient temperatures: + 5 °C to + 40 °C
• Storage temperature: - 10 °C to + 50 °C
• Approvals: IEC60601-1, ANSI/AAMI ES60601 and CAN / CSA-22.2 No 60601-1
