The LINAK control box CO71 offers a consolidated range of unprecedented features – all utilising
standardised technology, interfaces and compatibility.
The CO71 for LINAK actuators is intended for the control of, for example, hospital bed movement.
Equipped with 350W SMPS, excellent and well thought-out cable management as well as multiple
easy mounting options, this control box opens up a wide range of application possibilities for the
provident hospital and care products manufacturer.

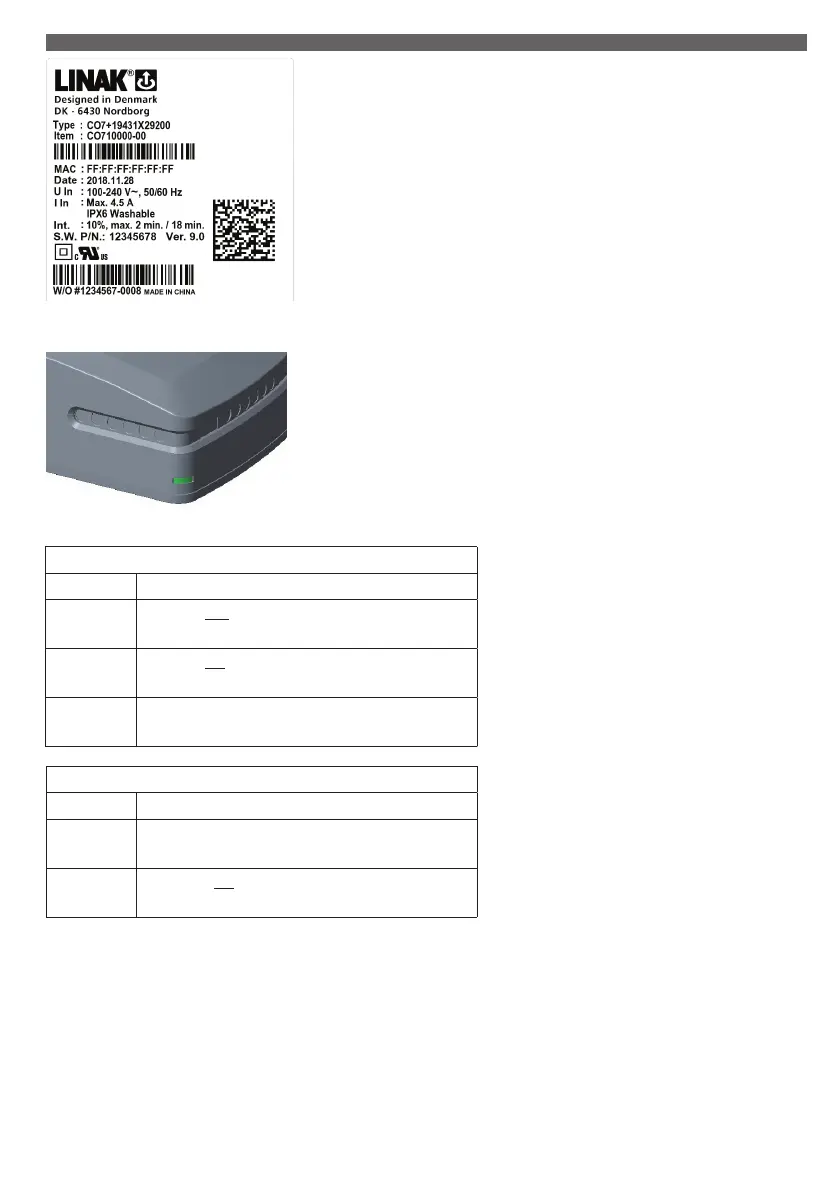

LED indicator
CO71 is equipped with a green LED for indication of mains power connected.
When the CO71 is connected to mains, the LED is green. Connected only to battery, the LED is off.
20. CO71 (MEDLINE
®
CARELINE
®
)
Features and Options:
• Duty cycle: 10 % - 2/18 min. on/off continuous use.
Maximum power is 350 W for 80 seconds and 175 W for 40 seconds at 25 °C.
Acoustic signal functionality:
The buzzer will make a warning, when a button on the hand control is pressed, and the battery capacity is low.
The buzzer can also be activated by the control box to signal other conditions. This must be specified in the control box software.
Connected to MAINS
LED colour Indication of operation
Green
On mains, not activated by hand or foot control.
The system is working ok and is ready for normal operation.
Yellow
On mains, not activated by hand or foot control.
The system is defective and should not be operated.
Yellow On mains, activated by hand or foot control.
The system is working.
Not connected to mains but with BATTERY back-up
LED colour Indication of operation
Orange On battery, activated by hand or foot control.
The system is working.
No LED
On battery, not activated by hand or foot control.
or CO71 not connected to mains.
