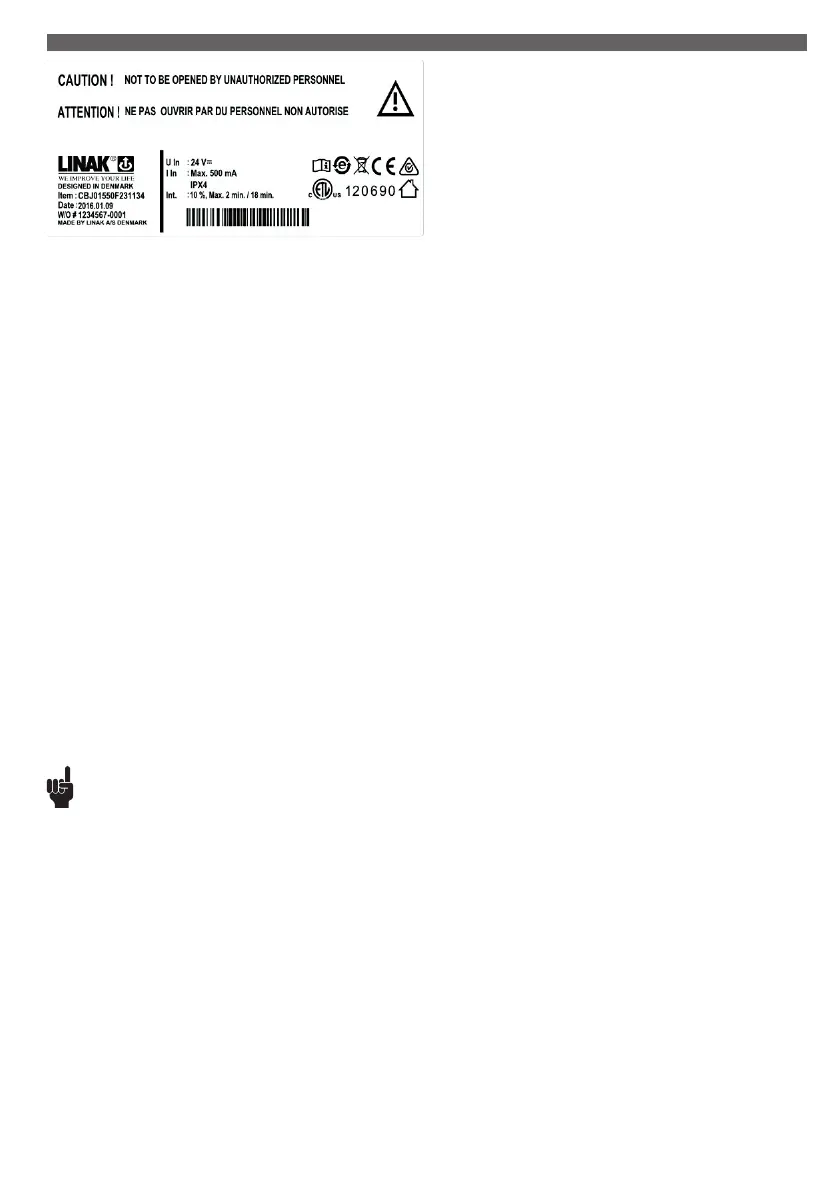

Page 163 of 192
The control boxes CBJ Care is a part of the JUMBO system. JUMBO is a
modular system combining an actuator, a control box (CBJ Care), a battery
(BAJ1 / BAJL), and a charger (CHJ2) / internal charger and a hand control in
a flexible solution, specially developed for patient lifts.
The complete system contains a series of features which meet the patient’s
need for a safe and comfortable lift.
CBJ Care is available in 3 versions, one with diodes, one with a display and
a third without display and diodes.
It is possible to have control buttons on the front cover to have an easy
control option if the hand control is missing. Furthermore it is possible to
have 3 channels via a T-cable in channel 1. The 3
rd
channel for tilt function
adds value for the patient and the caregiver.
Usage:
• CBJ Care with internal charger: Nominal current draw max. 400 mA
Power consumption (standby) max. 2.5 W
Power consumption (charging) max. 19 W
• Duty cycle: Max. 10 % or 2 min.continuous use then 18 min. without use
• Ambient temperature: +5° to +40°
• Storage temperature: -10° C to +50° C
• Approvals: Approvals: IEC60601-1, ANSI / AAMI ES60601-1, CAN/CSA-22.2 No 60601-1
Australia deviation, for one, two or three actuators, (lift, leg spread and tilt actuator), Canadian deviation
• For up to three actuators (lift, leg spreader and tilt of the sling)
4. CBJ-Care (MEDLINE
®
CARELINE
®
)
Recommendations
• When using the learn mode function, the lift will never be able to lift more than 1.5 times the max. load. The actuator will not stop exactly at the
load it has been adjusted to as the actuator uses less current when its components have been run in. When the max. current value has been
registered using the learn mode function, the control box will be able to use max. current +10 %. This ensures that the lift is capable of lifting
the set load, however it cannot lift more than 1.5 times of the set load.
• When registering current limits, be aware to use a defined set of actuator and control box
• The ambient temperature must be approx. 20 ºC +/- 5 %
• The difference between the highest and lowest load must not be more than max. 10 %
• To activate the learn mode function, use the special hand control (HB7x235-00)
• If an actuator or CBJ Care is exchanged, it is necessary to reset the max. load to ensure the correct cut-off value for the new system
• Always use fully charged batteries for learn mode procedures
• A max. cut-off value of 11 Amp can be registered (stored)
• The tolerance for preset current cut-off is: +/- 1 Amp
• The current cut-off value can be reset by means of the learn mode function, however this is not in accordance with EN10535
Instructions for uses
• Before start-up we recommend to reset the service counters – days and cycles until next service visit. To reset press the up and down button on the
control box or the hand control for 5 seconds. An audio signal will confirm the resetting.
• When charging, the CBJ Care will not be able to operate any actuators.
• It is not possible to use other battery types than BAJ1 or BAJL with the CBJ Care.
• Use only original LINAK mains cables to ensure proper connection to internal charger.
• The green battery indicator (100% to 50% capacity remaining) will light up during charging even though the battery is not fully charged.
It is necessary to use the “CHARGE” diode to indicate whether or not the battery is fully charged (when using internal charger).
The CHARGE indicator will light up during charging and turn off when the battery is fully charged.
• When resetting the CBJ Care or updating other settings than using learn mode, the CBJ Care must not be disconnected from the battery and
the emergency stop must not be activated within a time span of at least 10 seconds. This is to ensure the correct storage of the new values to the
memory banks of the CBJ Care.
