Usage:
• The COBO20 is to be used with CU20 (instead of CP20) for applications that need a large battery capacity.
• Ambient temperatures: +5 °C to 40 °C
• Approvals: The COBO20 is EMC approved.
The COBO20 is designed in accordance with the following standards: 60601-1/ UL2601 and EN60601-1-4.
• When running on batteries CU20 will shut down after 2 minutes to save power.
Recommendations
• Choose CU200XXXXX2XXXX if positioning/memory function is to be used.
• After activation of emergency stop it can take up to 10 seconds before the system can be used again.
• If own battery package is used, a10A fuse must be added.
• It is recommended that the COBO20 is serviced according to the relevant national norms for the applications in which it is used, however all
electrical parts must be checked at least once a year.
• The COBO20 should be cleaned regularly, in order to maintain good hygiene. It is not allowed to use chemicals to clean the box.
• Only use COBO20 together with CU20.
Warning
In order to avoid injury, the emergency stop should be activated in (all) transport situations.
The COBO20 makes increased battery power available (compared to
BA20). It is designed to be used with CU20 together with BAJ1 or BAJ2
(24 V, 2.9 AH). It is also possible to connect other 24 V lead acid or SLA
(Sealed Lead Acid) battery types.
COBO20 with internal charger has a green and a yellow light. Green is ON when the COBO20 is connected to mains. Yellow is ON when charging.
The yellow light shines constantly until batteries are fully charged.

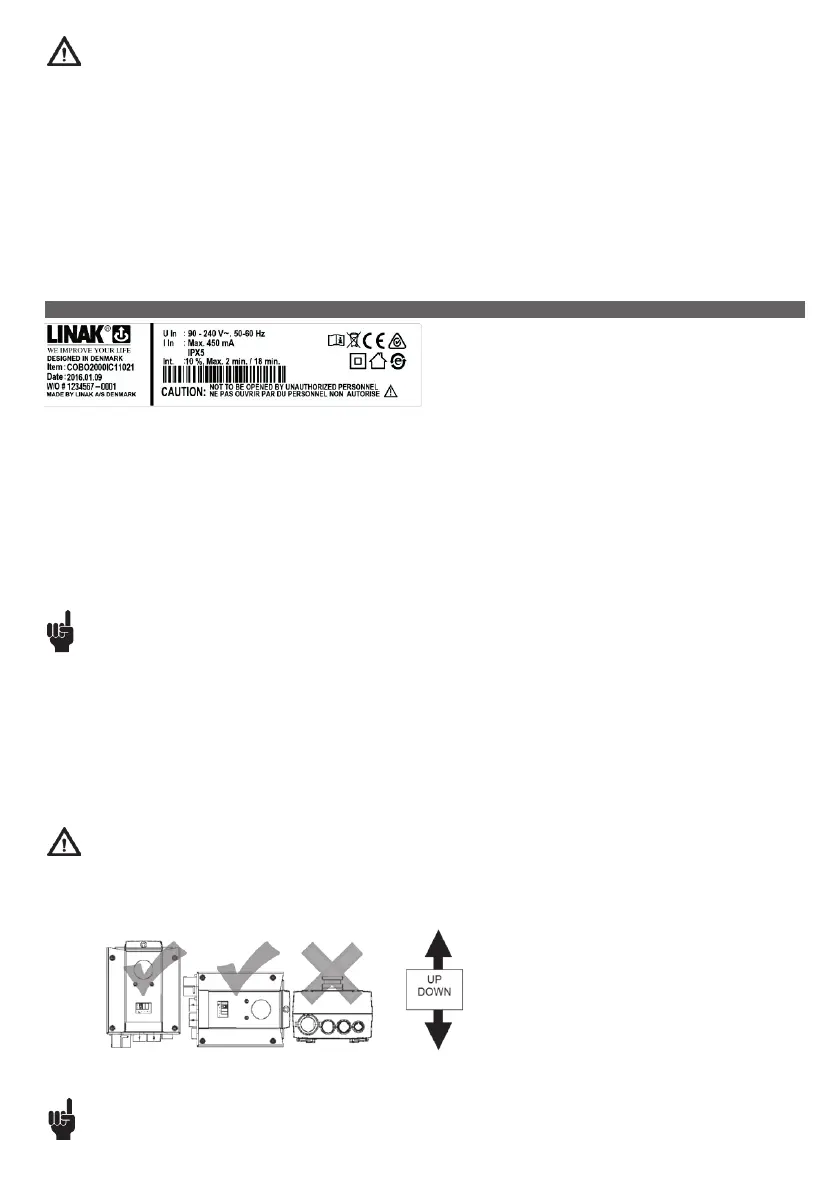

Mounting of COBO20
Special care should be taken when mounting the COBO20:
As long as the COBO is mounted correctly then the COBO20 complies to IPX5. If the COBO is mounted incorrectly then water will gather
around the screw holes resulting in non-compliance with IPX5.
7. COBO20 (MEDLINE
®
CARELINE
®
)
Warnings
• Pay attention to the polarity of the customer battery cable - red is positive voltage.
• In order to avoid injury, the emergency stop should be activated in (all) transport situations.
• If 24V lead acid customer batteries or fixed power supply is used, the supply source must comply with “Means Of Patient Protection” and
“Means Of Operator Protection” in accordance with the Medical Safety Standard.
• If 24V lead acid customer batteries or fixed power supply are used, the customer must ensure that EMC values are kept in accordance with
regulations.
• The CU20 power port/channel 7 cannot be used with COBO.
• Max 1 ACT can be connected to the COBO system.
• The COBO is not to be used in agricultural or maritime applications or be connected directly to a vehicle battery.
