Page 183 of 192
12. SLS (MEDLINE
®
CARELINE
®
TECHLINE
®
)
LINAK has designed a switch that can be mounted in connection with the 24V DC actuators: LA12, LA22, LA28,
LA28S, LA31, LA32, or LA34 and a control box on e.g. a bed frame.
The Safety Limit Switch (SLS). The SLS Switch is primarily used as a Limit Switch in systems consisting of a control
box, LA28/28S and/or LA32.
As an example the SLS can be installed on the actuator cable where it disconnects the actuator in either inward or
outward direction when activated. The SLS can also be used as a signal control directly connected to a control box.
The SMPS30 is a very powerful Switch Mode Power Supply typically used
for Treatment or Examination Couches. The SMPS30 is an eco-friendly
solution due to a low standby power consumption compared to tradi-
tional transformer solutions. The universal input voltage makes the SMPS
adaptable to the worldwide market irrespective of the input voltage.
Usage:
• Compatibility: LA43 IC, LA44 IC
• Duty Cycle*: 10%, 2 minutes continuous use followed by 18 minutes not in use.
• Operating temperature: 5 °C to 40 °C
• Storage temperature: -10 °C to 50 °C
• Relative humidity: 20 % to 90 % @ 30 °C – not condensing
• Atmospheric pressure: 700 to 1060 hPa
• Altitude: max. 2000 metres above sea level
• Approvals: IEC60601-1:2005 3
rd
ed., ANSI / AAMI ES60601-1:2005, 3
rd
edition, CAN / CSA-22.2 No 60601-1:2008
* AT 10% DUTY CYCLE, MAX. OUTPUT POWER IS POSSIBLE AT AN AMBIENT TEMPERATURE OF 25°C
13. SMPS30 (MEDLINE
®
CARELINE
®
)

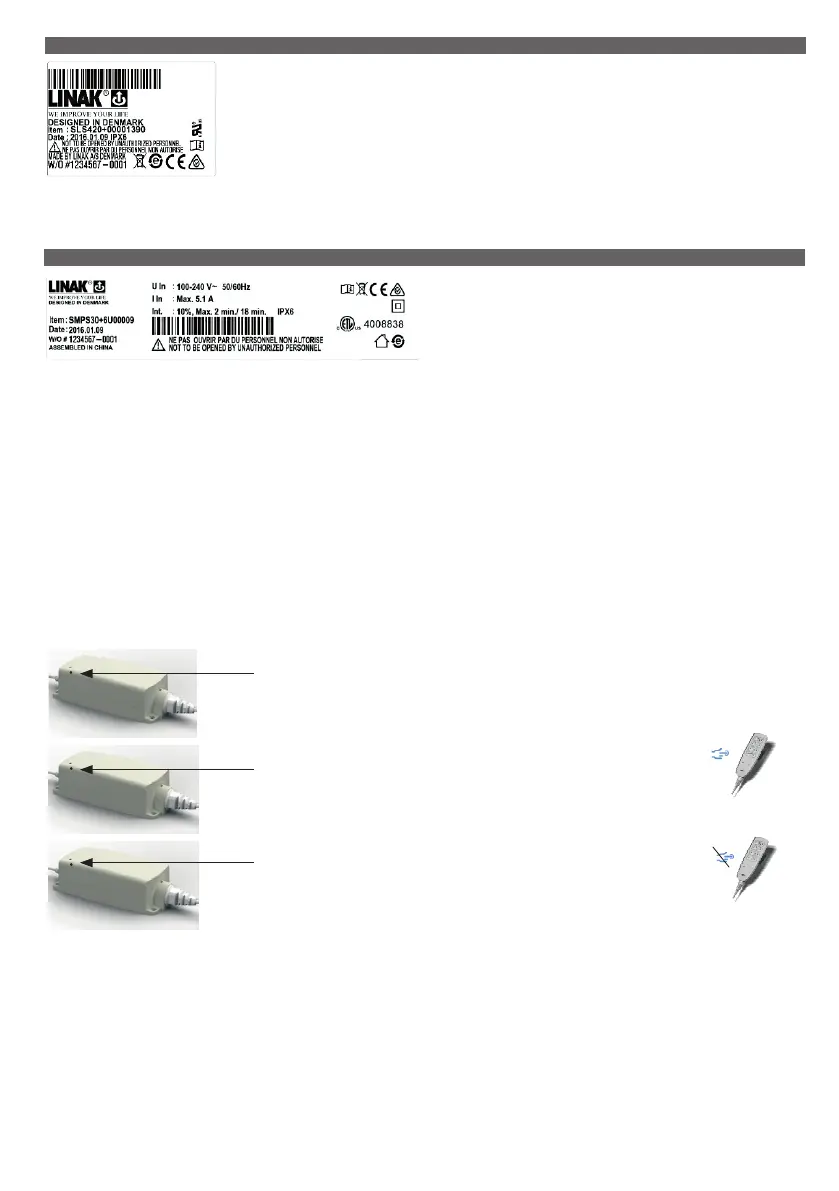

Safety concept:
DC power is only on the application when needed – when the hand control is activated.
The user is part of a safety concept with light indications showing:
Connected to the mains
Green light when connected to the mains
Power request
Yellow light at power request when the hand control is activated
Check of functionality
Yellow light is turned off when releasing a hand control button – otherwise the
hand control or other components in the application are defective. If so, the user
must call for service.
The SMPS30 is designed for placing on the floor, but it can also be mounted on the wall / application via the bottom base plate
and 4 screws.
If the SMPS30 is mounted on the wall/application, please dismount the SMPS30 to get access to the cable locking mechanism on the mains cable.
