Page 32 of 192

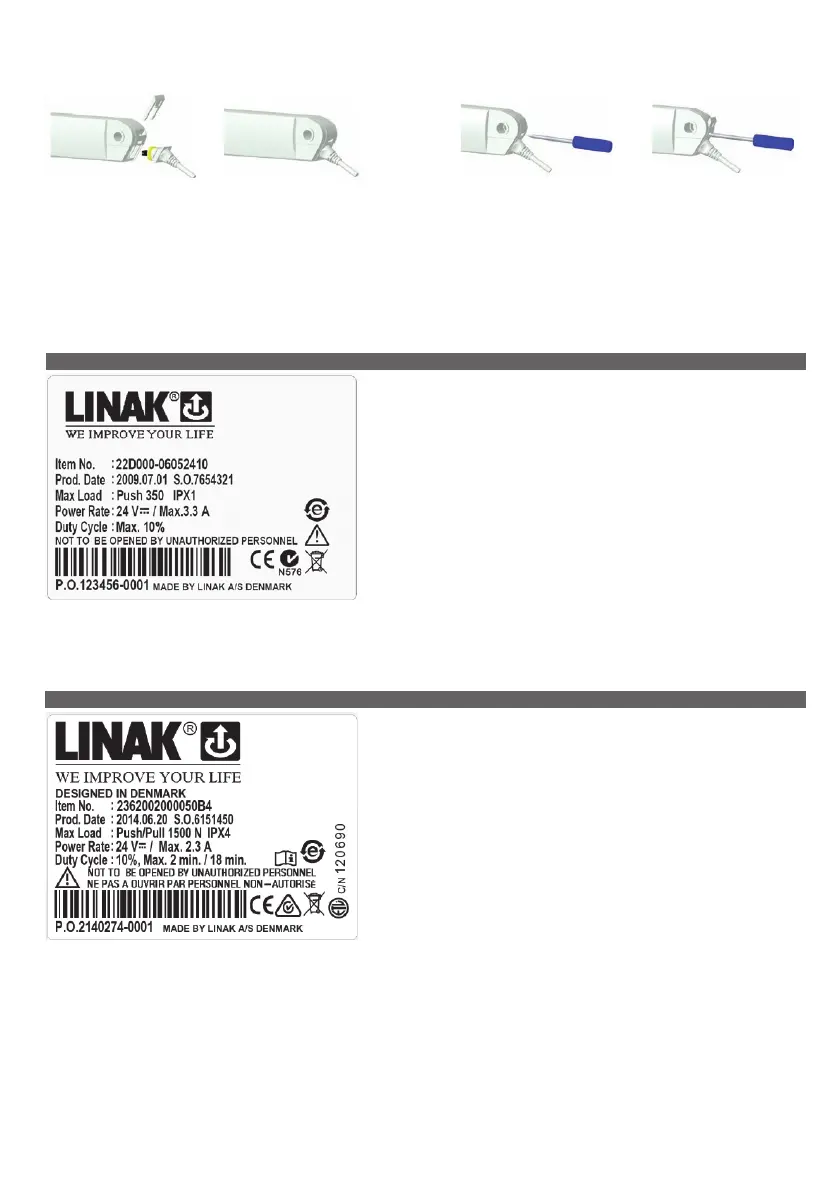

Cable mounting
A: To mount a cable
Step 1:
Place a screwdriver in the hole in
the back ficture of the actuator
Step 1:
Place the cable in the actuator
Step 2:
Press the cable lock down into place
B: To remove/change a cable
Step 2:
Push to remove the cable lock
an remove/change the cable
The LA22 is an in-line actuator specially designed with a small overall dimension for
easy use in industrial, agricultural, and rehabilitation products.
Thanks to its small outer dimensions and linear design, the LA22 is well suited for
applications where installation space is limited, such as on wheelchairs.
2. LA22 (MEDLINE
®
CARELINE
®
TECHLINE
®
)
The LA23 is a small and strong push actuator (up to 2500 N). The LA23 can be used
in various applications where size is important. The LA23 is e.g. ideal for adding tilt-
function to a desk, so the table top can tilt or for adjustment in handicap kitchens.
Some of the benefits the LA23 offers you are:
• Compact design
• High lifting force
• Exchangeable cables
Usage:
• Duty cycle: 10 %, 2 minutes continuous use followed by 18 minutes not in use
• Usage temperature: +5 °C - +40 °C normal operating temp.
-30 °C - +50 °C according to test conditions: ISO 7176-9
• Storage temperature: -45 °C to +70 °C (according to ISO 7176-9)
• Compatibility: DESKLINE Control boxes.
SLS must be ignored Up + Down in the CBD4, when configured for LA23 and in the CBD6S with old actuators.
• Approved according to EN60335-1 with CBD6S
• Flammability rate: Enclosure UL94-V0
• Cycles: The LA23 Life cycle test has been performed with a stabilised power supply (10 % duty cycle) on a 200 mm stroke
actuator at max. load at 5000 cycles
3. LA23 (DESKLINE
®
)
