Change factory
settings
Each meter is calibrated at the factory for
use with motor oil († Change scale factor ,
page 11). The unit of measure is also se-
lected prior to shipment.
Verify firmware version
1 The firmware version and code checksum
can be displayed by holding the total and
1 button at the same time.
2 The last two digits on the lower right are
the firmware version.
3 Meters with version 18 or higher use the
procedure outlined in this manual for
changing the unit of measure, scale factor
and enabling or disabling the EPM
functionality.
Programming
To change the factory settings:
1 Push and hold at the same time the
total and auto buttons.
2 PrG will appear on the display.
3 Release the total and auto buttons.
4 Then press and release in order the 1,
auto, 10, 0.1 and the total buttons.
5 The current unit of measure will now be
flashing indicating that you have entered
the programming mode.
Change unit of measure

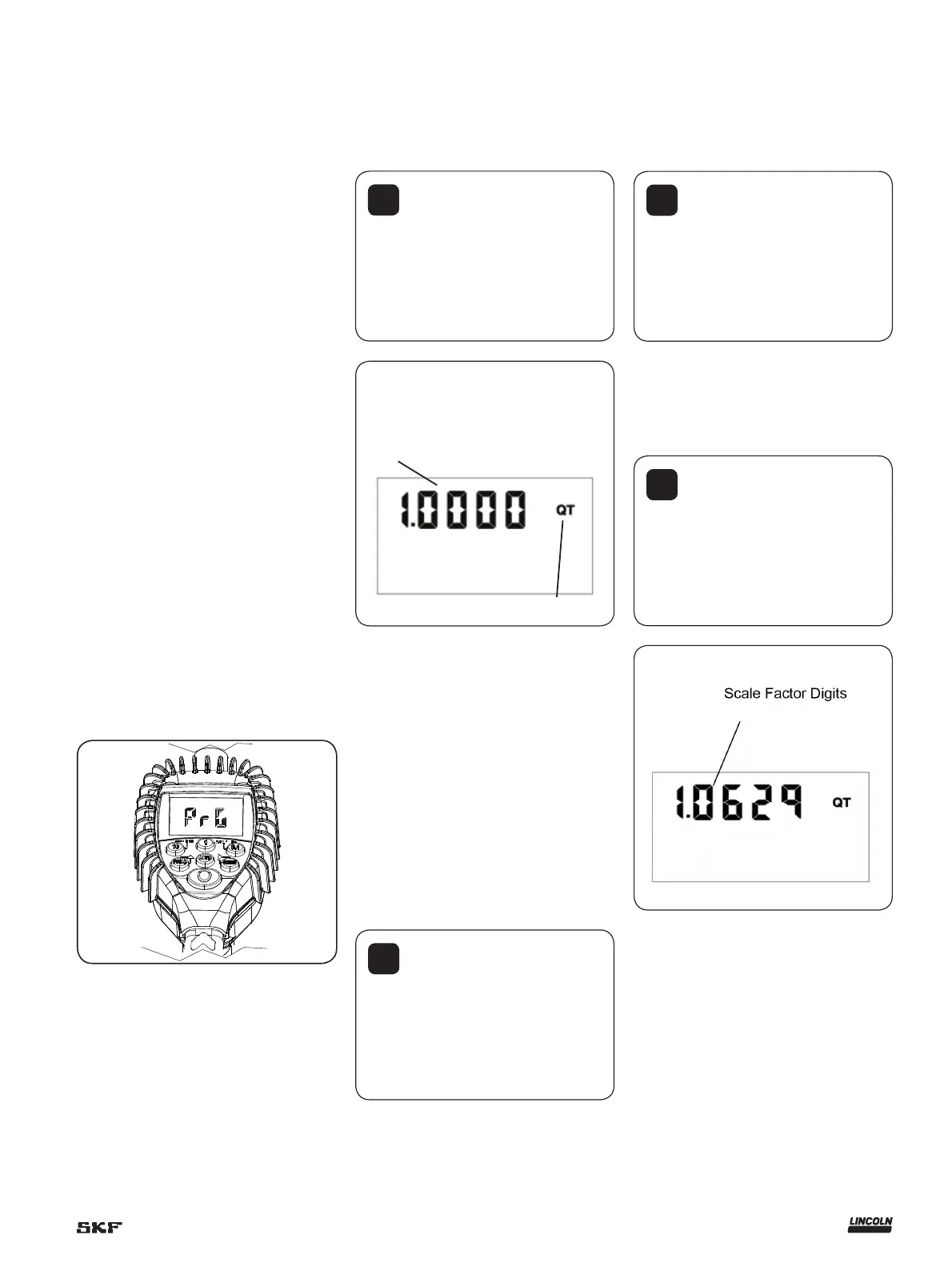

Programming display
Scale factor digits
Unit of
measurement
1 Press the total button to toggle between
the four options; pt, qt, gal, l.
2 When the desired unit of measure is
displayed, press the reset button.
3 If L, (Liters), is selected, the decimal point
begins to flash.
3.1 You now have the option to change
the decimal point to either a period or
a comma.
3.2 To do this, press the button.
4 If no scale factor changes are necessary,
refer to Save changes.
!
Notice
Actual unit of measure is flashing
when programming mode is entered.
Meter has option of four different
units of measure from factory.
!
Notice
Changing unit of measurement
from metric to English or from English
to metric clears re-settable total and
accumulated total.
Change scale factor
1 To view the current scale factor:
2 Press the reset button to advance
through the scale factor digits.
!
Notice
All digits can be scrolled between
0 and 9 except first. It can only be
scrolled from 0 to 1 or from 1 to 0.
3 Press the total button to change the
selected number.
4 Press the reset button to advance to the
next number in scale factor.
5 Repeat steps 2 and 3 for all five digits in
scale factor.
!
Notice
Changing scale factor changes ac-
curacy of meter, potentially causing it to
overfill or under fill. Potential for a
mechanical breakdown may exist.
Programming display
Scale factor display
11
