LCD display
1
2
3
4
5
6
7

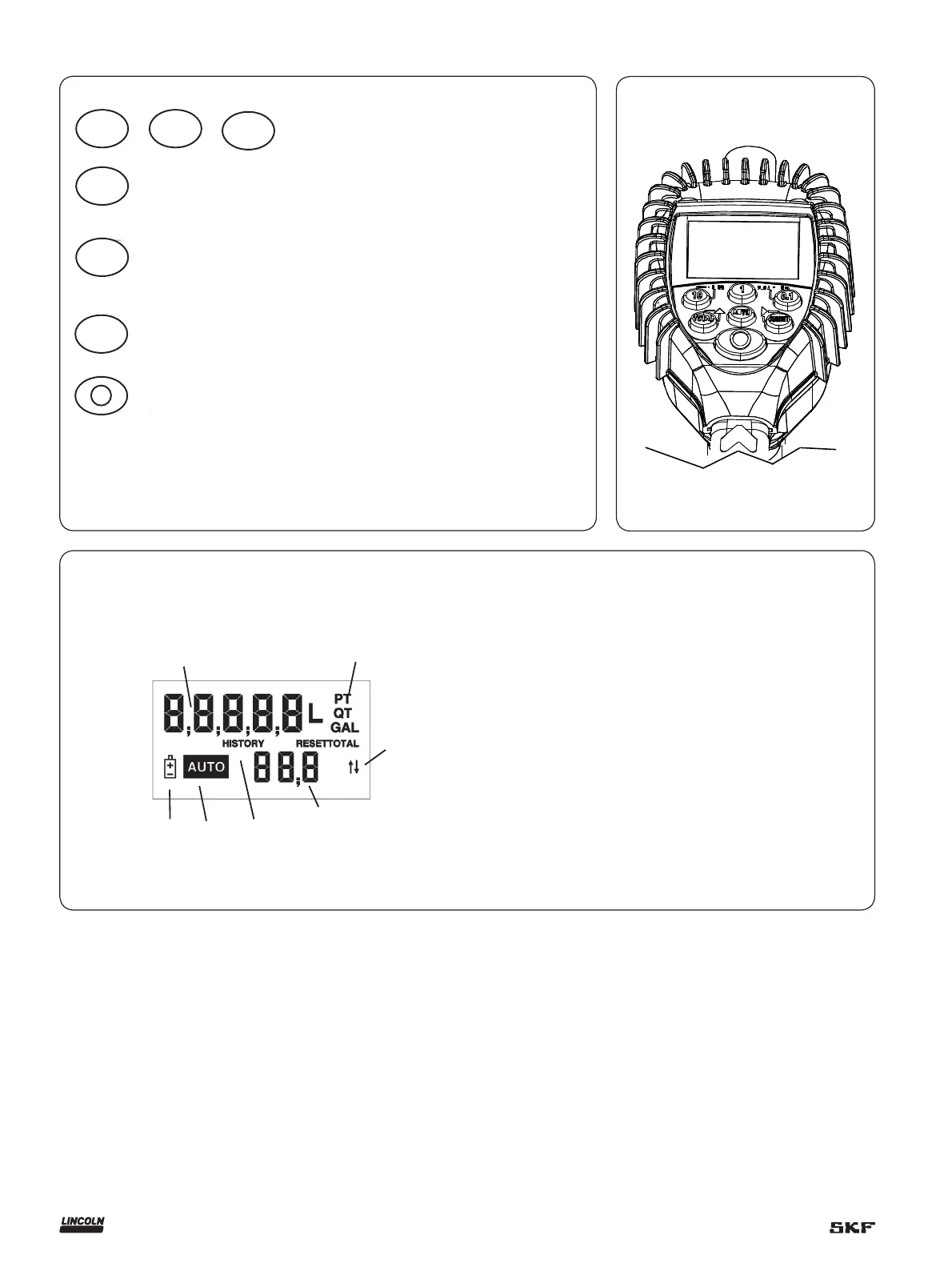

Meter display
Meter buttons
Used to enter the dispense batch quantity when
in the EPM mode.
Total is used to display the accumulated total of
fluid dispensed, as well as the re-settable total
Auto is used to enter and exit the manual or
batch mode.
Reset is
• used in EPM mode to clear the previous batch.
• used to reset the re-settable total dispensed
while pressing the TOTAL button.
Shut-off or stop is used to stop the flow through
an emergency override.
To ta l
Auto
10 1
0.1
Reset
1 Displays re-settable total, accumulated total and scale factor.
2 Displays unit of measure.
3 Arrows - not used on this version.
4 Preset batch quantity.
5 History icon - not used on this version.
6 AUTO indicates EPM mode.
7 Low battery icon.
