5 Servicing
Inspection and maintenance every 3000 operating hours or every 2 years
Change pressure filter
ENVIRONMENT NOTE
Take note of information about working ma-
terials. Hydraulic oil will escape so place a
collection vessel underneath beforehand.
¾ Fully lower fork carriage.
¾ Press emergency cut-off knob and remove
key switch.
¾ Remove rubber mat from floor pla
te.
¾ Remove floor plate.
¾ Clean housing of pressure filter, outside
and on upper cover.

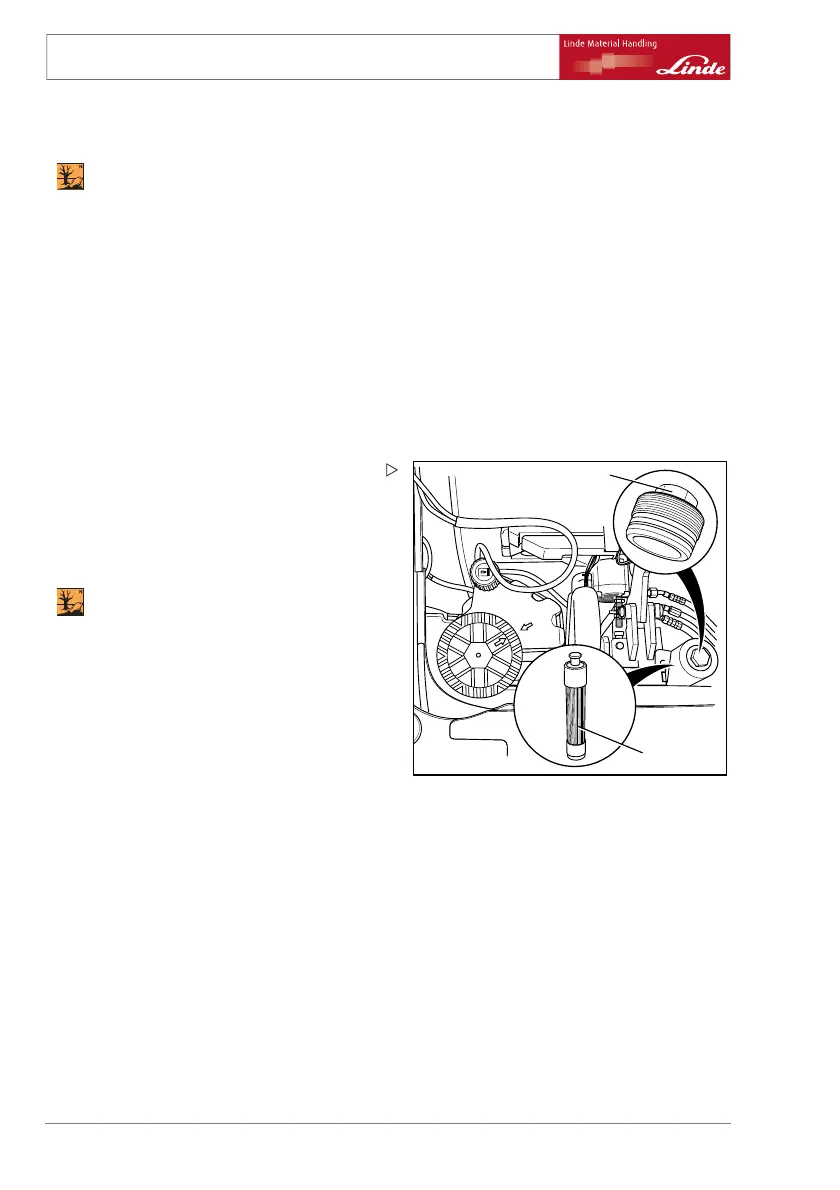

e3861376
2
1
¾ Unscrew filter cover (1) from pr
essure filter
using a socket or ring wrench.
¾ Slowly pull out filter insert (2) from filter
housing.
¾ Collect oil drips in a vessel.
ENVIRONMENT NOTE
Dispose of old filter insert and
oil in an environ-
mentally friendly manner.
¾ Fit new filter insert (2) in pressure filter.
¾ Screw filter cover (1) back onto pr
essure
filter.
Tightening torque: hand-tighten (10
+5
Nm)
and then loosen a 1/4 turn.
¾ Check pressure filter for leakage.
¾ Vent hydraulic system.
