Inspection and maintenance every 3000 operating hours or every 2 years
Suction filter
ENVIRONMENT NOTE
Take note of information about working mate-
rials.
¾ Fully lower fork carriage.
¾ Press emergency cut-off knob and remove
key switch from switch latch.
¾ Remove rubber mat from floor plate.
¾ Remove floor plate.
e3861377
1
1
2

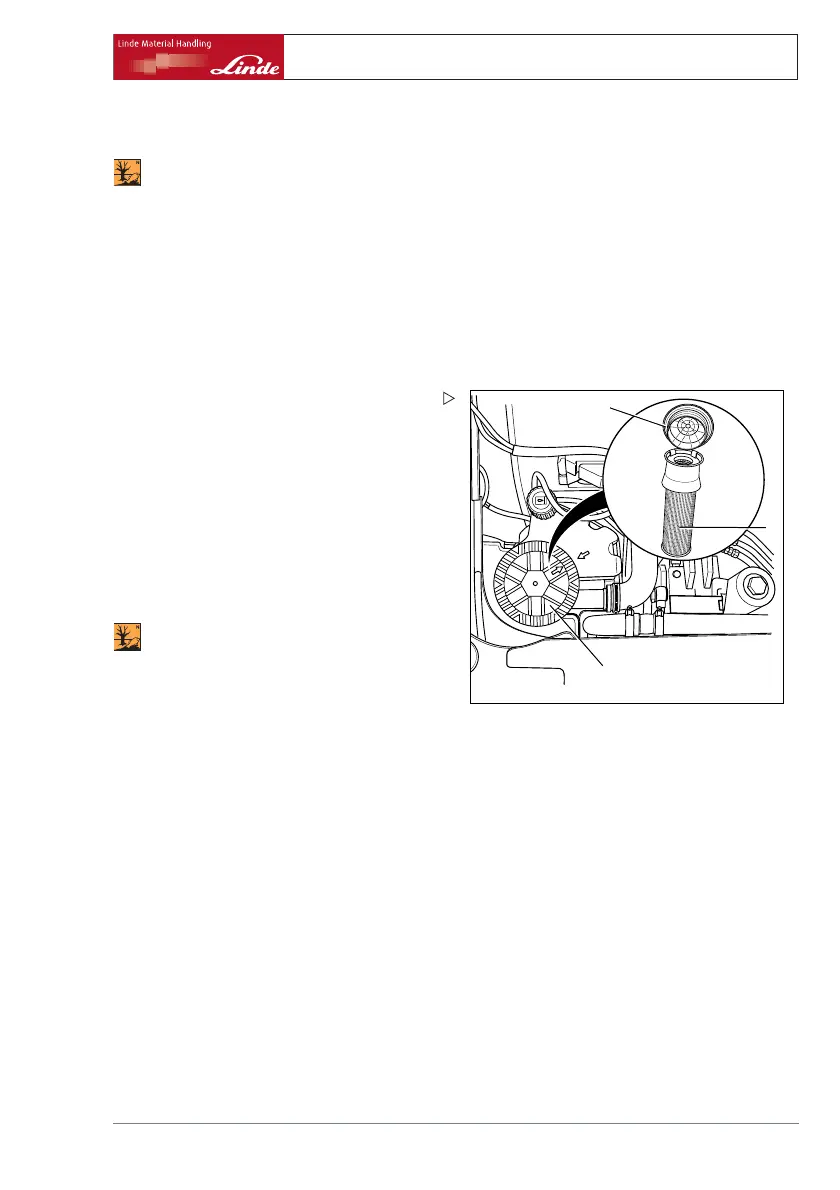

¾ Remove filter cover (1) by turning anti-clock-
wise.
¾ Slowly pull out filter cartridge (2) so oil can
run back into hydraulic tank.
¾ Remove filter cartridge entirel
y.
¾ Unscrew breather.
¾ Remove cover (1) from old suction filter
insert (2).
¾ Fit cover (1) onto new filter inse
rt.
ENVIRONMENT NOTE
Dispose of old filter insert and oil in an environ-
mentally friendly manner.
¾ Clean seal of filter cover and wet with oil.
¾ Carefully insert new filter cartr
idge in hy-
draulic tank.
¾ Turn filter cover clockwise to arrest.
Observe arrow marking on cover and hy-
draulic tank. When closed properly, arrows
should match up.
¾ Screw breather back on.
¾ Check for leakage of filter cover (1) during
trial run.
