eMerge Essential Plus Power Connection
e eMerge Essential Plus includes a factory installed power supervision module as shown in
Figure 4.3.
Power Supply Connection
1. Connect the +12VDC PIP (Linear P/N PIP-12V60W) to the red and black leads of the
power supervision module.
2. Connect terminal 2 or 3 of the PIP to the green earth ground lead provided in the enclosure.
3. Plug the PIP into a dedicated receptacle that is not controlled by a switch.
4. e PWR LED on the panel will illuminate to indicate that power is present.
5. Place the 12VDC backup battery in the cabinet.
6. Connect the red and black leads to the battery.
+12V LED Buzzer D0 D1 GND INPUT GND INPUT GND +12V LED Buzzer D0 D1 GND NC C NO +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND +12V LED Buzzer D0 D1 GND NC C NO
AUX IN 2
GND
AUX IN 1
GND
AUX IN 4
GND
AUX IN 3
GND
NC
C
NO
NC
C
NO
AUX
RLY 4
AUX
RLY 3
NC
C
NO
NC
C
NO
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO +12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO
DOOR 1DOOR 2
DOOR 3DOOR 4
TMP -
TMP +
FLT -
FLT +
GND
12VDC
AUX
RLY 2
AUX
RLY 1
To 12VDC PIP
Fault Output
Tamper Switch
12VDC Earth GND
GND
1 2 3 4
+12VDC PIP
P/N PIP-12V60W
Earth
Ground
Lead

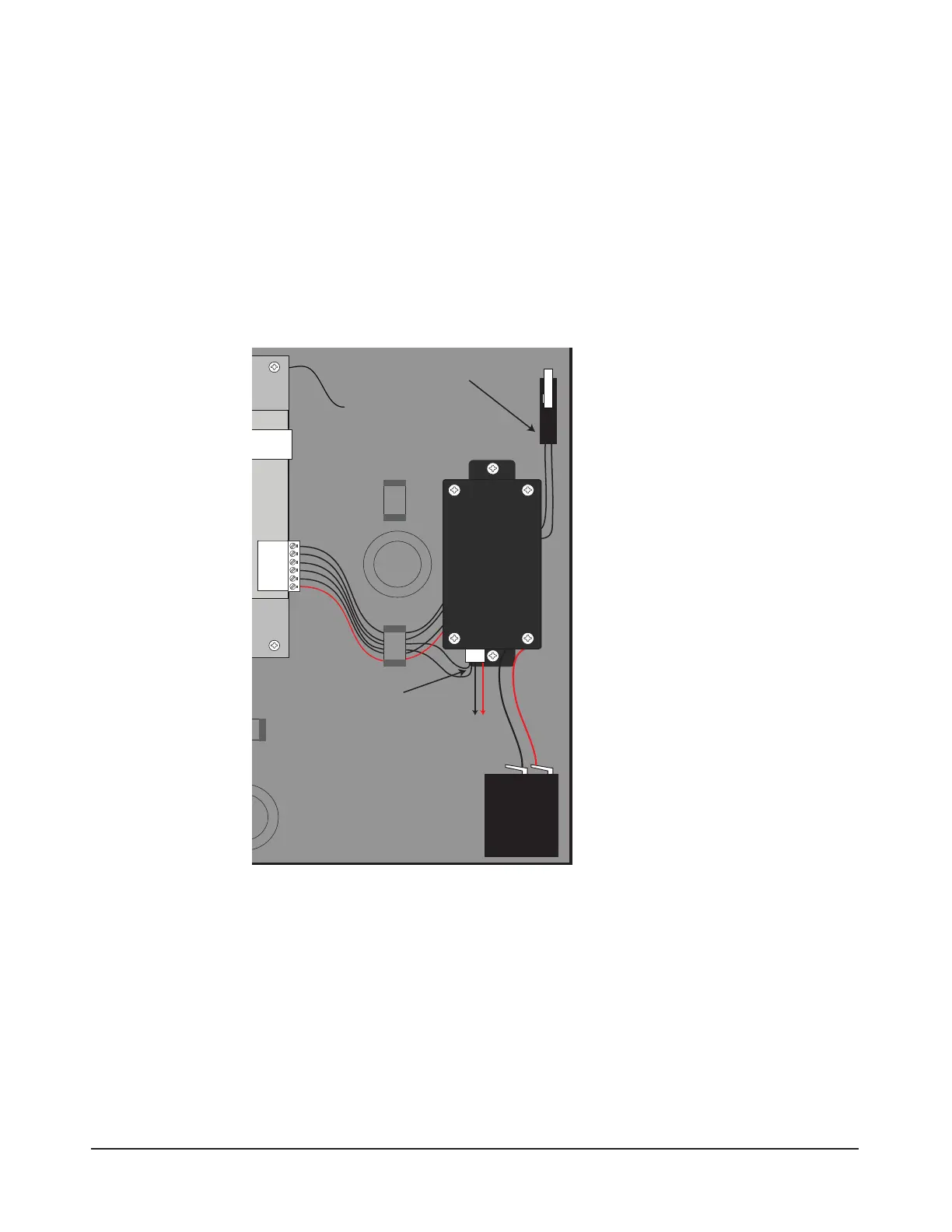

Figure 4.3. eMerge Essential Plus Power Connection
Battery Connection
e eMerge Essential Plus provides charging and space for up to two 12VDC/7Ah sealed lead-acid
batteries. e battery provides standby power when the primary power source is lost. e control
panel will utilize backup battery until the battery reaches 11VDC at which point the entire
system shuts down.
Note: The SD card slot
(shown earlier in Figure
2.1) will backup panel
memory in the absence of
power or backup battery.
Cable Specications for
PIP: 14 AWG Belden (2
conductor) or equivalent.
Maximum distance: 10
feet (3 meters).
Note: The system will not
power up using the back
-
up battery. The 12VDC
PIP (P/N PIP-12V60W)
or PoE (P/N 620-100159)
must be present to power
up the system.
Note: It is recommended
to replace the system bat
-
tery every 2 to 3 years.
