www.linearcorp.com 8 eMerge Essential Installation Manual
Mounting the eMerge Essential Plus Panel
e eMerge Essential Plus enclosure is designed to accommodate two 12VDC 7Ah backup batter-
ies and the necessary wiring connections for most installations. Conduit knock-outs are provided
on all sides of the enclosure. e enclosure should be mounted in a secure location within normal
temperature levels. A minimum of 12 inches of space around all sides of the enclosure is recom-
mended.
Installing the eMerge Essential Plus
1. Run all necessary wires to the panel location.
2. Remove the enclosure’s cover by removing the front of the housing.
3. Remove the metal cabinet knock-outs required for wire entry.
4. Level the enclosure on a sturdy wall. Mark the mounting holes with a pencil. (e cabinet
can be vertically or horizontally mounted depending on space requirements.)
5. Partially insert screws into the top two mounting holes and hang the enclosure on the screws.
6. Pull all wires through the knock-out holes in the enclosure. Label each wire according to its use.
7. Recheck for levelness, insert the two lower screws, and tighten all four mounting screws.

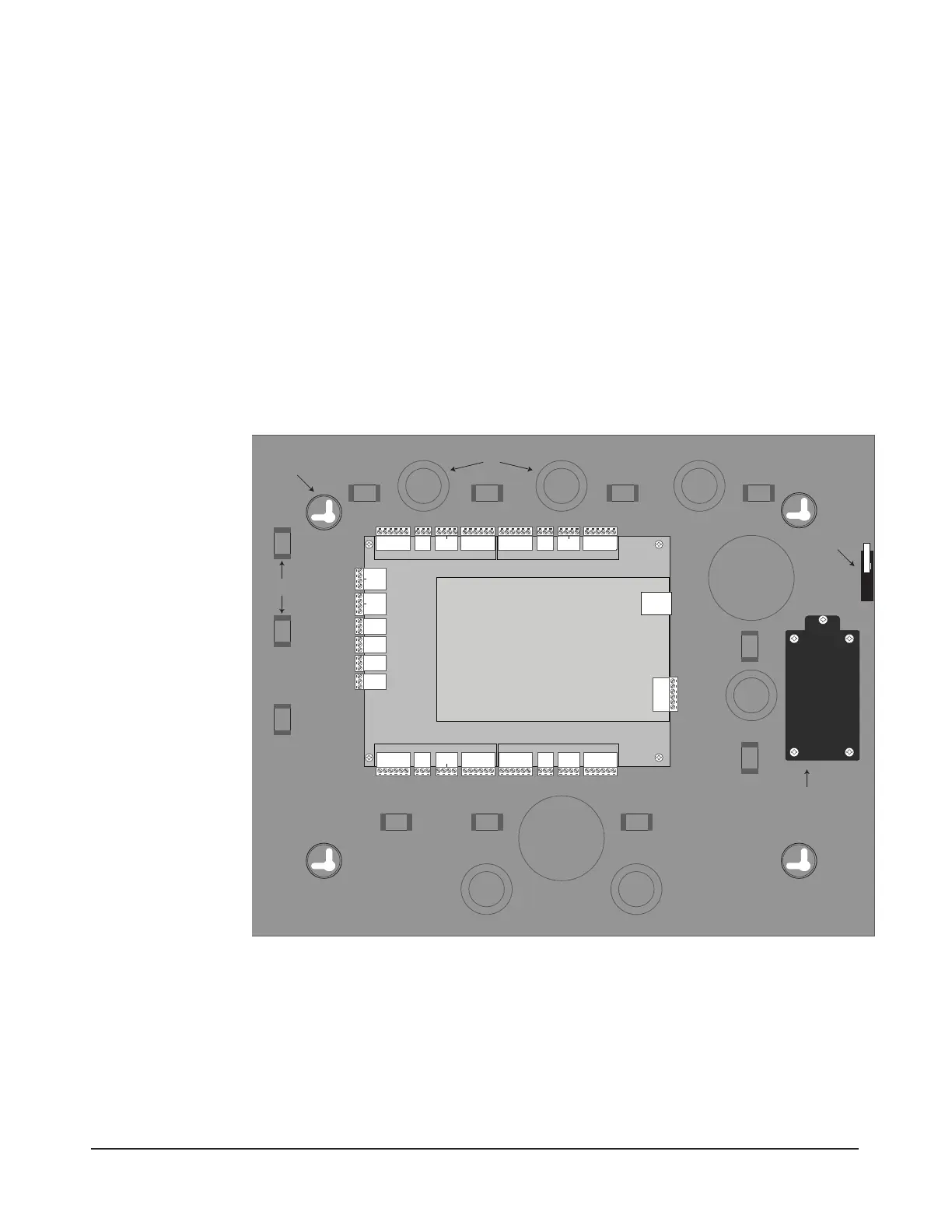

DOOR 1DOOR 2
DOOR 3DOOR 4
Tie wrap holders
Mounting holes
Cabinet knockouts
Power Supervision
Module
Cover Tamper
Figure 3.2. eMerge Essential Plus Enclosure
Note: Choose a centrally
located, clean and dry
area near an AC power
source. Avoid mounting
the panel within 6 feet
of any equipment that
generates electrical
interference.
Caution: This equipment
includes electronic com
-
ponents that are highly
sensitive to static electric
-
ity. Please discharge by
touching a ground before
installing or handling this
equipment.
