3.0 Installing the Control Panel
Mounting the eMerge Essential Panel
e eMerge Essential housing is designed to accommodate the necessary wiring connections for
most installations. Knock-outs are provided at the back-plate of the housing. e enclosure should
be mounted in a secure location within normal temperature and humidity levels.
Installing the Panel
1. Run all necessary wires to the panel location.
2. Remove the enclosure’s cover by removing the two screws in the front of the housing.
3. Level the enclosure on a sturdy wall. Mark the mounting holes with a pencil.
4. Partially insert screws into the top two mounting holes and hang the enclosure on the screws.
5. Pull all wires through the knock-out holes in the enclosure. Label each wire according to its use.
6. Recheck for levelness, insert the two lower screws, and tighten all four mounting screws.
+12V LED D0 D1 GND INPUT GND INPUT GND +12V LED D0 D1 GND NC C NO +12V LED D0 D1 GND INPUT GND INPUT GND +12V LED D0 D1 GND NC C NO
AUX IN 2
GND
AUX IN 1
GND
AUX IN 4
GND
AUX IN 3
GND
NC
C
NO
NC
C
NO
AUX
RLY 4
AUX
RLY 3
NC
C
NO
NC
C
NO
+12V LED D0 D1 GND +12V LED D0 D1 GND INPUT GND INPUT GND NC C NO +12V LED D0 D1 GND +12V LED D0 D1 GND INPUT GND INPUT GND NC C NO
DOOR 1DOOR 2
DOOR 3DOOR 4
ETHERNET
TMP -
TMP +
FLT -
FLT +
GND
12VDC
AUX
RLY 2
AUX
RLY 1
Enclosure Knockouts
Cover Screw
Cover Screw
Bottom Mounting Holes
Enclosure Knockouts
Mounting Hole
Cover
Tamper
EARTH
GROUND
LEAD

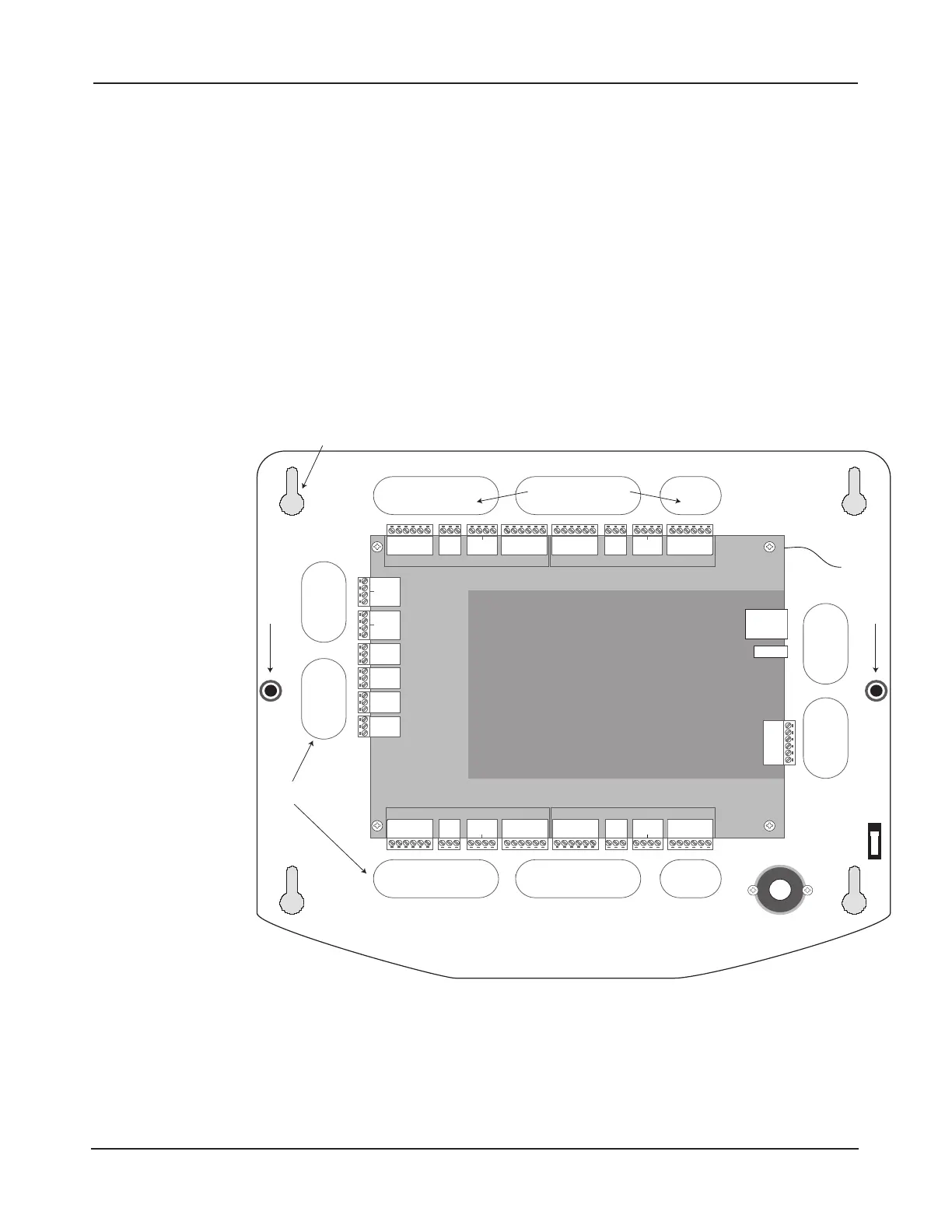

Figure 3.1. eMerge Essential Enclosure
Note: Choose a centrally
located, clean and dry
area near an AC power
source. Avoid mounting
the panel within 6 feet
of any equipment that
generates electrical
interference.
Caution: This equipment
includes electronic com-
ponents that are highly
sensitive to static electric
-
ity. Please discharge by
touching a ground before
installing or handling this
equipment.
Note: This device com
-
plies with Part 15 of the
FCC Rules. Operation is
subject to the following
two conditions: (1) this
device may not cause
harmful interference,
and (2) this device must
accept any interference
received, including inter-
ference that may cause
undesired operation.
