www.linearcorp.com 9 eMerge Essential Installation Manual
4.0 System Power
e eMerge Essential is powered using a 12VDC / 5A plug-in-power supply (Linear P/N
PIP-12VUR, not included). For UL listed installations, please use Linear P/N PIP-12V60W.
e control panel may also be powered using an optional Power over Ethernet (PoE) injector
(requires Linear PoE module, P/N 620-100159).
eMerge Essential Power Connection
Power Supply Connection
1. Connect terminal 1 from the plug-in-power supply (PIP) to pin 1 (+12VDC) on the panel.
2. Connect terminal 3 from the PIP to pin 2 (GND) on the panel.
3. Connect terminal 2 to the green earth ground lead provided in the enclosure.
4. Plug the PIP into a dedicated receptacle that is not controlled by a switch.
5. e PWR LED on the panel will illuminate to indicate that power is present.
AUX RELAY 4
AUX RELAY 3
AUX RELAY 2
AUX RELAY 1
AUX INPUT 4
AUX INPUT 3
AUX INPUT 2
AUX INPUT 1
INPUT GND INPUT GND
+12V LED Buzzer D0 D1 GND
NC C NO +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND +12V LED Buzzer D0 D1 GND NC C NO
AUX IN 2
GND
AUX IN 1
GND
AUX IN 4
GND
AUX IN 3
GND
NC
C
NO
NC
C
NO
AUX
RLY 4
AUX
RLY 3
NC
C
NO
NC
C
NO
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO +12V LED Buzzer D0 D1 GND
INPUT GND INPUT GND
NC C NO
DOOR 1DOOR 2
DOOR 3DOOR 4
AUX
RLY 2
AUX
RLY 1
Enclosure Knockouts
Screw for cover
Enclosure Knockouts
Top Mounting Hole
TMP -
TMP +
FLT -
FLT +
GND
12VDC
12VDC Earth GND
GND
1 2 3
+12VDC PIP
(100-240VAC)
12VDC Earth GND
GND
1 2 3 4
+12VDC PIP
P/N PIP-12V60W
EARTH
GROUND
LEAD

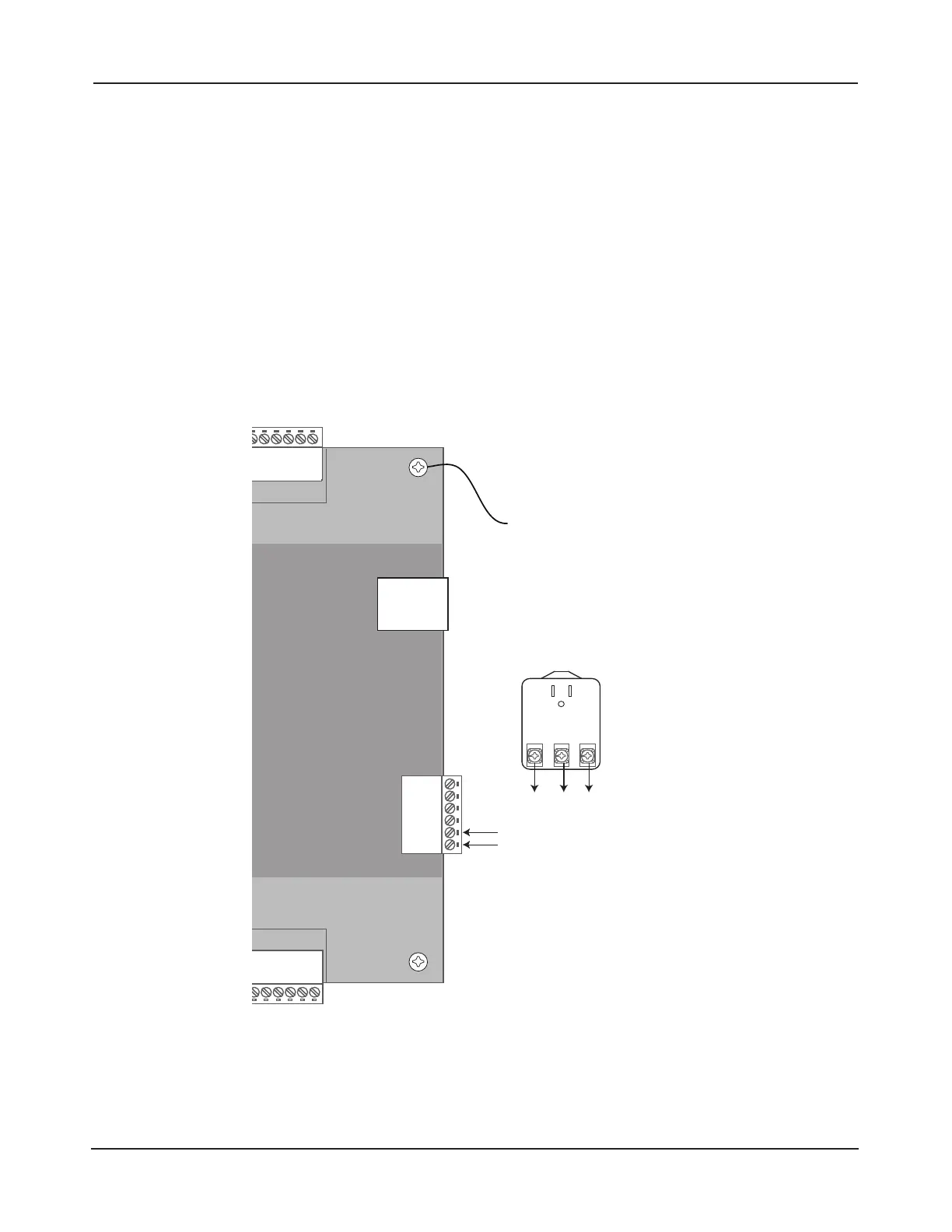

Figure 4.1. Power Connection
Note: The eMerge Es-
sential housing will not
accommodate a backup
battery. If using a backup
battery, a separate hous-
ing must be installed.
Caution: Improper power
wiring will damage the
fuse and void the war
-
ranty.
Cable Specications for
PIP: 14 AWG Belden (2
conductor) or equivalent.
Maximum distance: 10
feet (3 meters).
Note: Power should only
be applied to the system
when all connections are
secured and tested.
