Door Lock Outputs
e door lock outputs for doors 1 through 4 can be congured to operate in normally energized
(fail-secure) or normally not-energized (fail-safe) modes.
Wiring the Door Locks
Connect locking devices to the door relay as shown in Figures 5.3 through 5.5. Refer to the door
strike specications to determine the appropriate voltage and conguration. WARNING: Do not
use the control panel’s power output for the locking device. An auxiliary power supply must be used.
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND +12V LED Buzzer D0 D1 GND NC C NO
AUX IN 2
GND
AUX IN 1
GND
AUX IN 4
GND
AUX IN 3
GND
NC
C
NO
NC
C
NO
AUX
RLY 4
AUX
RLY 3
NC
C
NO
NC
C
NO
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO +12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO
NC C NO
CONTROL PANEL’S
DOOR LOCK RELAY
DOOR 2
DOOR 3DOOR 4
ETHERNET
TMP -
TMP +
FLT -
FLT +
GND
+12VDC
AUX
RLY 2
AUX
RLY 1
DC POWER
SUPPLY
+
-
DIODE 1N4933
OR
EQUIVALENT
DC DOOR STRIKE
DC
POWER
SUPPLY
+
-
MAGNETIC LOCK
1N4002
OR
EQUIVALENT
+
-

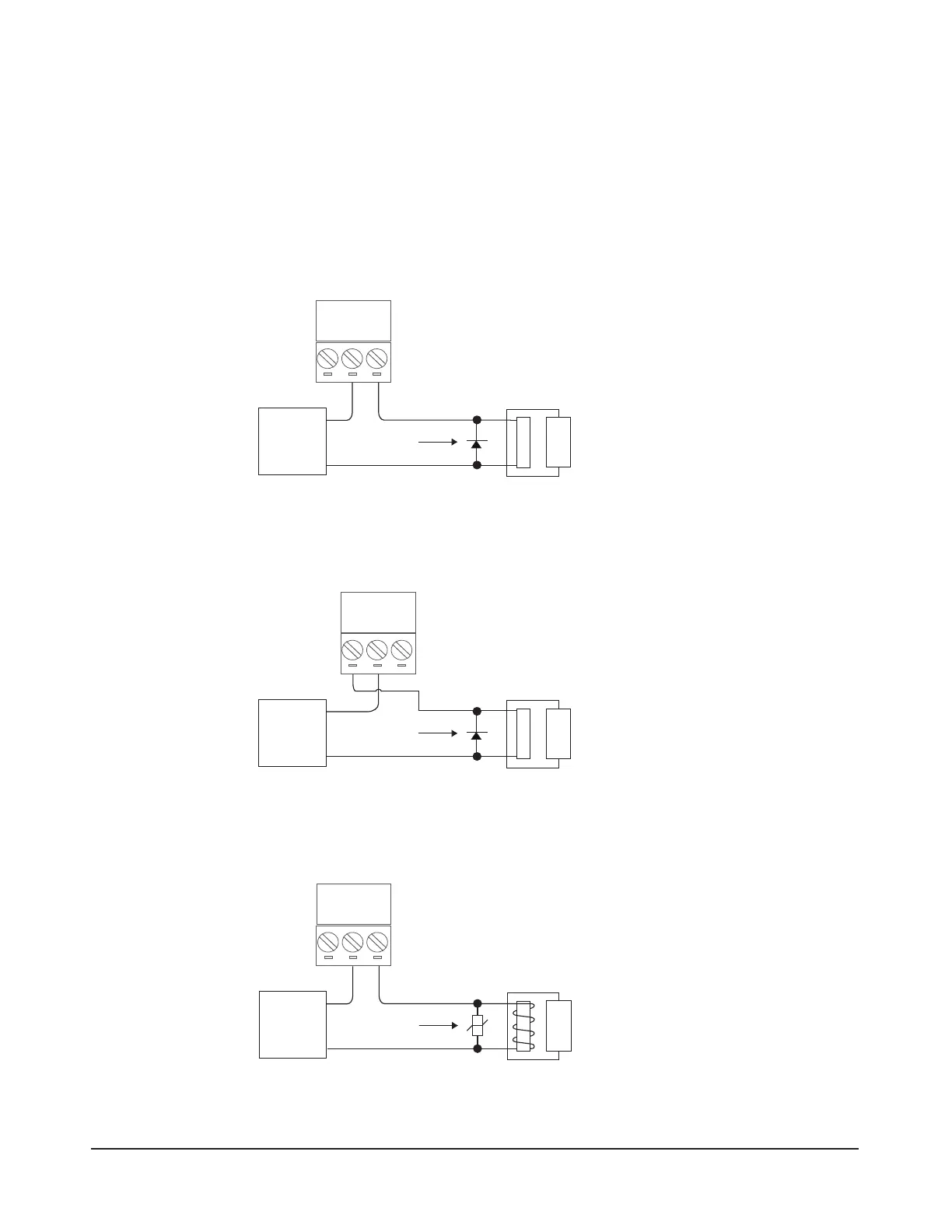

Figure 5.3. Fail Safe DC Door Strike
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND +12V LED Buzzer D0 D1 GND NC C NO
AUX IN 2
GND
AUX IN 1
GND
AUX IN 4
GND
AUX IN 3
GND
NC
C
NO
NC
C
NO
AUX
RLY 4
AUX
RLY 3
NC
C
NO
NC
C
NO
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO +12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO
NC C NO
DOOR 2
DOOR 3DOOR 4
ETHERNET
TMP -
TMP +
FLT -
FLT +
GND
+12VDC
AUX
RLY 2
AUX
RLY 1
DC POWER
SUPPLY
+
-
DIODE 1N4933
OR
EQUIVALENT
DC DOOR STRIKE
DC
POWER
SUPPLY
+
-
MAGNETIC LOCK
1N4002
OR
EQUIVALENT
+
-
CONTROL PANEL’S
DOOR LOCK RELAY
Figure 5.4. Fail Secure DC Door Strike
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND +12V LED Buzzer D0 D1 GND NC C NO
AUX IN 2
GND
AUX IN 1
GND
AUX IN 4
GND
AUX IN 3
GND
NC
C
NO
NC
C
NO
AUX
RLY 4
AUX
RLY 3
NC
C
NO
NC
C
NO
+12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO +12V LED Buzzer D0 D1 GND +12V LED Buzzer D0 D1 GND INPUT GND INPUT GND NC C NO
NC C NO
CONTROL PANEL’S
DOOR LOCK RELAY
DOOR 2
DOOR 3DOOR 4
ETHERNET
TMP -
TMP +
FLT -
FLT +
GND
+12VDC
AUX
RLY 2
AUX
RLY 1
AC POWER
SUPPLY
MOV SNR-D56K2
OR
EQUIVALENT
AC DOOR STRIKE
DC
POWER
SUPPLY
+
-
MAGNETIC LOCK
1N4002
OR
EQUIVALENT
Figure 5.5. Fail Safe AC Door Strike
Caution: The diode or
MOV must be installed
as shown in the illustra-
tions. Failure to install
these protection devices
may damage the control
board.
