LINET Sprint 200

D9U001ES2-0101_02 57

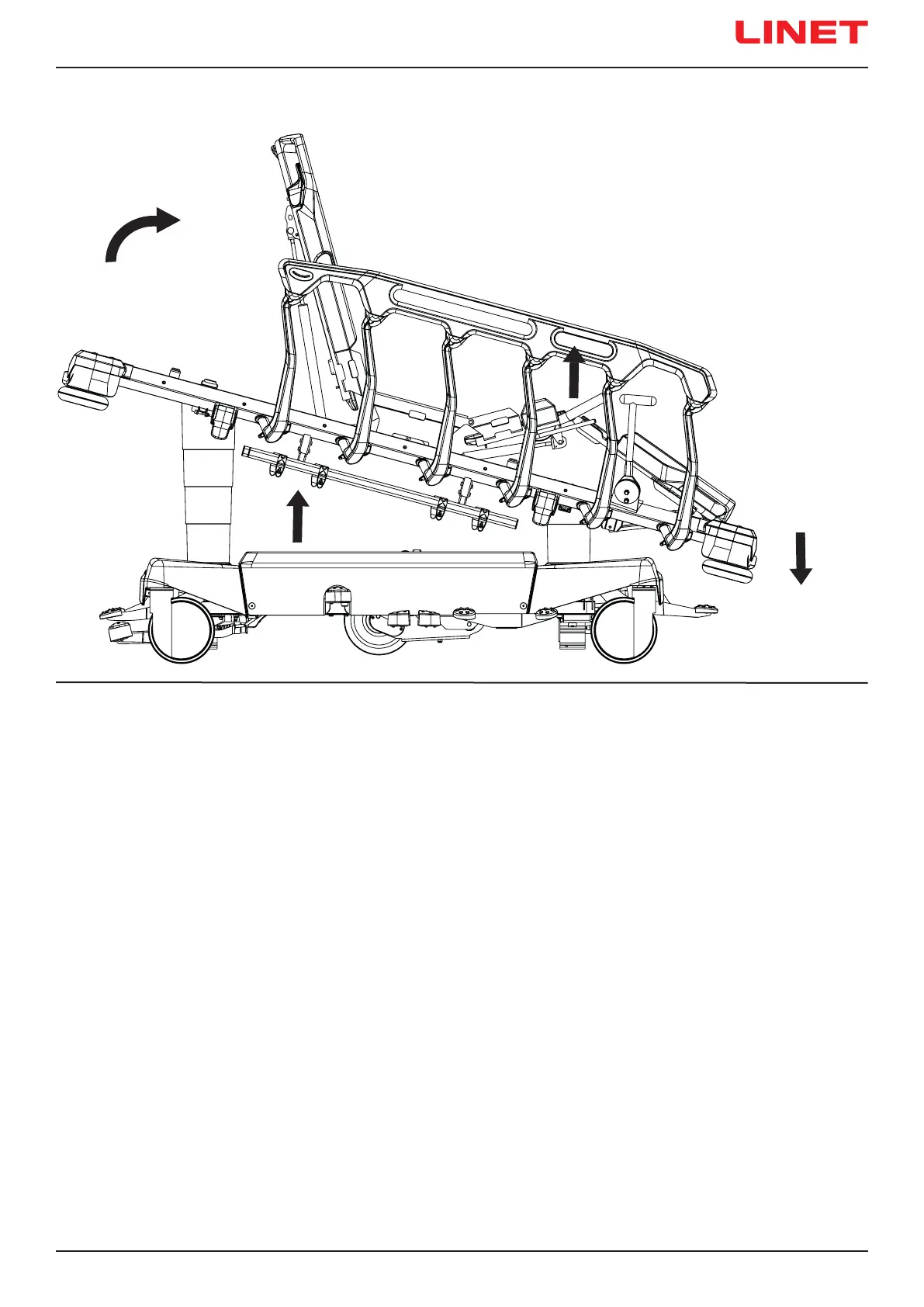

12.3.8 Cardiac Chair Position (only 4-part Mattress Support Platform)
1 4
5
2
3
To reach Cardiac Chair Position:
► lift the Mattress Support Platform to facilitate Thighrest and Backrest positioning (1)
► lift the Thighrest (2)
► lift the Backrest (3)
► lift the Mattress Support Platform to the maximum position (4)
► use Foot End Lowering pedal until intended position is reached (5)
