D9U001ES2-0101_02
79

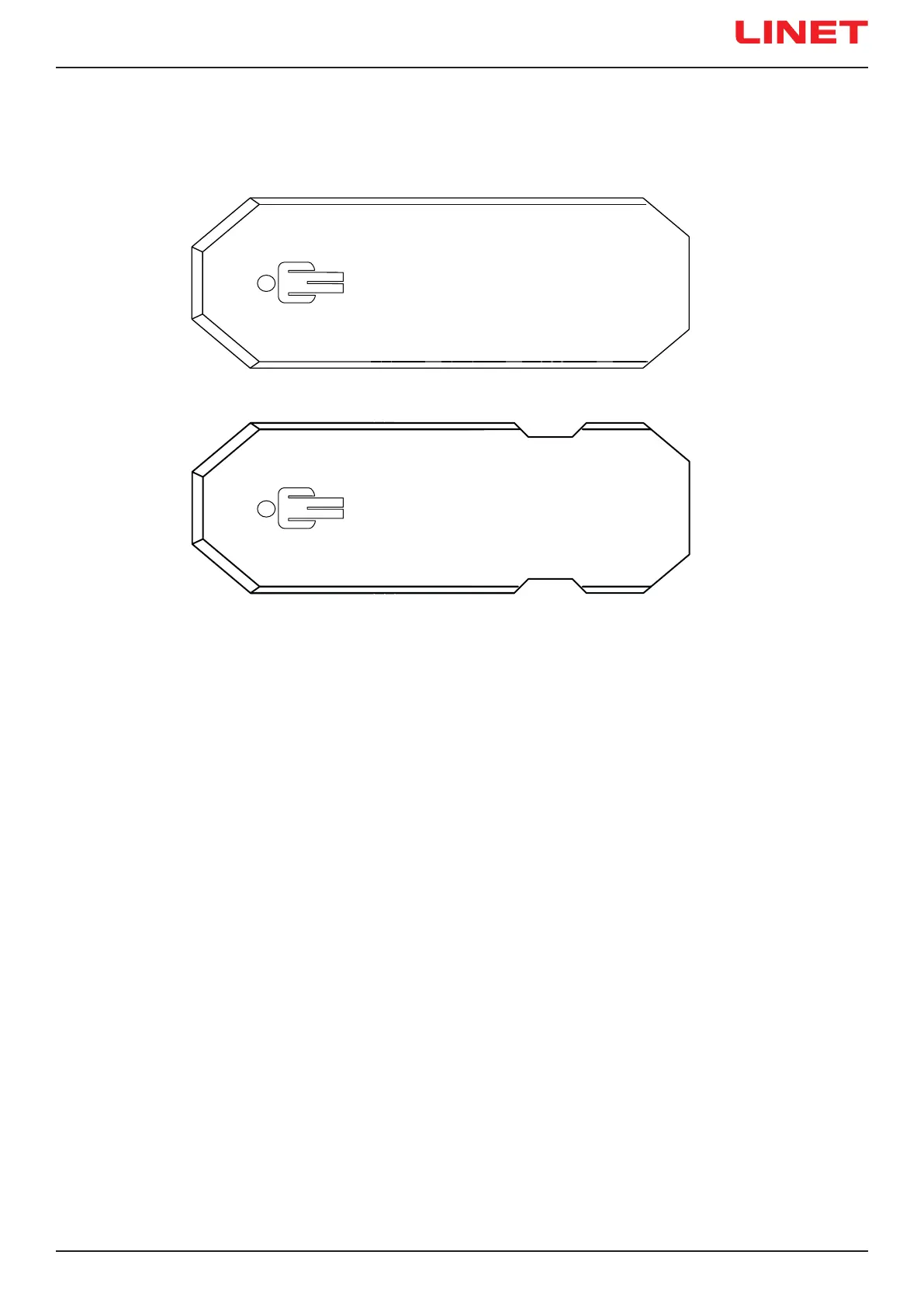

Fig. Passive Mattress (Sprint 200 with 2-part mattress support platform)
Fig. Passive Mattress (Sprint 200 with 4-part mattress support platform)
14.2 Installation of Passive Mattress
The Sprint 200 passive mattresses are shaped to t the Mattress Support Platform during stretcher positioning.
14.2.1 Strap with side release buckles
The Sprint 200 passive mattresses can be equipped with strap with buckles to x mattress on the Mattress Support Platform.
To x mattress on the Mattress Support Platform:
► Run both parts of the strap through the two holes in the Calfrest cover.
► Lock the side release buckle by connecting its male and female part together.
To remove mattress from the Mattress Support Platform:
► Release the buckle by pressing it from both sides and by disconnecting its male and female part.
► Pull both parts of the strap out of the two holes in the Calfrest cover.
► Remove mattress from the Mattress Support Platform.
