CHAPTER 3A ENGINE 260/ 300 / 400 cc ATV SERVICE MANUAL09.0
CHAPTER 3 ENGINE PAGE. 3A- 47
3. Install:
zSpacer c
zSlider d
zCam e
zPrimary sliding sheave cap.

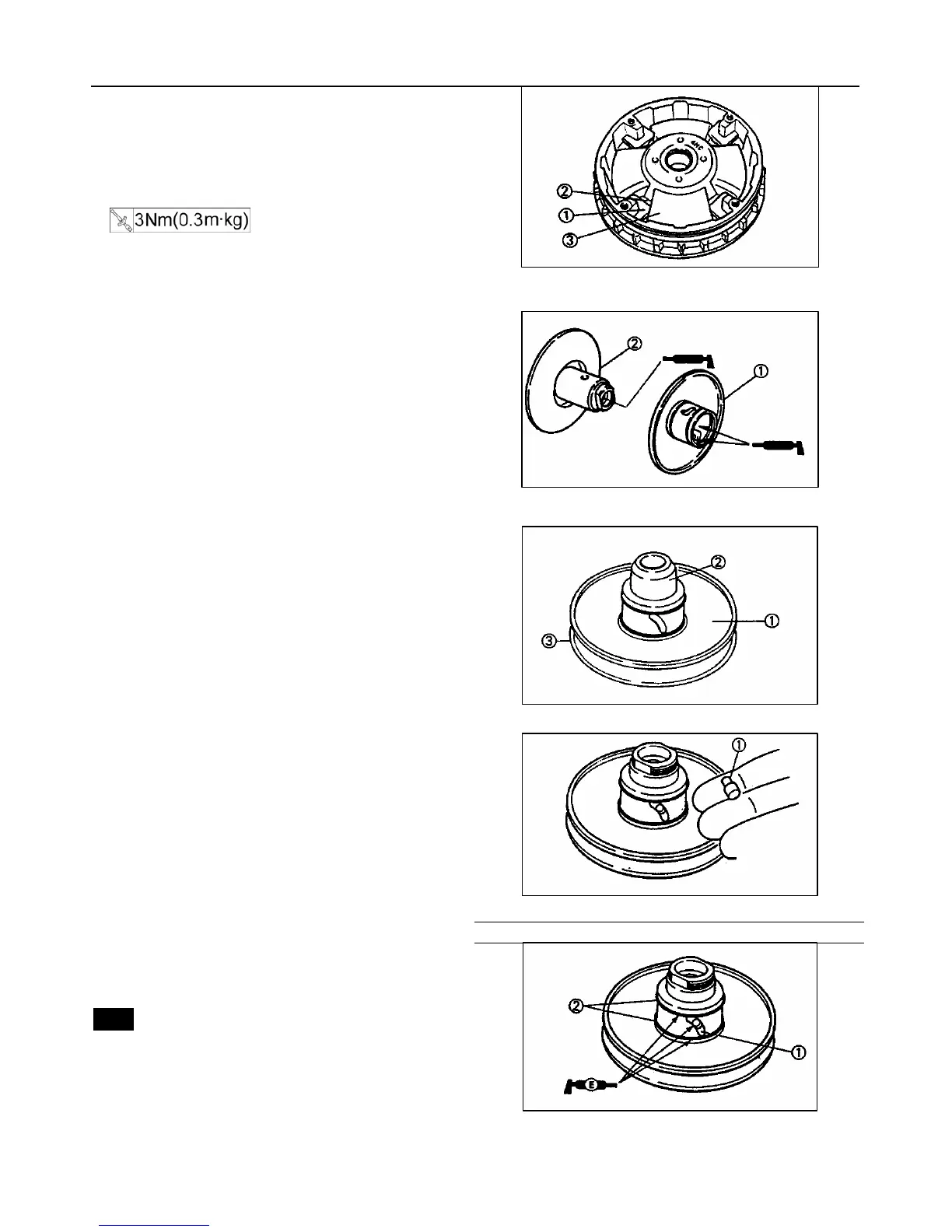

SECOMDARY SHEAVE INSTALLATION
1. Apply:
zLightweight lithium-soap base grease
(to the secondary sliding sheave c inner
surface, grease nipple groove, and oil seals)
z Lightweight lithium-soap base grease
(to the bearings, oil seals and inner surface of
the secondary fixed sheave d )
2. Install:
zSecondary sliding sheave c
NOTE:
Install the secondary sliding sheave cusing
the oil seal guide d to the secondary fixed
sheavee.
3. Install:
zGuide pinc
4. Apply:
z Lightweight lithium-soap base grease
(to the guide pin sliding groove c, and oil seal d
NEW）
To Next Page
